75W 24VDC DALI Waterproof Ultra-thin CV Driver UWP75D-1M24V

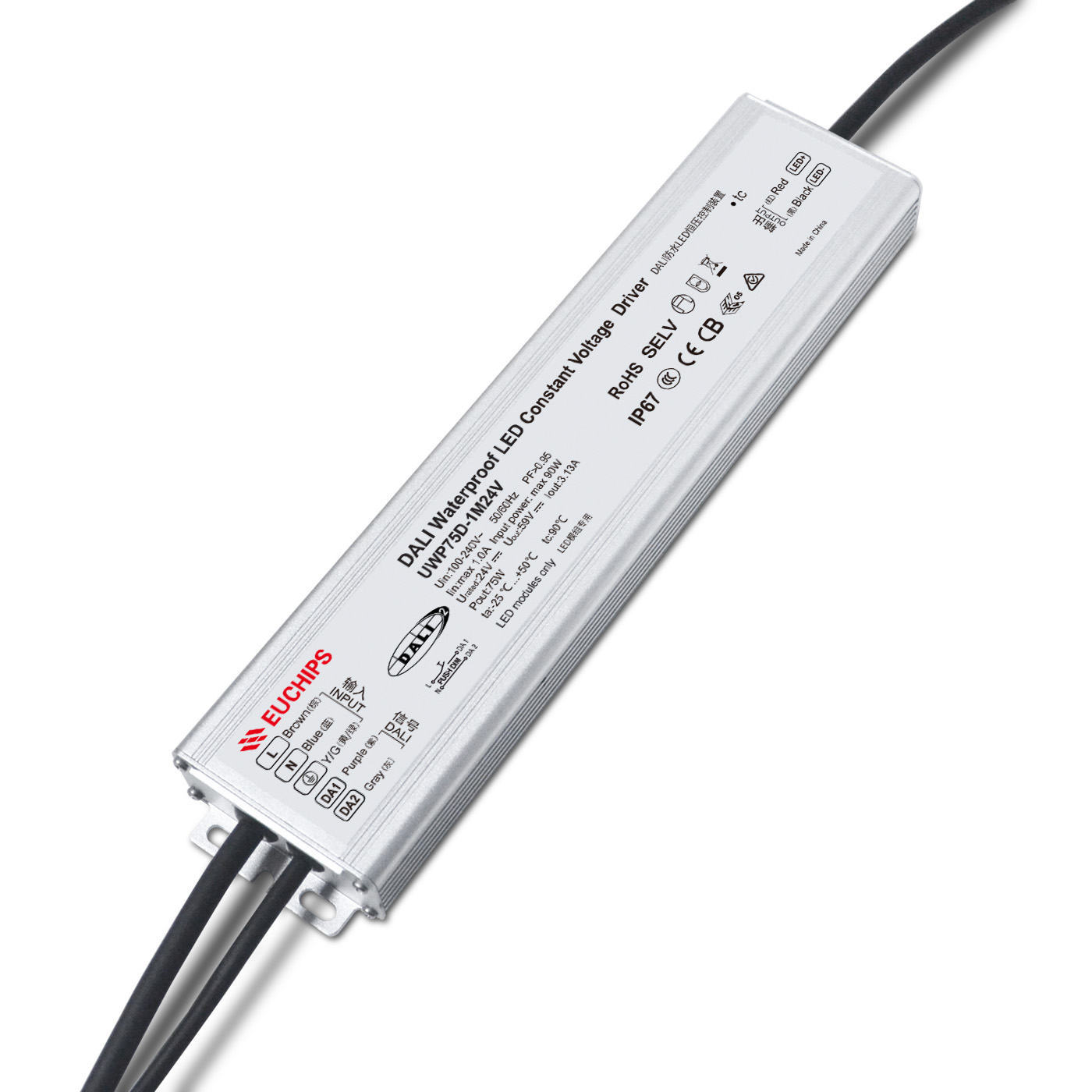

75W 24VDC Ultra-thin Waterproof DALI Constant Voltage Driver UWP75D-1M24V
UWP75D-1M24V is a dimming driver that can provide constant voltage output. Complies with DALI standard protocol IEC 62386. LED driver featuring the dimming by DALI master / Touch DIM(PushDIM) switch, with smooth dimming curve and are flicker free.
Features
1. Single channel output with 24V CV direct current
2. Wide voltage input range from 100VAC to 240VAC
3. with built-in active PFC function
4. Meet DALI protocol IEC 62386-207
5. Support Touch DIM (Push DIM) function
6. Ultra-thin design, waterproof level IP67, high efficiency up to 86%
7. Dimming effect smooth, no flicker
8. Protections: short circuit, over load, over voltage, lightning protection
9. Suitable for LED CV lighting, such as LED module, LED strip light, LED tube, and so on.
Technical Parameters
| Model | UWP75D-1M24V | |
| Input | Efficiency | 86%@230VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.95@230VAC, Full load | |
| THD | <10%230VAC, Full load | |
| Standby power | <0.5W | |
| Current | 1Amax@100VAC | |
| Inrush Current | Cold start 50A(measured50% Ipeak twidth=60us) @230VA | |
| Output | Voltage | 24VDC |
| Current | 3.13A | |
| Power | 75W | |
| Voltage Tolerance | ±2% | |
| Over voltage protection | 25-36VDC | |
| Ripple and noise(max) | <120mVp-p | |
| Channel | 1 | |
| Protection | Short Circuit | Close output，recovers after fault condition is removed |
| Over Voltage | Colse output recovers automatically of fault after restart | |
| Over Load | Hiccup, recovers after fault condition is removed | |
| Safety&EMC | Surge | L-N: 2kV,L,N-PG:4kV |
| Withstand Voltage | I/P-O/P:3000VAC/5mA I/P-PG:1500VAC/5mA O/P-PG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Eission | EN50515, EN61000-3-2 Class C, IEC61000-3-3, GB/T17743 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
| Function | Dimming mode | DALI/Touch DIM(Push DIM) |
| Dimming range | 0.1%-100% | |
| DALI standard | IEC62386-101, IEC62386-102, IEC62386-207 | |
| Others | Working Temp. | -25℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Aviation aluminum | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 820g±5%/PCS; 30PCS/Carton; 25.4kg±5%/Carton; Carton Size: 415*286*168mm (L*W*H) | |
| Dimension | 270*61*25mm(L*W*H) | |
