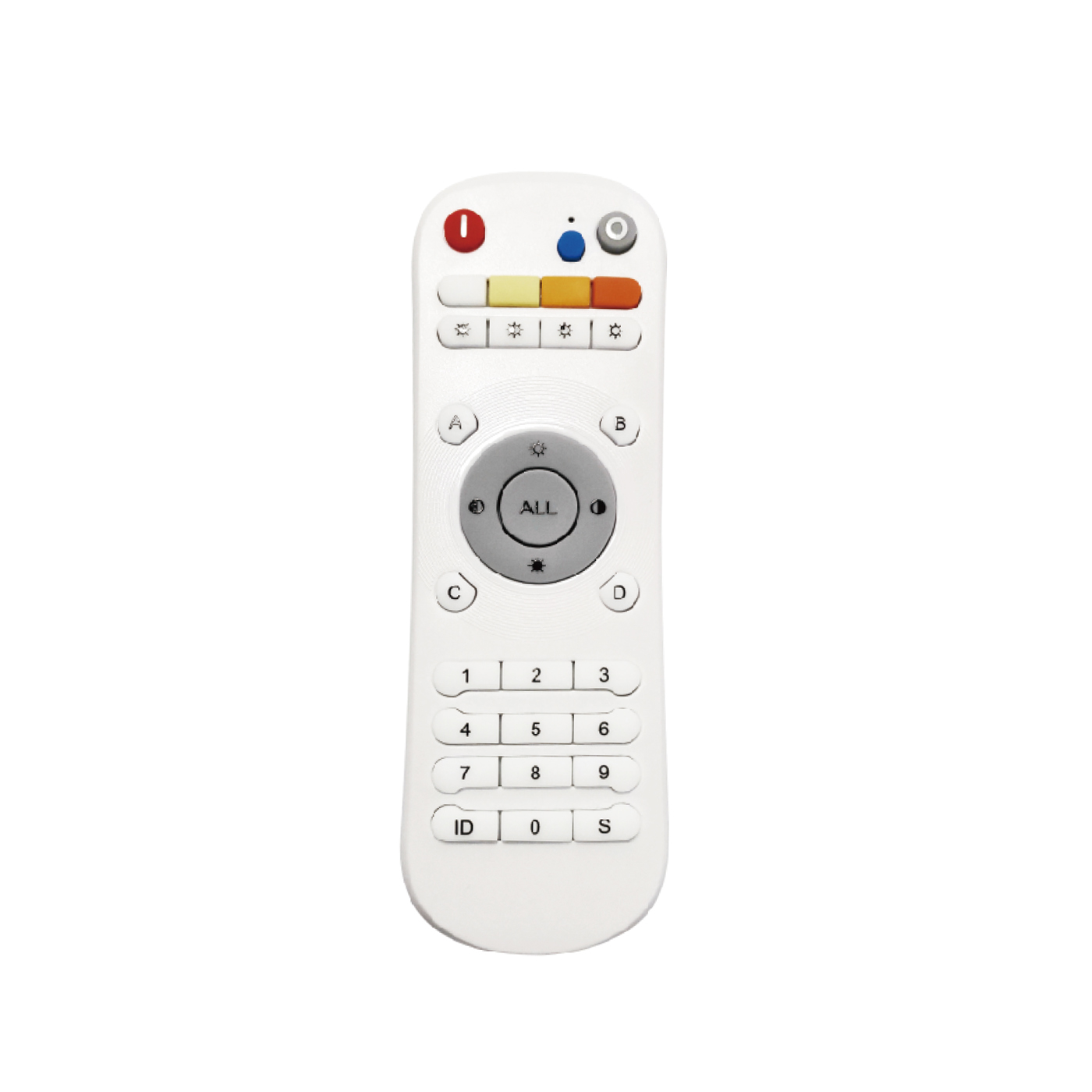

Remote Control RC-S01-BT

Remote Control RC-S01-BT

Features

Single control master control, switch, brightness adjustment, color matching, four scenes, cycle demonstration, RGB color adjustment, four color mode, remote control copy, remote control identity setting. Effective distance of remote control≤30m

1. Code Matching
1.1 Block pair code

Step 1: operate steps 2-3 within 10 seconds after the lamp is powered on;

Step 2: press the number between 0 and 99 to set the lamp ID number, and then press the ”  ” key;

Step 3: repeat step 2, the light flashes once to complete the code matching.

Note: one remote controller can control up to 100 groups of lights, and there is no limit to the number of lights in each group.

One lamp can be matched with two remote controllers with different identities at most. When it is matched with the third remote controller, the first one will be automatically covered.

1.2 code matching without grouping

(it can be controlled by pressing any number after code matching) within 10 seconds after the lamp is powered on, press the “ ” key continuously, and the lamp will flash once to complete code matching.

2.1 single control: first press the identification number of the lamp, and then press the corresponding function button.
2.2 master control: first press ” ” key, then press corresponding function key.

3. Dimming and temperature adjusting function

3.1 Four scenes: Four kinds of scenes can be preset, and the following are factory preset
scene states.

3.2 Scene setting

4. RGB color function

5. Remote control identity setting function

6. Manufacturer function (check code before setting)
