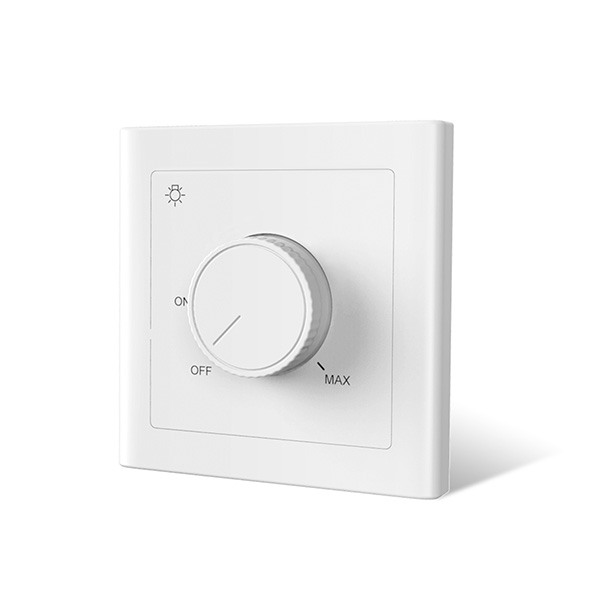

  • 1-10V Dimmer Walldim103E1

    1-10V Dimmer Walldim103E1

    1-10V Dimmer Walldim103E1   Feature 1. Suitable for 1-10V LED dimming driver with passive signal support 2. Installation in the European and domestic electrical box 3. Can switch off the signal and power supply at the same time 4. ABS material, high flame retardant 5. Fashion, and easy to use 6. Used in the study, bedroom, restaurant, bars and other places need dimming control Technical Parameter   Model Walldim103E1 Output Variable resistance signal Control output load capac...
    detail
  • 90-265V 50mA*1ch Touch Panel Controller WALLDIM200

    90-265V 50mA*1ch Touch Panel Controller WALLDIM200

    90-265V 50mA*1ch Touch Panel Controller WALLDIM200 Walldim200 is one of our high-end, multi-function WallDim touch panel controller series, with characteristics of fashionable and beautiful appearace, complete functions, easy operations, sensitibe key touch panel, 0-10V signal contreol and various forms. It is mainly used to connect LED 0-10V DIM controller. It can realize 0-10v smooth dimming according to different requirements. Technical Parameters Supply voltage AC90-265V Output volta...
    detail
  • 15-48VDC 150mA*1ch 0-10V Multi-function Touch Panel Controller WALLDIM201

    15-48VDC 150mA*1ch 0-10V Multi-function Touch Panel Controller WALLDIM201

    15-48VDC 150mA*1ch 0-10V Multi-function Touch Panel Controller WALLDIM201 WALLDIM201 is one of our high-end multi-function Walldim touch panel controllet serirs, with characteristics fashionable and beautiful qppearance, complete functions, easy operations, sensitive key touch, o-10v signal controller and various forms. It is mainly used to connect LED 0-10V DIM controller. It can realize 0-10V smooth dimming according to different requirements. Technical Parameter Supply voltage 15-48VDC ...
    detail
  • 12-15VDC 50mA*2ch 0-10V Touch Panel Controller Walldim202

    12-15VDC 50mA*2ch 0-10V Touch Panel Controller Walldim202

    12-15VDC 0-10V Multi-function Touch Panel Controller Walldim202   Walldim202 is one of our high-end, multi-function Walldim touch panel controller series, with characteristic of fashionable and beautiful appearance, complete functions, easy operations, sensitive key touch, 0-10V signal controller and various forms. It is mainly used to connect LED 0-10V DIM controller. It can realize 0-10V smooth dimming according to different requirements. Feature 1. Supply voltage of 12-15VDC 2. Output...
    detail

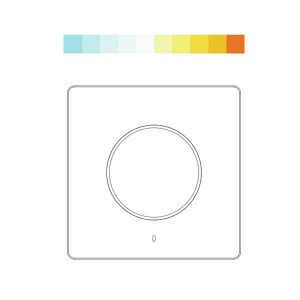

  • 0-10V Tunable White Dimmer Walldim203

    0-10V Tunable White Dimmer Walldim203

    0-10V Tunable White Dimmer Walldim203   Model WALLDIM203 Product No. 403400020201 Input Voltage 110-240V AC 50-60Hz Output Current 2CH×50mA Output Signal 1-10V×2CH Working temp. -10℃~45℃ Relative humidity 20~90%RH N.W. 127g G.W. 152g Dimension(mm) 86×86×57.5
    detail

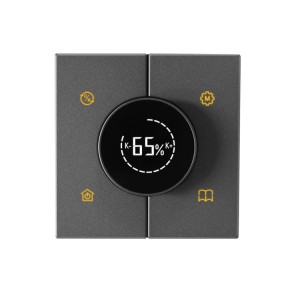

  • 0-10V Rotary Knob Panel Walldim204

    0-10V Rotary Knob Panel Walldim204

    0-10V Rotary Knob Panel Walldim204 Features · Support RS485 communication mode. · Direct control of the corresponding device through the key switch. · The scenario mode can be realized by connecting to a third party gateway Technical Paramaters Input Voitage、Frequency Range(Hz) 100-242V~, 50/60Hz Standby power ≤1W Storage Temp. -25℃~+70℃ Working Temp. -10℃~+45℃ Working Humidity ≤95RH ( No condensation) Output control method 0-10V
    detail
