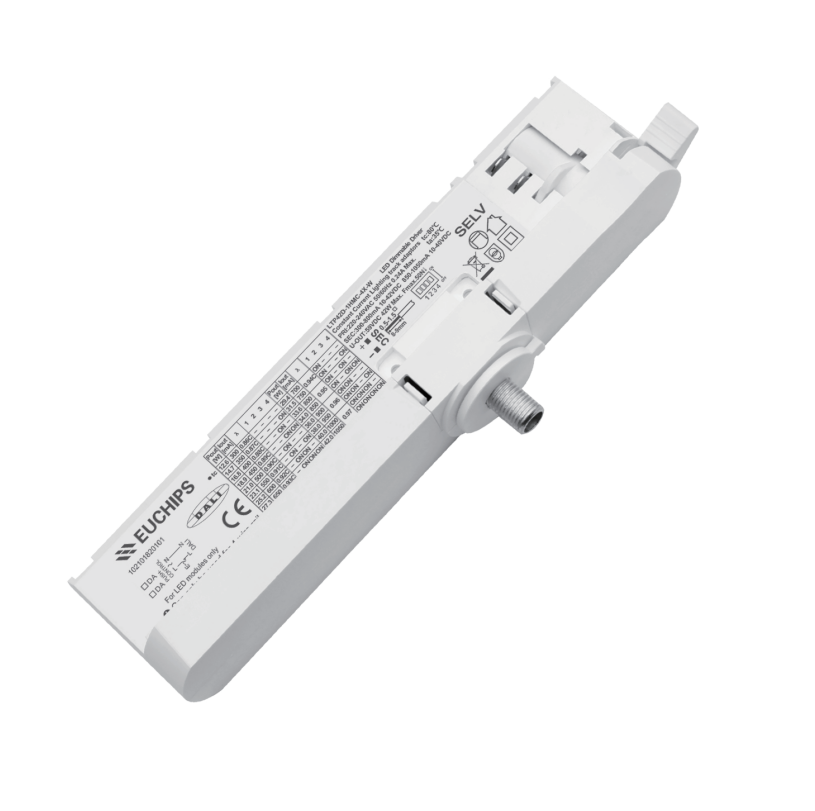

42W 300~1050mA DALI CC Driver LTP42D-1HMC-4X-W B G
42W 300~1050mA DALI CC Driver LTP42D-1HMC-4X-W B G
Features
· The housing is made from V0 flame retardant PC materials from COVESTRO.
· Small size and light weight. Wide range of applicable lamps.
· Class 2 LED driver, Safety Extra Low Voltage (LVLE).
· Innovative thermal management technology intelligently protects the life of the LED driver.
· Overheat, overload, short circuit protection and automatic recovery.
· Up to 50,000-hour life time.
· 5-year warranty (AiSHi capacitor).
Technical Parameters
| Model | LTP42D-1HMC-4X-W LTP42D-1HMC-4X-B LTP42D-1HMC-4X-G | ||||
| Input | Efficiency | ≥88% (230VAC, full load) | |||
| Rated Input Voltage | 220VAC-240VAC | ||||
| Range of Input Voltage | 198-264VAC | ||||
| Range of D C Input Voltage | 180 -280VDC | ||||
| Frequency Range(Hz) | 50/60Hz | ||||
| Power | ≤48.2W (230VAC, full load) | ||||
| Power Factor | ≥0.97 (230VAC, full l oad) | ||||
| THD | ≤10% (230VAC, full load) | ||||
| Overvoltage protection | 2h@380VAC, 48h@320VAC | ||||
| Input Current | ≤0.24A (120VAC, full load) | ||||
| No-load Power Consumption | ≤0.45W @230VAC | ||||
| Inrush Current | ≤18A/2.8us (120VAC，full load) | ||||
|
Connected quantity of 10A Breaker
Connected quantity of 16A Breaker
Connected quantity of 20A Breaker
|
11pcs/type A ;17pcs/type B ; 28pcs/type C @ 230Vac
18pcs/type A;27pcs/type B ; 44pcs/type C @ 230Vac
22pcs/type A;33pcs/type B ; 55pcs/type C @ 230Vac
|
||||
| Current(mA)/Voltage (VDC)Power(W) |
300mA/10-42V/3.00-12.60W 350mA/10-42V/3.50-14.70W
400mA/10-42V/4.00-16.80W 450mA/10-42V/4.50-18.90W
500mA/10-42VV/5.00-21.00W 550mA/10-42V/5.50-23.10W
600mA/10-42V/6.00-25.20W 650mA/10-42V/6.50-27.30W
700mA/10-42V/7.00-29.40W 750mA/10-42V/7.50-31.50W
800mA/10-42V/8.00-33.60W 850mA/10-40V/8.50-34.00W
900mA/10-40V/9.00-36.00W 950mA/10-40V/9.50-38.00W
1000mA/10-40V/10.00-40.00W 1050mA/10-40V/10.50-42.00W
|
||||
| No Load Voltage | 59VDC Max. | ||||
| Output | Current Ripple(< 120 Hz) | ±3% (Imax-Imin)/(Imax+Imin) | |||
| PstLM | ≤1 | ||||
| SVM | ≤0.4 | ||||
| Current Accuracy | ±5% | ||||
| Started Delay Time | ≤0.8S (230VAC，full load,by DALI system) | ||||
| Protection | Short Circuit Protection | Auto Recovery | |||
| Overload Protection | Auto Recovery (not be hot swap) | ||||
| No-load Protection | Auto Recovery | ||||
| Insulation voltage | 3000V 5mA 60S between P-S | ||||
| Insulation resistance | >100M ohm @ 500VDC | ||||
| Leakage current | < 700µA, I/P to O/P @230V input | ||||
| Standards | Safety Standards | EN61347-1:2015/A1:2021; EN61347-2-13:2014/A1:2017; EN62384:2006/A1:2009; AS 61347.2.13:2018; AS/NZS61347.1:2016; BS EN61347-1:2015/A1:2021;BS EN61347-2-13:2014/A1:2017; IEC 61347-1-1:2015+A1:2017; IEC 61347-13:2014+A1:2016; | |||
| EMC Standards | AS/NZS CISPR 15:2011；AS CISPR 15:2017 ;BS EN IEC 55015:2019+A11:2020;EN 61547:2009； BS EN IEC 61000-3-2:2019; BS EN IEC 61000-3-3:2013+A1:2019; | ||||
| DALI performance | EN 62386-101 (DALI-2),EN 62386-102 (DALI-2) EN 62386-207 (DALI-2, including part 251, 252, 253) | ||||
| Performance | EN62384 | ||||
| Surge | L-N/2KV | ||||
| Environment | Ta/Operation Temperature | -25….+35℃ | |||
| Ts/Storage Temperature | -25….+80℃ | ||||
| Tc/Enclosure Temperature | 80℃ | ||||
| Humidity | 10%. 90%RH | ||||
| Atmosphere | 86-108KPa | ||||
| Construction | Connection Method | Push-in Terminal | |||
| Installation | Independent | ||||
| SEC Wire preparation | 0.5-1.5² | ||||
| Dimension | 178*31.1*46mm (L*W* H) | ||||
| Others | RoHS | Complied to 2011/65/EU | |||
| Life Time | 50000h Tc=80℃ 75000h Tc=75℃ 100000h Tc=70℃ | ||||
| Warranty | 5years, F.R. <10000ppm | ||||
| Remark |
1. All Parameters, if not specified, are measured at 230VAC/50Hz and 25℃ ambient temperature.
2. LED Driver is a component of the luminaires, Luminaires and wire layout will affect the EMC, please check the EMC with end products again.
|
||||
