DMX512 1024ch DMX Live & Stand Alone Controller DMX-P09
DMX512 1024ch DMX Live & Stand Alone Controller DMX-P09

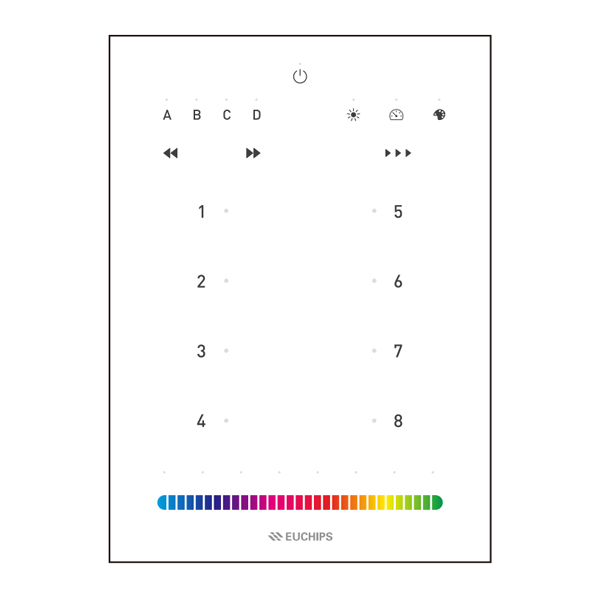

DMX-P09 is a simple and intuitive DMX touch control panel that supports USB, network, RS485, dry nodes, and clock timing controls. Using glass panels, simple and stylish. Eight numeric buttons and four scene pages allow you to select up to 32 light scenes (four pages x8), and color horizontal pushrods are used to adjust light, speed, and color. The DMX-P09 interface is simple and powerful, and it can control all DMX devices at the same time: RGB, RGBW, beam lights, mixed color lamps.
Dmx-p09 can off-line control 2×512 DMX channels, it contains scene editing program, according to different needs can be downloaded through the computer to edit a variety of lighting effects, the control system to achieve R,G,B 256 levels of gray, a total of 16.77 million colors, truly display full color.
Features
· Comply with DMX512/1990 international standard agreement
· 1024 DMX output channels, which can control 340 RGB lamps
· Can adjust full color, color temperature, monochrome and other lamps
· Real-time clock and calendar trigger function
· Programmable and on-line control via USB
· Built-in 8G high-speed memory card for independent control
· 4 external dry contacts and a set of 485 external triggers (RJ45)
· 8 touch scene buttons, 4 scene pages, support 32 offline scenes
· Touch the color/brightness/speed push rod
· The LAN can connect 50 devices and is controlled by UDP/TCP/Http
· It can receive synchronization scene, brightness and speed of DMX-03 and DMX-P08 (main mode) after networking Color control
Technical Parameters
Input Voltage: 5V DC, 0.15A-1A(by USB) / 9-12V DC，0.5A Irrespective of Plus or minus
Power Consumption: < 2W
Connection: USB 2.0 , Ethernet，Plug-in port (power supply)
Output connector: RJ45
Transmission signal: DMX512/1990
Output channels: 1024 DMX channels
Lamp type: Wallwashing light,Tube light, Cube light,etc.
OS Requirement: Windows XP/Vista/Seven/Win10 32/64 1Ghz CPU, 512 MB RAM
PC Software: Euchips X-DMX
Environment: IP20, -25℃ to 70 ℃
Storage space: microSD card, Max. 8GB
