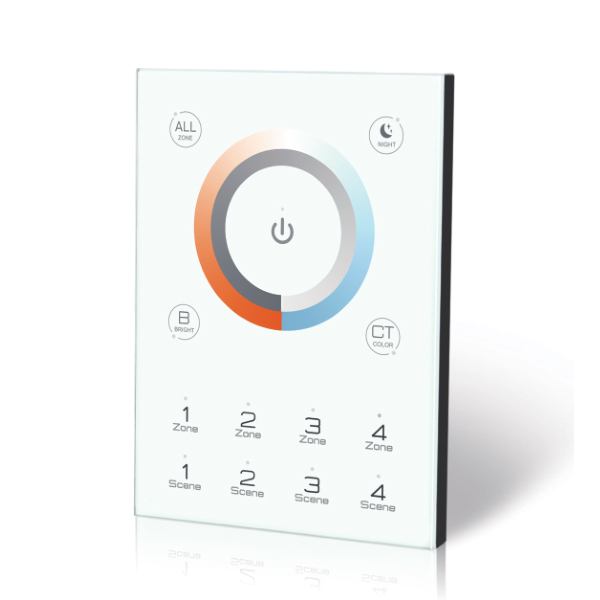

DMX Touch Panel DMX-E02L

Short Description:

  • Item No.: DMX-E02L
  • Size: 86*86*10(mm)

Product Detail

Product Tags

DMX Touch Panel DMX-E02L

Features

·Compliance with DMX512 (1990) International Standard Agreement
·Supporting independent or synchronous brightness control for four regions
·Support real-time adjustment of brightness and color temperature
·High sensitivity glass touch button and adjusting ring, more fine control
·Using glass material, fashionable and beautiful appearance
·Compatible with any DMX lamp or DMX driver
·It can be installed in the wall body, suitable for all kinds of wall boxes.
·The saved scene saves the new scene again, and the original saved scene will be overwritten.
·Support RF function, dimming, color temperature, scene calling, etc

Technical Parameters

Model DMX-E02L
Input Voltage 5VDC
Dimming Type DMX512
Input Power 3-3.5W
Area number 4
Working Temperature 0℃~+50℃
Channels 8
Packing Size 171x145x48(mm)
Dimension 140x106x11(mm)
N.W 220g
Transmission Distance 300m
RF Function Support
