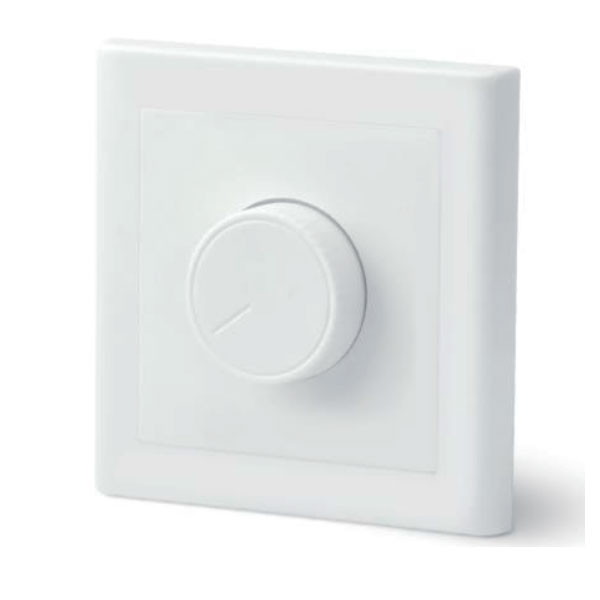

DALI Rotary Knob Dimmer DALI-R01CCT
DALI Rotary Knob Dimmer DALI-R01CCT
Features
1. Follow DALI IEC62386 DT8 standard protocol
2. DALI knob supports brightness and color temperature adjustment
3. Support single-address, multicast and broadcast control modes
4. It has the function of power saving
5. ABS high flame retardant material, high temperature resistance and impact resistance
6. Used in study, bedroom, dining room, bar and other occasions requiring dimming control
7. Suitable for installation in European specifications and domestic electrical boxes
Technical Parameters
| Model | DALI-R01CCT | |
| Input Voltage | Supplied Via Dali Bus | |
| Input Current | 24mA | |
| Control Signal | DALI Signal | |
| Panel color | Ivory-white | |
| Panel size | 86*86*44mm(W*H*D) | |
| Packing size | 104*104*52mm(W*H*D) | |
| G.W. | 140g | |
| Working temp. | -10~55℃ | |
| Relative humidity | 20-90% RH | |
