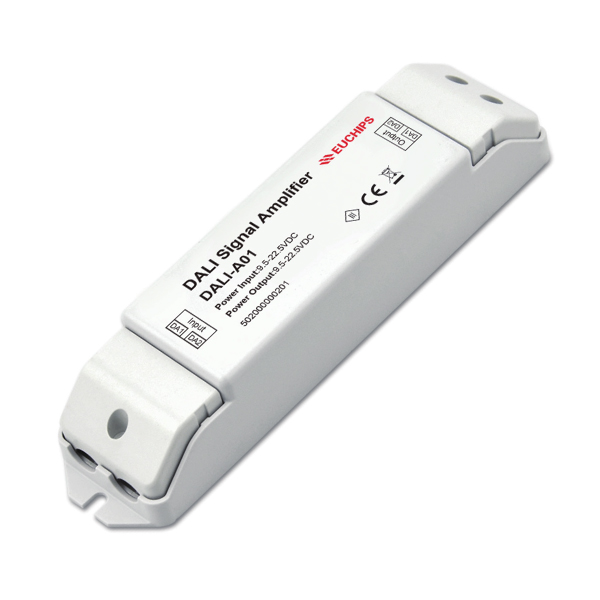

DALI Analog Signal Amplifier DALI-A01
DALI Analog Signal Amplifier DALI-A01
Features
· For amplification of Dali signal drive capability.
· Signal can be amplified to 5 levels multiple times
· Adopt high-quality amplifying devices, with output signal capacity up to 300M
· It is mainly used in situations where the output drive capacity of the main controller is insufficient
Technical Parameters
| Model |
DALI-A01 |
|
| Output | Accuracy Channels | 1 |
| Voltage | 9.5-22.5vDC | |
| Input | Voltage | 9.5-22.5vDC |
| Signal | DALI signal | |
| Others | Dimension | 168*39.4*30 mm（L*W*H) |
| Packing Size | 470*200*220 mm(L*W*H),50pcs/6.0kg/Carton | |
| Working temp | -20℃~40℃ | |
| G.W | 90g | |
| Relative humidity | 20~90% RH | |
