96W 24VDC DALI&0/1-10V CV Driver MUP96AD-1W24V-B
96W 24VDC DALI&0/1-10V CV Driver MUP96AD-1W24V-B

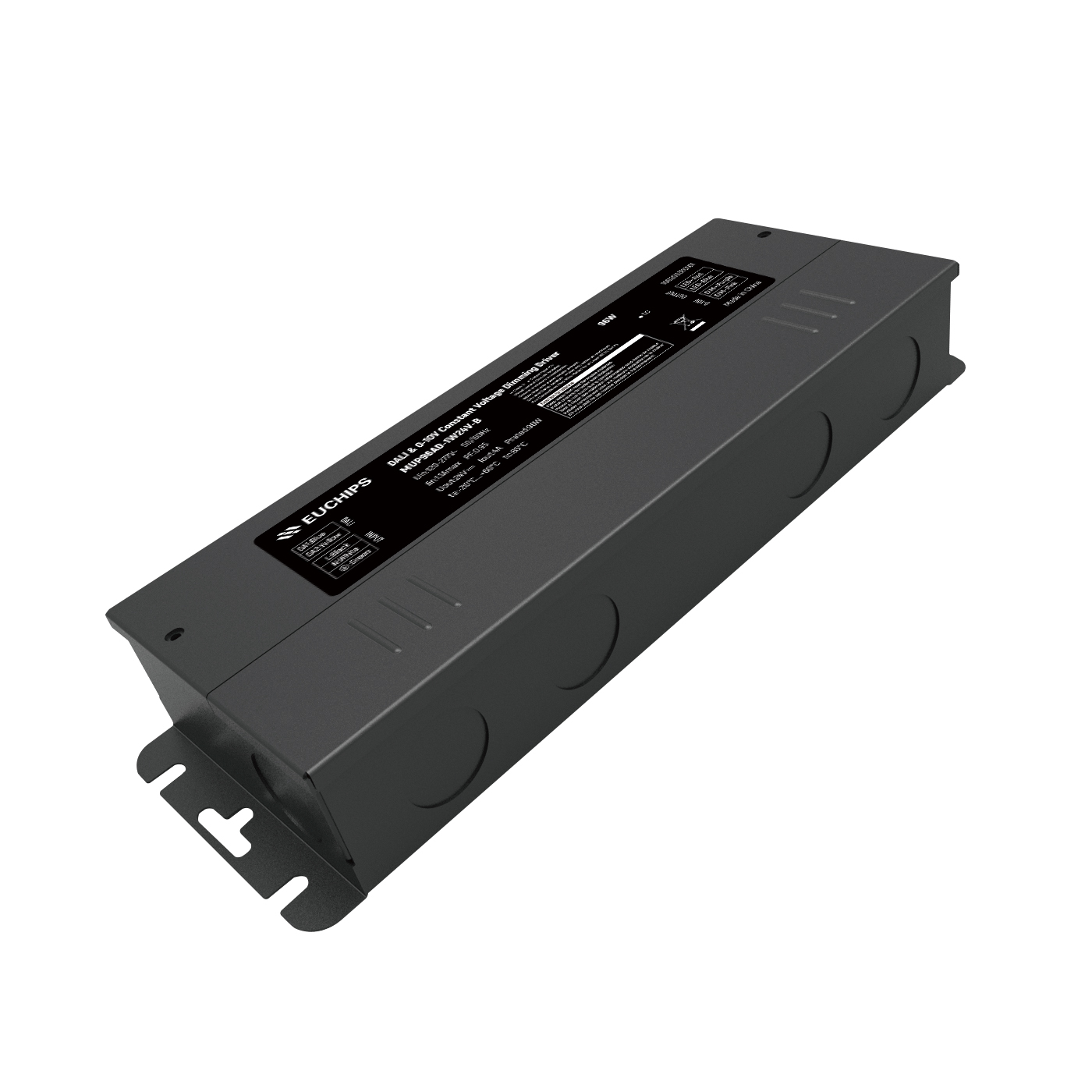

MUP96AD-1W24V-B is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386, and provides DALI,0/1-10V active signal dimming.
Features
· Single channel constant voltage output,4A Max
· Wide input voltage of 120VAC ~ 277VAC
· Dimming range of 0.1-100%, and dimming effect smooth, Flicker free
· 100% output when no dimming signal input, can be used as normal power supply
· Protection: Over load; short circuit; Over Current
· IP20, suitable for indoor LED lighting application
Technical Parameters
| Model | MUP96AD-1W24V-B | |
| Input | Efficiency | ≥88%@120VAC, ≥90%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 1.1Amax@120VAC, 0.6Amax@230VAC, 0.45Amax@277VAC | |
| PF | ≥0.98@120VAC, ≥0.95@277VAC, full load | |
| THD | <10%@230VAC, <20%@277VAC, full load | |
| Inrush Current(max) | Cold start,5.6A@120VAC 24us 21.25@277VAC 420us | |
| Standby power | <1W@120VAC | |
| No load power | <1W@120VAC | |
| Turn on delay Time | <0.75s, @120Vac (When the light begins to shine) | |
| Output | Current | 4A |
| Voltage | 24VDC | |
| Voltage Range | 24VDC ±5% | |
| Power | 96W | |
| Channel | 1 | |
| PWM Frequency | 20K Hz | |
| Function | Dimming Type | 0-10V, DALI |
| Dimming Range | 0.1%-100% | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
| Protection | Short Circuit | Close the output and recover after troubleshooting |
| Over Load | Reduce current burp protection, self-recovery after troubleshooting | |
| Over Current | Reduce current burp protection, self-recovery after troubleshooting | |
| Safety&EMC | Surge | L-N 2000VAC L-N-PG 4000VAC |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA O/P-DIM( Signal port ):500Vac/1min/<5mA | |
| Safety standards | UL8750 UL1310 CSA25013.CSA Class P | |
| EMC Eission | FCC PART15B | |
| EMC Immunity | IEC 61000-4-2-3-4-5-6-8-11 | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | -20℃~+60℃ (-4°F-140°F) |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH (-40°F-185°F) | |
| tc | 85℃ (185°F) | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ (185°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 937g (2.06 lb)±5%/PCS; 10PCS/Carton;9.6kg(21.2 lb)±5%/Carton; Carton Size: 254*254*192mm(10*10*7.56 Inch)(L*W*H) | |
| Dimension | 241*81*38mm (9.5*3.2*1.5 Inch)(L*W*H) | |
>
