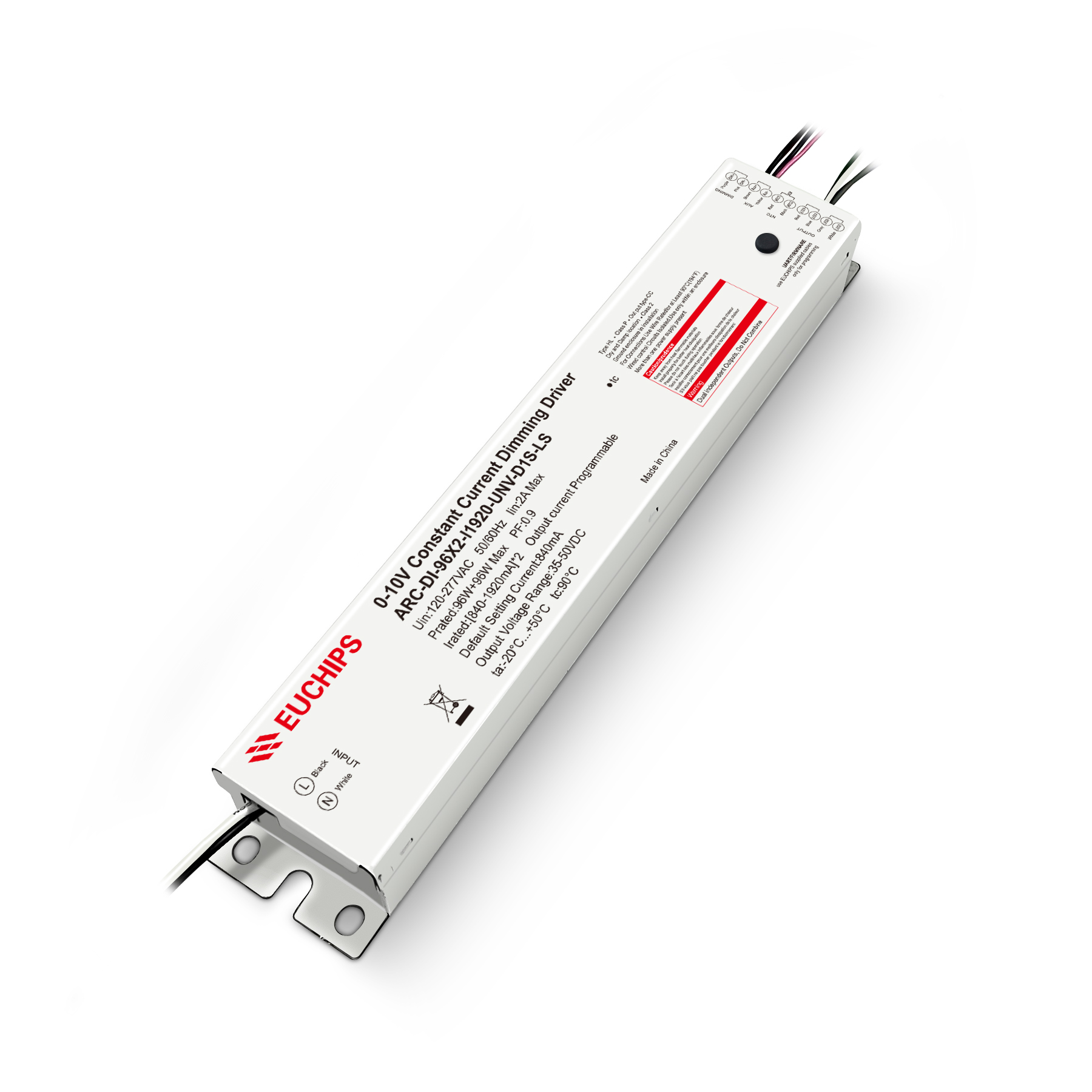

96W 0-10V CC Driver ARC-DI-96X2-I1920-UNV-D1S-LS

Short Description:

Item No.: ARC-DI-96X2-I1920-UNV-D1S-LS
Output Power: 96W

Product Detail

Product Tags

96W 0-10V CC Driver ARC-DI-96X2-I1920-UNV-D1S-LS

Features

· Universal AC Input Voltage(120-277VAC)
· Metal sheet case
· One isolated 0-10V dimming interface
· Flicker free, excellent camera compatibility
· Dual Output, Class2, Class P
· Operating temperature: -20℃~+50℃
· Comply with IEEE1789, UL8750
· Programmable
Output current(1mA step)
Dim to off
· Aux power, 12V/200mA
· ANSI C62.41 Category B 6kV

Technical Parameters

Model NO.	Rated Input Voltage	Max Output power	Default Output Current	Output Current Range	Output Voltage Rated	Aux Power
ARC-DI-96X2-I1920-UNV-D1S-LS	120-277Vac	96W+96W max.	*840mA2**	*(840-1920mA)2**	35-50VDC	12V

INPUT	Parameter	Min	Typ.	Max	Note
	Input Voltage	120Vac	-	277Vac	-
	Input Voltage range	108Vac	-	305Vac	-
	Rated Frequency	47Hz	50/60Hz	63Hz	-
	Input current	-	-	2A	@120Vac full load
	Inrush current	-	-	25A	120Vac, cold start (25℃)
	Power Factor	>0.95	-	-	@120Vac 100% load
		>0.9	-	-	@277Vac 100% load
	T.H.D.	-		<10%	@120Vac 100% load
		-		<15%	@277Vac 100% load
	Efficiency	-	86-88%	-	@120Vac Vout=50V, Iout=1920mA, steady state
		-	88-90%	-	@277Vac Vout=50V, Iout=1920mA, steady state
	Turn On Delay Time	-	-	0.75S	Cold Start, @120VAC

Output	Parameter		Min	Typ.	Max	Note
	Programmable Output Current		840mA	-	1920mA	Per Channel
	Output current tolerance		-	-	5%	1500-1920mA
	Output Voltage		35V	-	50V	The derating begins when the input voltage is less than 108 ±10%Vac
	Output Power		-	-	192W	Total Power, See “Operating window”
	Line Regulation		-	-	3%	-
	Load Regulation		-	-	5%	VOUT from MIN. to MAX.
	Ripple Current		-	-	10%	Full Load, (Iomax-Iomin)/(Iomax+Iomin)
	Output Current Overshoot		-	-	10%	Turning Power ON
0~10V or Resistor Dimming	Dimming Curve		Linear. please see “Dimming curve”.
	Source Current on 0~10V Dimming Pin		-	200uA	-	-
	Light Off		-	0.7±0.1V	-	-
	Dimming Voltage for Full Bright		-	8.5V	-	-
	Dimming Range		1%	-	100%
	External Resistor Value at Full Bright		-	100	-	kΩ
	Leakage Voltage		-	-	20	Voltage between DIM- and Ground
Programming	The driver can be programmed through Programming Port. ·Output current(1mA step) ·OTP point of driver, LED thermal protection
	Programming Port	the driver can be easily connected to a digital control system, to set the driver(eg: output current , dimming level, and so on).
		Programming software	EU Configure Tool
		Programming tool	EU-PROG
		Operating voltage	-	5V		-
Auxiliary source	Output Power		-	-	2.4W	-
	Output Voltage		-	12VDC	-	-
	Voltage tolerance		-	-	8%	-

Protection	Parameter	Min	Typ.		Max	Note
	Over Voltage Protection	-	-		60V	Recover automatically after fault conditions is removed.
	Over Temp. Protection	-	90℃		-	Programmable. Current foldback at hotspot greater than TOTP
	Short Circuit Protection	Recover automatically after fault conditions is removed.
Environment	Storage Temperature	-40℃	-		85℃	Total Power, See “Operating window”
	Ambient Operating Temperature (ta)	-20℃	-		50℃
	Max. Case Temperature (tc)	-	-		90℃	Hot spot on case
	Operating Relative Humidity (Ha)	10%	-		90%	Non-Condensing
	Acoustic Noise	-	-		24dBA	Measured from 1 m w/o dimmer.
	Cooling	Convection Cooling
	IP Rating	Dry and damp UL approved
Others	Life Time	50kHrs		-	-	Full Load, 80℃ case temperature,
	MTBF	200kHrs		-	-
	Warranty	5 Years Warranty at Tc ≤80°C
	Flicker	IEEE 1789,Title 24
Safety Compliance	CUL/UL	UL8750, CAN/CSA-C22.2 No. 250.13

Electromagnetic Compliance	EMC Requirements	Standard	Conditions
	EMI Emissions	FCC Title 47 Part 15B	Class A
	Voltage Fluctuations and Flicker	IEC61000-3-3
		IEC 61000-4-2	±8kV air Discharge, ±6kV Contact Discharge
		ANSI C82.77-2015	Category B, 6kV，Comb wave
		IEC 61000-4-11	>95% dip, .5 period; 30% dip, 25 periods; 95% reduction, 250 periods
		IEC 61000-4-4	± 2kV Direct couple to Line input, 5kHz repitition rate, 15mS duration, 300mS period. 7 coupling paths, 1 minute per path (14 total combinations)
Note: Unless otherwise specified, all the above parameters are measured at ambient temperature of 25℃ and rated voltage.
