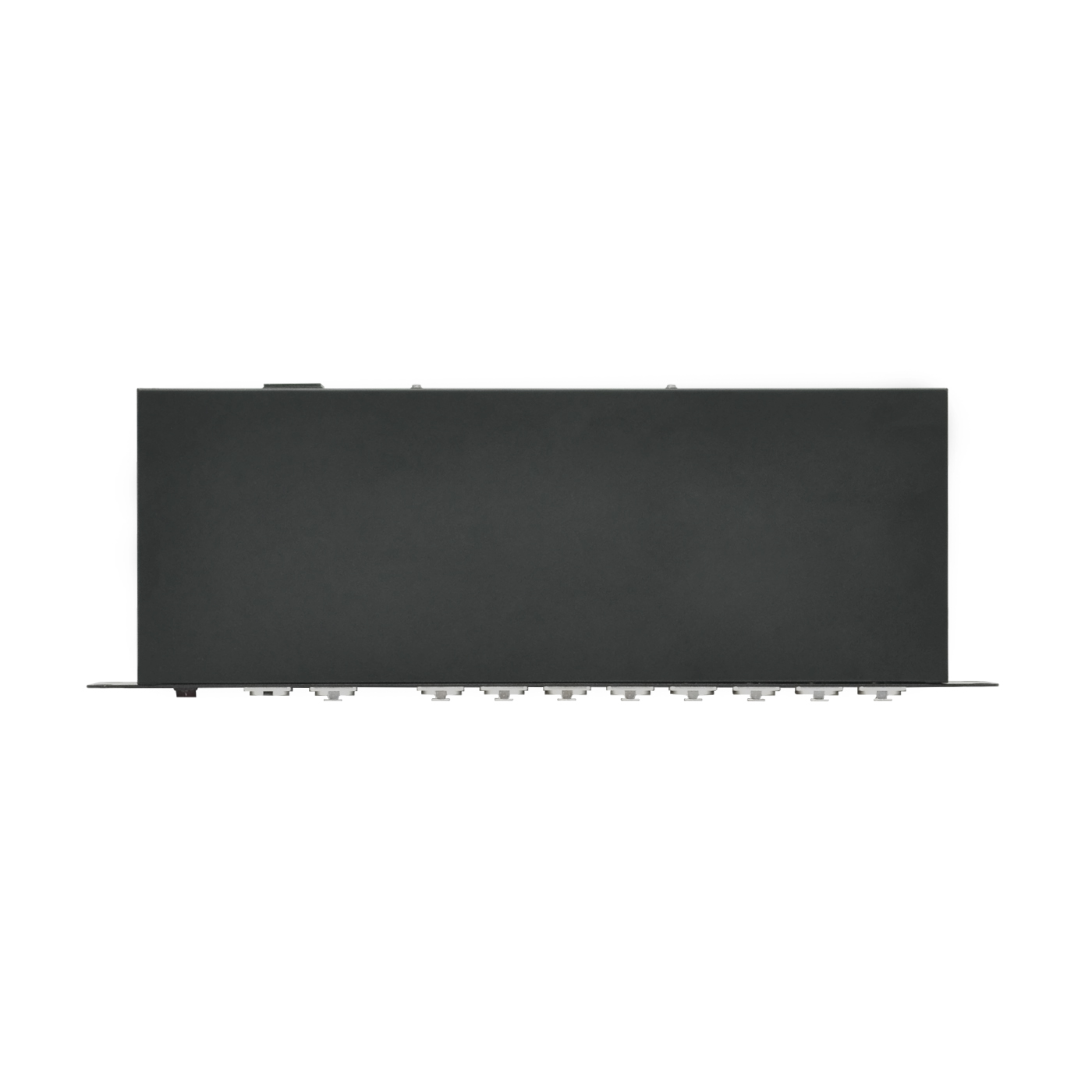

90-240VAC DMX Splitter DMX108

90-240VAC DMX Splitter DMX108

Summary

DMX108 is a digital signal splitter. It dedicated to the DMX512 digital lighting controller signal shaping and amplification, It adopts the high voltage isolation technique in various in-out interfaces. That is to say it doesn’t only apply to be as the processing amplifier while the DMX 512 signal attenuation due to the remote data transmission, but also it can be used in which the various in-out interface need to be elec tric isolated. Since the various interfaces are isolated by each other, which is easy to avoid the control system damage caused by the control wiring, digital dimmer.etc and make the control system work well. And also it made sure the DMX signal is in regular transmission so that the reliability of the whole control system was raised.

Technical Parameter

Input signal interface：three-pin gold-plated XLR male and female sockets parallel
Output signal interface：three-pin gold-plated XLR female sockets parallel
1 Channel for signal input, 8 Channel signal output through electric isolation
Input Power：90V-240VAC
Frequency: 50HZ-60HZ
Product Size: 483(L)*255(W)*45(H) mm
G.W：2900g
