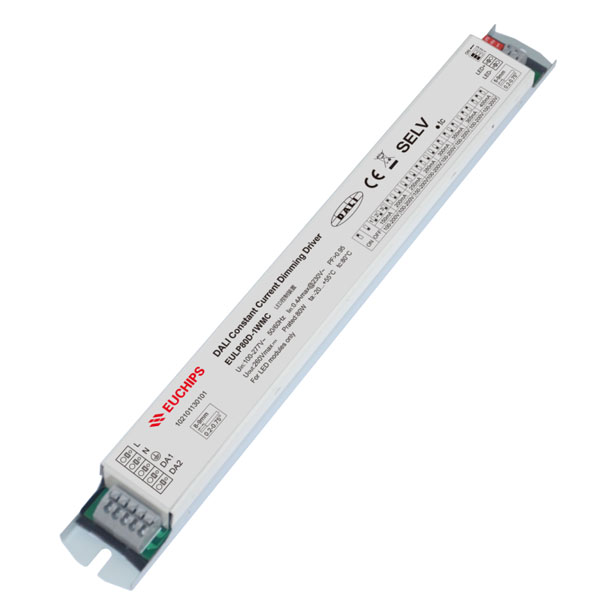

80W 150~400mA*1ch DALI CC Driver EULP80D-1WMC
80W 150~400mA*1ch Constant Current DALI Driver EULP80D-1WMC
EULP80D-1WMC is a 80W AC/DC constant current mode output LED driver featuring the multiple levels selectable by switch. The driver is a non-isolate product.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Wide input voltage of 100VAC~277VAC
3. High efficiency up to 89%
4. Meet DALI-2 standard
5. Logarithmic dimming, dimming effect smooth, no flicker
6. Protections: No load, short circuit, Over Load, Over voltage
7. Suitable for indoor LED lighting application, vapor light, and so on
Technical Parameters
| Model | EULP80D-1WMC | |
| Input | Efficiency | 89%@100VAC, Full load |
| Voltage | 100VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.95@230VAC, Full load | |
| THD(full load) | <20%@230VAC, Full load | |
| AC Current(max) | 0.4Amax@230VAC | |
| Standby power | <1.5W | |
| Inrush Current(max) | Cold start, 70A(twidth=560us measured at 50% Ipeak)@230VAC | |
| Output | Current(mA)/Voltage (VDC)Power(W) | 150mA/100-200VDC/15-30W 250mA/100-200VDC/50W 300mA/100-200VDC/60W 365mA/100-200VDC/73W200mA/100-200VDC/40W 280mA/100-200VDC/54W 350mA/100-200VDC/70W 400mA/100-200VDC/80W |
| Ripple Current | <2% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| Linear Regulation Rate | ±5% | |
| Load Regulation Rate | ±5% | |
| No load output voltage | 260Vdc | |
| Turn on time | <1s | |
| Function | Dimming Mode | DALI |
| Dimming Range | 1-100% | |
| Protection | Short circuit | Under no-load state, the output voltage of the power supply is clamped within 80V, and the power supply is restarted to normal. |
| No Load | Output belch in short circuit state, remove the fault and return to normal automatically. | |
| Over Load | Under Over-load state, the output voltage of the power supply is clamped within 80V, and the power supply is restarted to normal. | |
| Over Voltage | Under Over Voltage state, the output voltage of the power supply is clamped within 80V, and the power supply is restarted to normal. | |
| Safety&EMC | Surge | L-N 1kV(Ring wave) , L&N-G 2kV(Ring wave) |
| Withstand Voltage | I/P-GND: 1500VAC/1min/5mA | |
| DALI Standard | EN 62386-101 (DALI-2), EN 62386-102 (DALI-2), EN 62386-207 (DALI-2) | |
| Safety Standards | EN61347-1, EN61347-2-13, UL8750 | |
| EMC Eission | EN61000-3-3, EN61000-3-2, EN61547 | |
| EMC Immunity | EN55015, FCC Part 15 Class B | |
| Others | Working Temp. | -20°C~+55°C |
| Storage Temp.; Humidity | -25°C~85°C, 5-95%RH | |
| Tc | 80℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: –g±5%/PCS; –PCS/Carton; –kg±5%/Carton; Carton Size: –mm(L*W*H) | |
| Dimension | 280*30*21mm(L*W*H) | |
