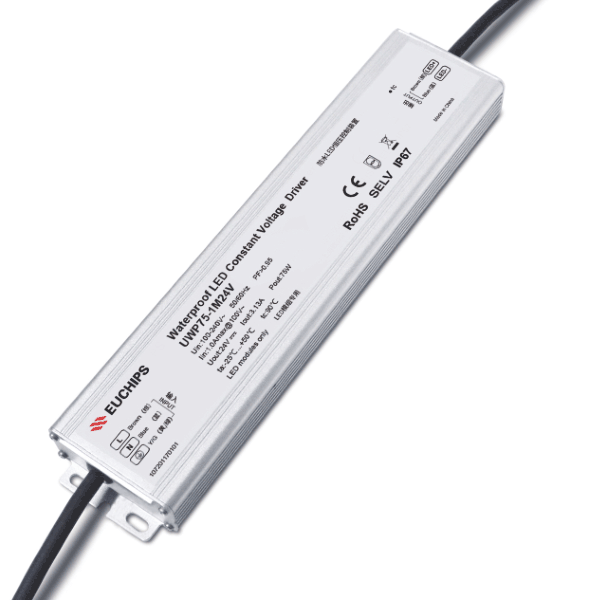

75W 24VDC Non-dimmable Waterproof Ultra-thin CV LED Driver UWP75-1M24V
75W 24VDC Non-dimmable Constant Voltage LED Driver UWP75-1M24V
Features
1. Wide input voltage with active PFC,full loading output
2. Ultra-thin design,save install space
3. Adapt to the harsh working environment
4. Isolated design, safe and reliable
5. Protections: overload, over temperature short circuit, lightning protection etc.
6. Conformed with CE/CB/CCC/SELV certification.
7. ·The typical efficiency up to 89%
8. Protect level IP67
9. Warranty 5 years
Technical Parameter
| Model | UWP75-1M24V | |
| Input | Efficiency | 89%@220VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 47~63Hz | |
| Power Factor | >0.95 | |
| Current | 1Amax@240VAC， Full Load | |
| THD | <10%@230VAC, Full Load | |
| Inrush Current | Cold start <50A @240VAC(full load) | |
| Output | Current/Voltage/Power | 3.13A/24VDC/75W |
| Ripple Current | <120mVp-p | |
| Channel | 1 | |
| Voltage Tolerance | ±2% | |
| Protections | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <36VDC Shut down the output, After restart recovers automatically | |
| Over Current | <4A auto recovery when failure is removed | |
| Safety&EMC | Surge | L-N:2kV,L,N-FG:4kV |
| Withstand Voltag | I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
| Others | Working temp. | -25℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@ta:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 820g±5%/PCS; 20PCS/Carton; 17kg±5%/Carton; Carton Size: 325*315*195mm (L*W*H) | |
| Dimension | 270*61*25mm(L*W*H) | |
