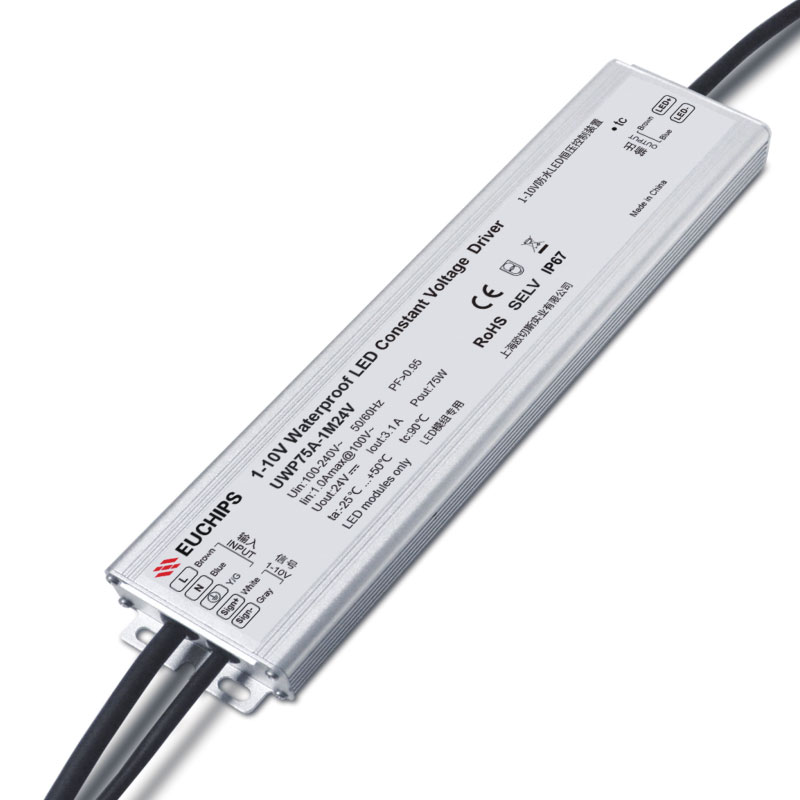

75W 24VDC 0/1-10V Waterproof Ultra-thin CV Driver UWP75A-1M24V

Short Description:

Item No.: UWP75A-1M24V
Input Voltage: 100-240VAC
Output Power: 75W

Product Detail

Product Tags

75W 24VDC Constant Voltage LED Driver UWP75A-1M24V

UWP75A-1M24V is a LED dimmable driver with constant voltage output, it can be used
outdoor and achieve smooth dimming effect through external 0-10V active signal/PWM
signal/adjustable resistor.

Features

1. Single-channel with 24V constant voltage output.

2. Wide voltage input range from 100VAC to 240VAC

3. With built-in active PFC function.

4. Supporting 3-in-1 dimming way (0-10V active signal/adjustable resistor/PWM signal).

5. 1-100% full dimming range,smooth dimming curve,flicker-free,high efficiency up to 86%.

6. Can be used as normal driver when signal suspending,as well as full-load output.

7. Protections:short circuit,over load,over voltage,over temp. and lightning protection

8. Ultra-thin design with waterproof IP67 and applicable to various of LED CV lights.

Technical Parameters

Model	UWP75A-1M24V
Input	Efficiency	86%@230VAC, Full load
	Voltage	100VAC-240VAC
	Frequency	50~60Hz
	Power Factor	>0.95@230VAC, Full load
	THD	<10%230VAC, Full load
	Standby power	<0.5W
	Current	1.0Amax@100VAC
	Inrush Current	Cold start 50A@230VAC
Output	Voltage	24VDC
	Current	3.13A
	Power	75W
	Voltage Tolerance	±2%
	Ripple and noise(max)	<120mVp-p
	Channel	1
Protection	Short Circuit	Close output，recovers after fault condition is removed
	Over Voltage	Shut down the output, After restart recovers automatically
	Over Load	Hiccup, recovers after fault condition is removed
Safety&EMC	Surge	L-N: 2kV,L,N-PG:4kV
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5mA
	Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
	EMC Eission	EN50515, EN61000-3-2 Class C, IEC61000-3-3,
	EMC Immunity	EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1
Function	Dimming mode	1-10V
Function	Dimming range	1%-100%
Others	Working Temp.	-25℃~+50℃
	Storage Temp.; Humidity	-40℃~85℃, 20-90%RH
	Tc	90℃
	Material	Metal
	IP Rating	IP67
	Lifetime	50,000h@tc:90℃
	Warranty Condition	5 years
	Switch Cycle	>25,000 times
	Packing Size	Net weight: 820g±5%/PCS; 20PCS/Carton; 17kg±5%/Carton; Carton Size: 325315195mm (LWH)
	Dimension	2706125mm(LWH)
