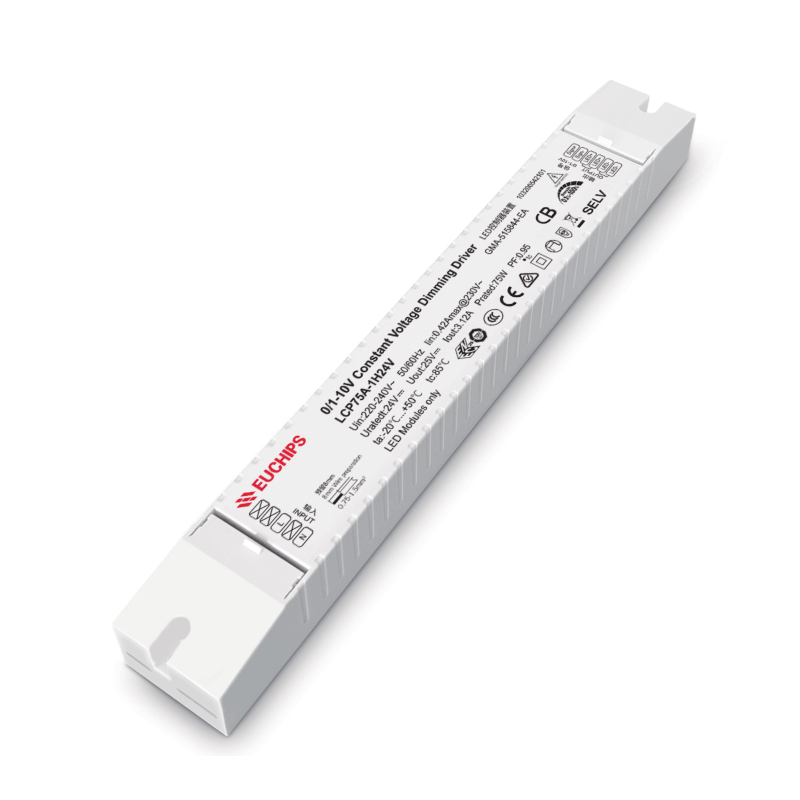

75W 24VDC 0/1-10V CV Driver LCP75A-1H24V
75W 24VDC 3.12A*1ch 220-240VAC Constant Voltage 0-10V Driver LCP75A-1H24V
LCP75A-1H24V is a constant voltage mode output LED driver. This driver can be controlled by external signal (0/1-10V active signal, adjustable resistance and PWM signal) to achieve a smooth dimming effect.
Features
1. Single channel constant voltage output, 3.12A max.
2. High input voltage of 220VAC ~ 240VAC
3. Dimming effect smooth, no flicker
4. Short circuit protection, over load protection, over current protection
5. IP20, Suitable for indoor LED lighting application
Technical Parameters
| Model | LCP75A-1H24V | |
| Input | Efficiency | 89%@230VAC, full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50/60Hz | |
| Current | 0.42Amax@230VAC | |
| PF | ≥0.95@230VAC, full load | |
| THD(full load) | <10%@230VAC, full load | |
| Inrush Current | Cold start,24.7A@230VAC 510us | |
| Standby power | ≤0.5W | |
| No load power | ≤1W | |
| Turn on delay Time | ≤ 0.75 s, at230Vac (When the light begins to shine) | |
| Output | Voltage | 24V |
| Current | 3.12A | |
| Voltage Accuracy | ±5% | |
| Ripple Voltage | ±3% | |
| No load output voltage | 25.2V max | |
| Channel | 1 | |
| Function | Dimming Type | 0/1-10V active signal, adjustable resistance and PWM signal |
| Dimming Range | 0.1%-100% | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
| Protection | Short circuit | No output, troubleshooting output is normal |
| Over load | Reduce current hiccup protection, troubleshoot and output normally | |
| Over Current | Reduce current hiccup protection, troubleshoot and output normally | |
| Safety&EMC | Surge | L-N: 2KVAC |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA I/P-DIM( Signal port ):1500Vac/1min/<5mA O/P-DIM( Signal port ):1500Vac/1min/<5mA | |
| Safety standards | EN61347, GB19510 | |
| EMC Eission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
| Others | Working temp. | ta:-20-50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 85℃ @230VAC, full load | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty | 5 Years | |
| Switch Cycle | >25,000 times | |
| Material | PC | |
| Dimension | 295*40*32mm (L*W*H) | |
| Pack Information | Net weight: 275g±5%/PCS; 50PCS/Carton;14.2kg±5%/Carton; Carton Size: 434*302*174mm(L*W*H) | |
