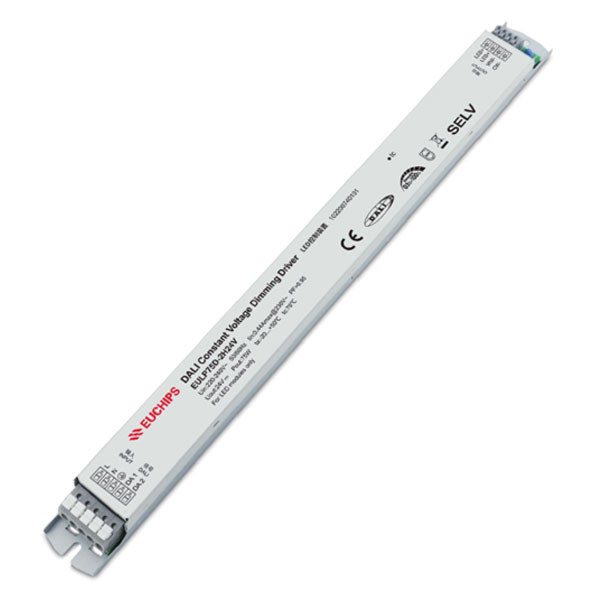

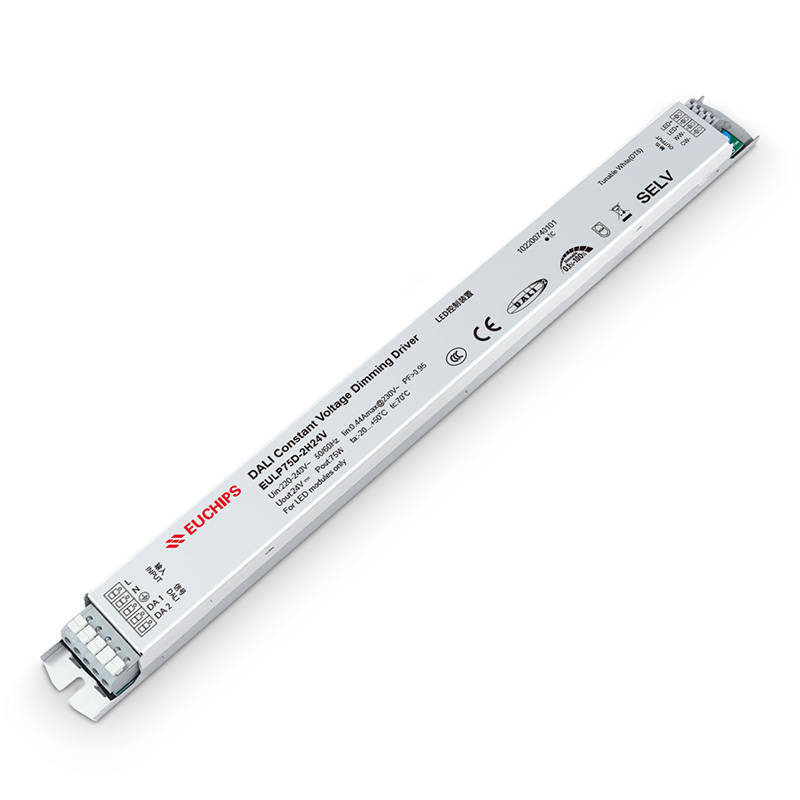

75W 24VDC 2ch DALI CV Driver DT8 EULP75D-2H24V
75W 24VDC 3.125A*2ch CV DALI Driver EULP75D-2H24V
EULP75D-2H24V is a constant voltage mode output LED driver. It supports DALI standard protocol and adjustment of brightness and colour temperature.
Features
· 2 channels of constant voltage output, each carrying 3.125A ; separately ; When carrying multiple loads, the cumulative load shall not exceed 3.125A
· Meet DALI protocol IEC 62386 DT8
· Dimming effect smooth, no flicker
· Over load protection; short circuit protection
· IP20, suitable for indoor LED lighting application
Technical Parameters
| Model | EULP75D-2H24V | |
| Input | Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Efficiency | ≥91%@230VAC, full load | |
| PF | ≥0.95@230VAC, full load | |
| Current | 0.44Amax@230VAC | |
| THD | < 10% @ 230VAC, full load | |
| Inrush current | Cold start , 42A@230VAC 100us | |
| Standby power | ≤0.5W | |
| No load power | ≤0.5W | |
| Turn on delay Time | ≤ 1s, at230Vac (When the light begins to shine) | |
| Output | Current/Voitage/Power | 3.125A/24V±3%/75W |
| Channel | 2 | |
| Ripple Voitage | ＜3% | |
| No load output voltage | 25.2VDC max | |
| Dimming type | ALI (Touch DIM) | |
| Function | Dimming range | 0.1%-100% |
| Color temperature | 3000K-6000K | |
| Dimming curve | Logarithm / linearity | |
| Flicker | No stroboscopic | |
| Protection | Over load | Reduce the current burping protection, eliminate the fault, and the output is normal |
| Short circuit | There is no output in case of short circuit, and the output is normal after troubleshooting | |
| Safety&EMC | Surge | L-N 1000VAC L,N-GND 2000VAC |
| Withstand Voltage | Input to output 3750VAC / 1min / < 5mA Input to GND 1500vac / 1min / < 5mA Output to GND 500Vac / 1min | |
| Safety standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation Resisance | 5MΩ | |
| Others | Working temp. | ta:-20℃~50℃ |
| tc | 70℃ @230Vac | |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| Lifetime | 50000 hours @tc: 50℃ | |
| Warranty | 5 years | |
| IP rating | IP20 | |
| Material | Metal | |
| Switch cycle | > 25000 times | |
| Dimension | 360*30*21mm（L*W*H） | |
| Packing size | Net weight: 280g ± 5% / PCS; 50PCS/Carton; 14.5kg ± 5% / box; Outer box size: 370*326*127mm |
