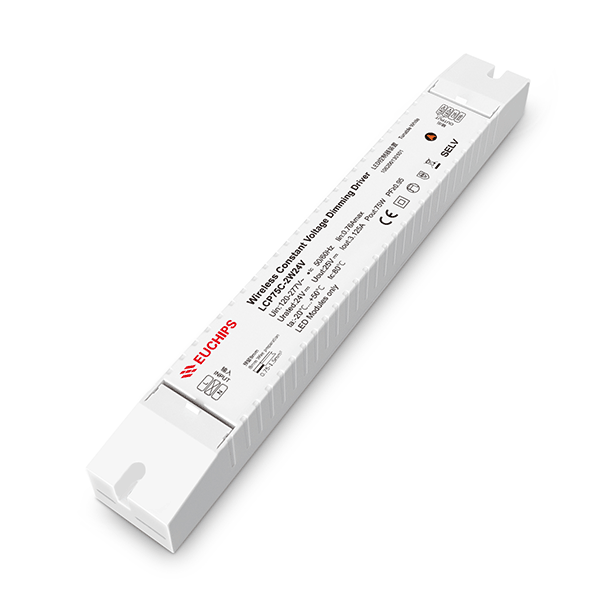

75W 24VDC 2ch Casambi CV Dimming Driver LCP75C-2W24V
75W 24VDC 2ch Casambi CV Dimming Driver LCP75C-2W24V
LCP75C-2W24V is a constant voltage mode output LED driver, Using Casambi wireless control and dimming, the curve is smooth and flicker-free.
Features
·Dual-channel constant voltage output, maximum output current 3.125A.
·Strong scalability, suitable for small home systems to large commercial or industrial lighting systems
·Flexible wireless control allows for remote management and real-time adjustment of lighting settings
·Good compatibility, able to integrate with various third-party devices and protocols
·User friendliness, easy control and configuration through smart device applications
·Overload, short circuit protection
·50,000-hour lifespan with a 5-year warranty
·IP20 protection rating, suitable for indoor Class I, II, and III luminaires
Technical Parameters
| Model | LCP75C-2W24V | |
| Input | Efficiency | 92%@230VAC,Full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.95@230VAC,Full load | |
| THD(full load) | 5%@230VAC, Full load | |
| AC Current(max) | 0.76Amax@230VAC | |
| Standby power | <1W | |
| No load Power | <1W | |
| Inrush Current(max) | Cold start,35A@230VAC | |
| Output | Output Current | 3.125A |
| Output Voltage | 24VDC | |
| Output Power | 75W | |
| Output Channel | 2 | |
| Voltage Tolerance | ±5% | |
| Turn on delay Time | <0.5s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | Bluetooth 4.0 or 5.0 Low Energy(BLE) |
| Dimming Range | 0.5%-100% Dimming to off | |
| Protection | Short Circuit | Output turns off and automatically recovers after troubleshooting. |
| Overload | When the load current exceeds the rated output current, hiccup protection will be triggered; the output will automatically recover after the fault is resolved. | |
| Safety & EMC | Surge | L-N:2KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety standard | CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | |
| CB (CB member states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
| RCM (Australia) AS 61347-1，AS 61347-2-13 EMEC (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
| EMC | CCC (China) GB/T17743，GB17625.1 | |
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| EMI | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Environment | Working Temp. | -20℃~50℃ |
| Storage Temp. | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
| Others | RoHS | Comply with 2011/65/EU |
| tc | 80℃ | |
| material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 295*40*32mm（L*W*H） | |
| Packing(weight) | Net weight: 340g±5%/PCS; 50PCS/Carton;17.5kg±5%/Carton; Carton Size: 434*302*174mm(L*W*H) | |
| Noise | In a quiet environment，No noise outside 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
