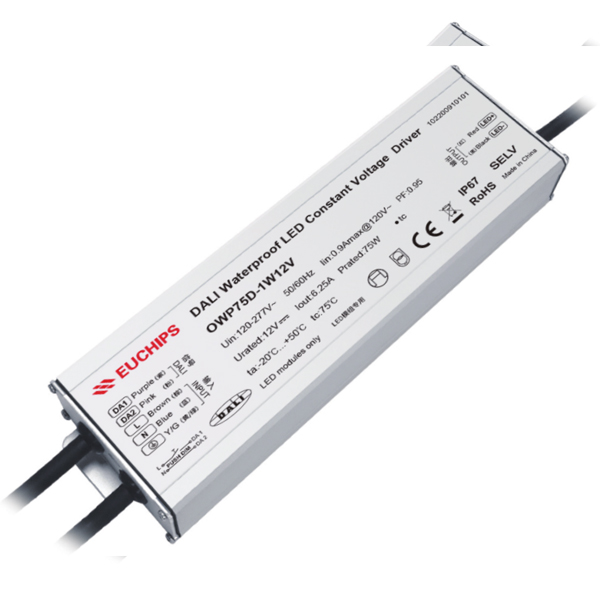

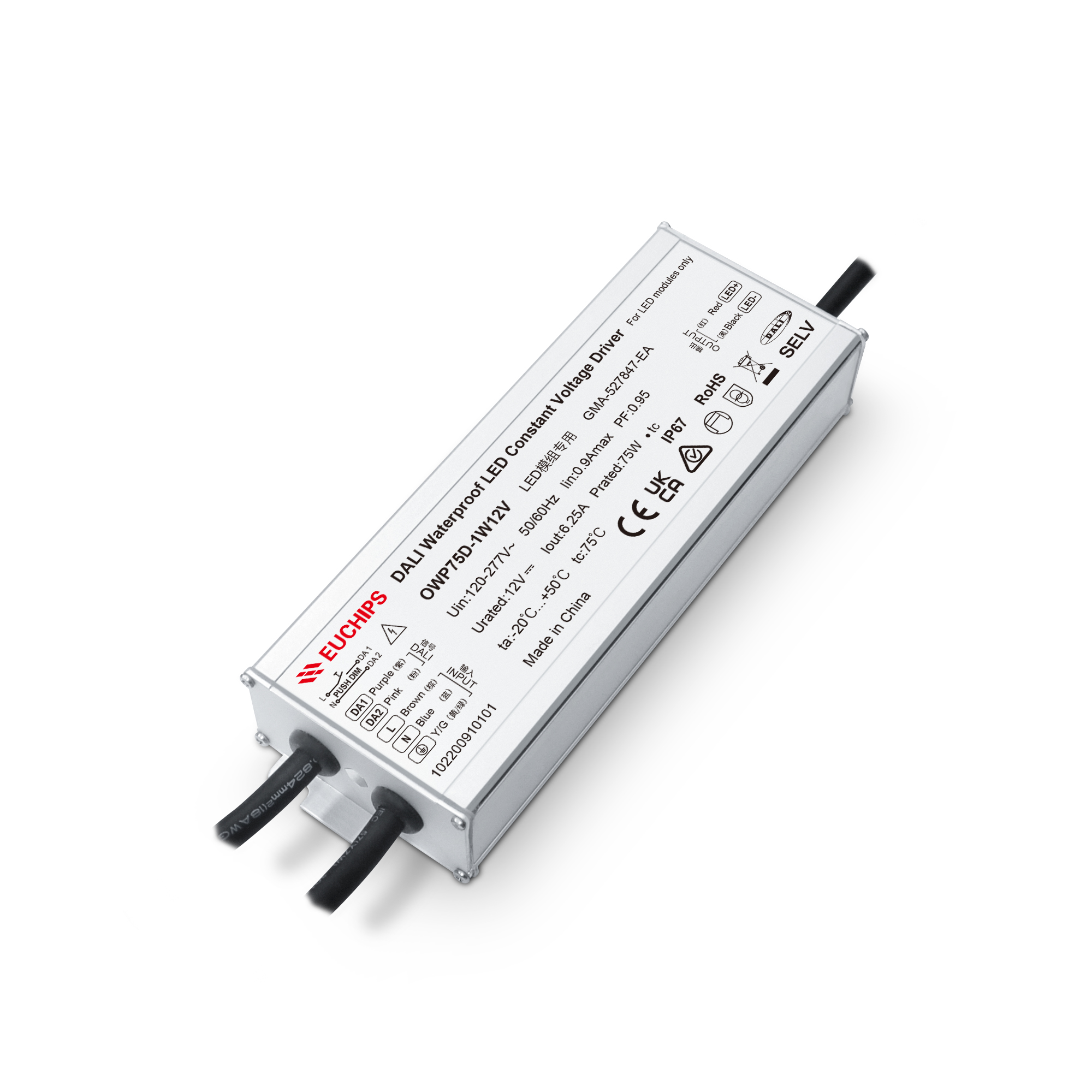

75W 12VDC DALI Waterproof CV Driver OWP75D-1W12V
75W 12VDC DALI Waterproof CV Driver OWP75D-1W12V
WP75D-1W12V is a dimming driver that can provide constant voltage output. Complies with DALI standard protocol IEC 62386. LED driver featuring the dimming by DALI master/Touch DIM(PushDIM) switch, with smooth dimming curve and are flicker free.
Features
· Single channel output with 12V CV direct current
· Voltage input range from 120VAC to 277VAC
· Built-in active PFC function
· Meet DALI protocol IEC 62386-207
· Support Touch DIM(Push DIM) function
· Ultra-thin design, Waterproof level IP67, High effciency up to ≥88%
· Dimming effect smooth, no flicker
· Protections: Short circuit, over load, over voltage, lightning protection
· suitable for LED CV lighting, such as LED module, LED strip light, LED tube, and so on
Technical Parameters
|
Model |
OWP75D-1W12V | |
|
Input |
Efficiency | ≥88%@230VAC, Full load |
| Voltage | 120-277VAC | |
| Frequency | 50~60Hz | |
| Power Factor | ≥0.95@230VAC, Full load | |
| THD | <10%@230VAC, Full load | |
| Standby power | <0.5W | |
| No load power | <0.5W | |
| Current | 0.47Amax@230VAC 0.9Amax@120VAC | |
| Inrush Current | Cold start,52A@230VAC 220us | |
| Turn on delay Time | ≤ 0.75 s, at230Vac (When the light begins to shine) | |
|
Output |
Current / Voltage / Power | 6.25A / 12V / 75W |
| Channel | 1 | |
| Output Voitage | ±5% | |
| Ripple Voitage | ±3% | |
| No load output voltage | 12.6V max | |
| Protection | Over load | Reduce current burp protection, troubleshoot normal output |
| Short circuit | Short circuit No output, troubleshooting output normal | |
| Over Current | Reduce current burp protection, troubleshoot normal output | |
| Safety&EMC | Surge | L-N 6000VAC L-N-PG 10000VAC |
| Withstand Voltage | I/P-O/P:3750VAC/5mA I/P-PG:1500VAC/5mA O/P-PG:500VAC/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
| Function | Dimming mode | DALI2.0/Touch DIM(Push DIM) |
| Dimming range | 0.1%-100% | |
| Dimming curve | Logarithm | |
|
Others |
Working Temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 75℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: —g±5%/PCS; —PCS/Carton; —kg±5%/Carton; Carton Size: —*—*—mm(L*W*H) | |
| Dimension | 187*64*33mm(L*W*H) | |
