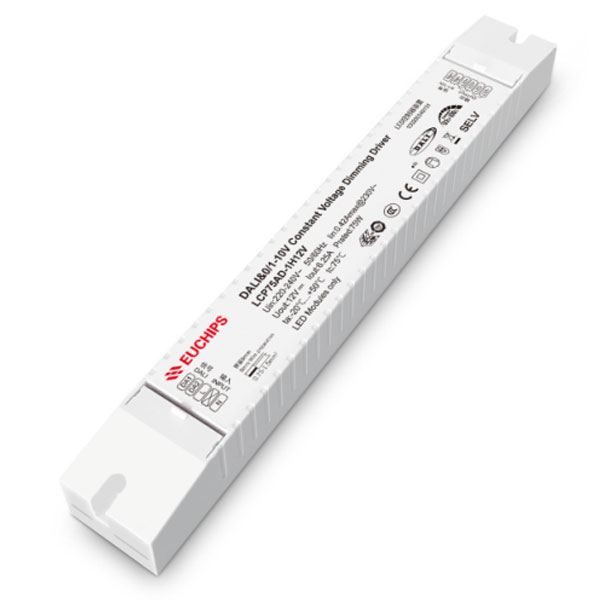

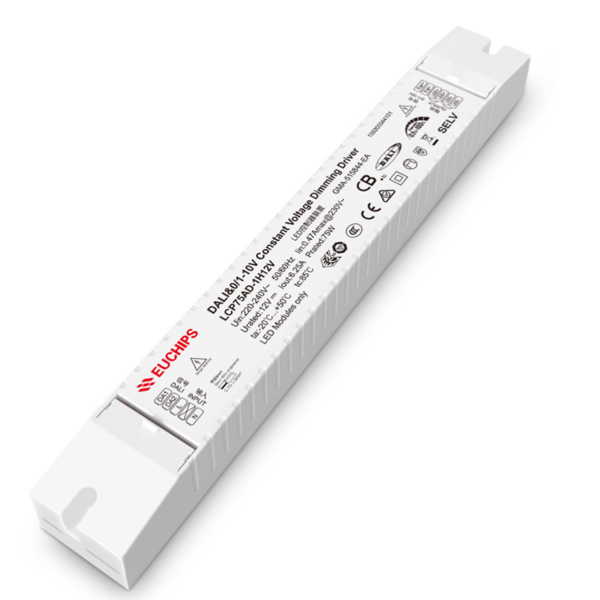

75W 12VDC DALI&0-10V CV Driver LCP75AD-1H12V
75W 12VDC 6.2A*1ch 220-240VAC Constant Voltage DALI&0-10V Driver LCP75AD-1H12V
LCP75AD-1W12V is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386, and provides multiple dimming functions (DALI,0/1-10V active signal, PWM, adjustable resistance, and Touch DIM) to achieve a smooth dimming effect.
Features
1. Single channel constant voltage output, 6.25A max.
2. Meet DALI Protocol IEC62386
3. High input voltage of 220VAC ~ 240VAC
4. Dimming effect smooth, no flicker
5. Over load protection; over voltage protection; short circuit protection
6. IP20, Suitable for indoor LED lighting application
Technical Parameters
|
Model |
LCP75AD-1H12V | |
|
Input |
Efficiency | 88%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.47Amax@230VAC | |
| Standby power | <0.5W | |
| No-load power | <0.5W | |
| Inrush Current(max) | Cold start,29.5A@230VAC 500us | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 6.25A/12VDC/75W |
| Channel | 1 | |
| Output Voltage | ±5% | |
| Ripple Voltage | ±3% | |
| No load output voltage | 12.6V max | |
| Turn on delay Time | <0.75s, at230Vac (When the light begins to shine) | |
|
Function |
Dimming Type | DALI / 0/1-10V / PWM / adjustable resistance / PUSH DIM |
| Dimming Range | 0.1%-100% | |
|
Protection |
Over load | Reduce current burp protection, troubleshoot normal output |
| Short circuit | Short circuit No output, troubleshooting output normal | |
| Over Current | Reduce current burp protection, troubleshoot normal output | |
|
Safety& EMC |
Surge | L-N:2KV |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/<5mA I/P-DIM( Signal port DALI):3750Vac/1min/<5mA
I/P-DIM( Signal port 0-10V):1500Vac/1min/<5mA O/P-DIM( Signal port DALI , 0-10V):1500Vac/1min/<5mA |
|
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 2.0 | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| tc | 85℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 285g±5%/PCS; 50PCS/Carton;14.75kg±5%/Carton; Carton Size: 464*305*189mm(L*W*H) | |
| Dimension | 295*40*32mm（L*W*H） | |
