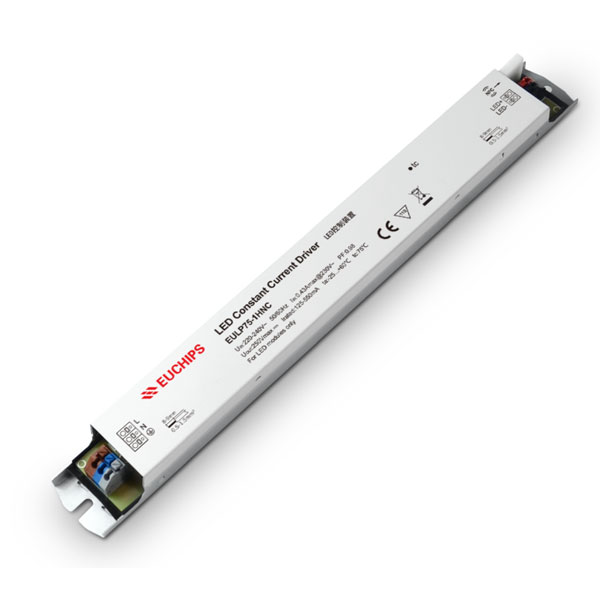

75W 125~550mA Non-dimmable NFC CC LED Driver EULP75-1HNC
75W 125~550mA Non-dimmable Constant Current LED Driver EULP75-1HNC
Features
·Constant current LED driver – non isolated
·Adjustable output current between 125 and 550 mA via NFC
·Output power up to 75W
·Up to 94 % efficiency
·5 years guarantee
·Best energy savings due to high efficiency
Technical Parameters
| Model | EULP75-1HNC | |
| Input | Efficiency | ≥94%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.98@230VAC,Full load | |
| THD(full load) | <7%@230VAC, Full load | |
| AC Current(max) | 0.43Amax@230VAC | |
| No load power | ≤0.5W | |
| Inrush Current(max) | Cold start,40A@230VAC 100us | |
| Output | Current | 125 – 550mA |
| Output Voitage | 54-216VDC | |
| Power | 75W | |
| Channel | 1 | |
| Current Accuracy | ±5% | |
| No load output voltage | 250VDC max | |
| Protections | Short circuit | Close output，recovers automatically after fault removed |
| Over Voltage | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced | |
| Safety&EMC | Surge | L-N 1KV; L/N-PE 2KV |
| Withstand Voltage | I-PE: 1500VAC/1min/5mA O-PE: 1500VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -25℃~+60℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 75℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25000 times | |
| Packing(weight) | Net weight: 197g±5%/PCS; 50PCS/Carton; 10.3kg±5%/Carton; Carton Size:502*338*149mm(L*W*H) | |
| Dimension | 280*30*21mm（L*W*H） | |
