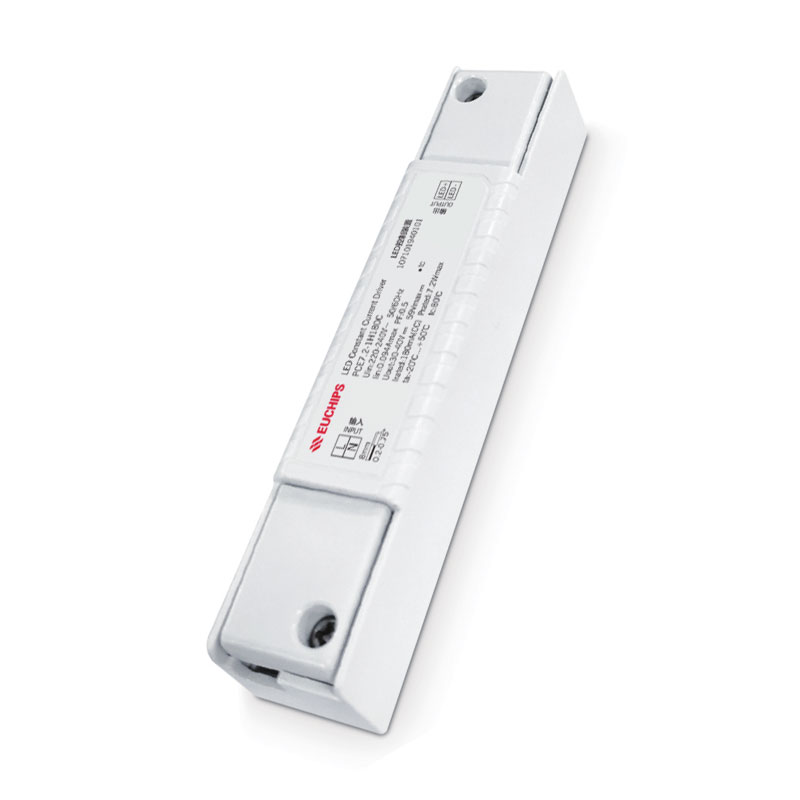

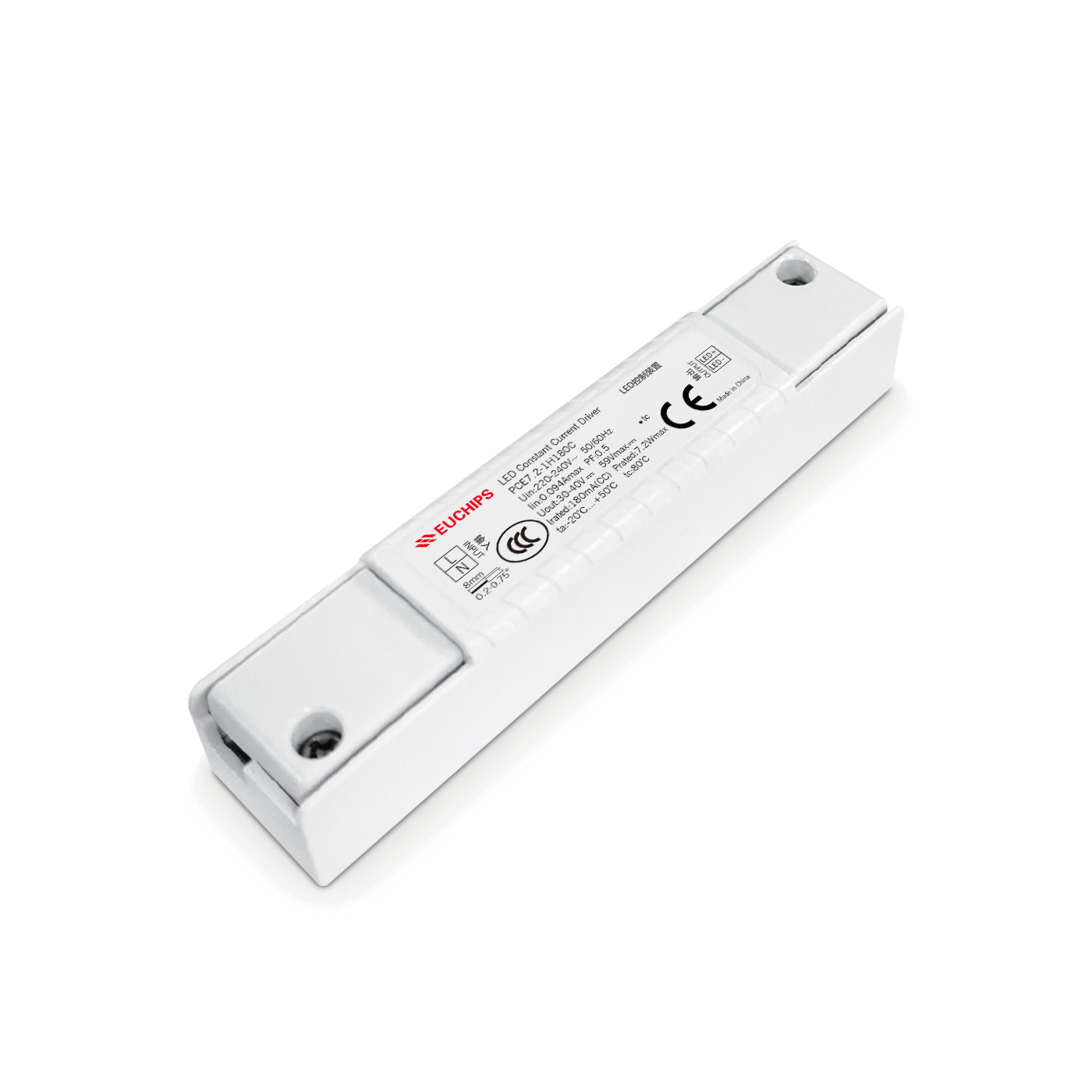

7.2W 180mA Non-dimmable CC LED Driver PCE7.2-1H180C

Short Description:

Item No.: PCE7.2-1H180C
Output Power: 7.2W

Product Detail

Product Tags

7.2W 180mA Non-dimmable Constant Current LED Driver PCE7.2-1H180C
PCE7.2-1H180C is a 7.2W AC/DC constant current LED driver, with Compact body design, minimum mounting aperture 28mm; Flicker free design to create a healthy light environment.

Product Features
· Single channel constant current output
· High voltage input: 220-240VAC
· Compact size, flicker-free
· Short circuit, over load, over voltage protections
· Suitable for LED indoor lights(down lights, spot lights, etc.)

Technical Parameters

Model	PCE7.2-1H180C
Input	Efficiency	≥80%@230VAC,Full load
	Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	Power Factor	≥0.5@230VAC,Full load
	AC Current(max)	0.094Amax@230VAC
	No load Power	≤0.5W
	Inrush Current(max	Cold start,9.6A@230VAC590us
	Turn on delay Time	<0.5s, at230Vac (When the light begins to shine)
Output	Current	180mA
	Voltage	30-40VDC
	Power	7.2W
	Channel	1
	Output current range	±7%
	Ripple current	±3%
	No load output voltage	≤59VDC
Protection	Short Circuit	Short circuit no output, troubleshooting output normal
	Over Load	Reduce current hiccup protection, troubleshooting output normal
	Over voltage	Reduce current hiccup protection, troubleshooting output normal
Safety&EMC	Surge	L-N:500VAC
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA
	Safety Standards	IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
	EMC Emission	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2
	Insulation Resisance	5MΩ
Others	Working Temp.	-20℃~50℃
	Storage Temp., Humidity	-40℃~85℃, 20-90%RH
	tc	80℃
	Material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:70℃
	Warranty Condition	5 years
	Switch Cycle	>25,000 times
	Packing(weight)	Net weight: 32g±5%/PCS; 200PCS/Carton; 6.8 kg±5%/Carton; Carton Size: 220220234mm(LWH)
	Dimension	1042221mm（LWH）
