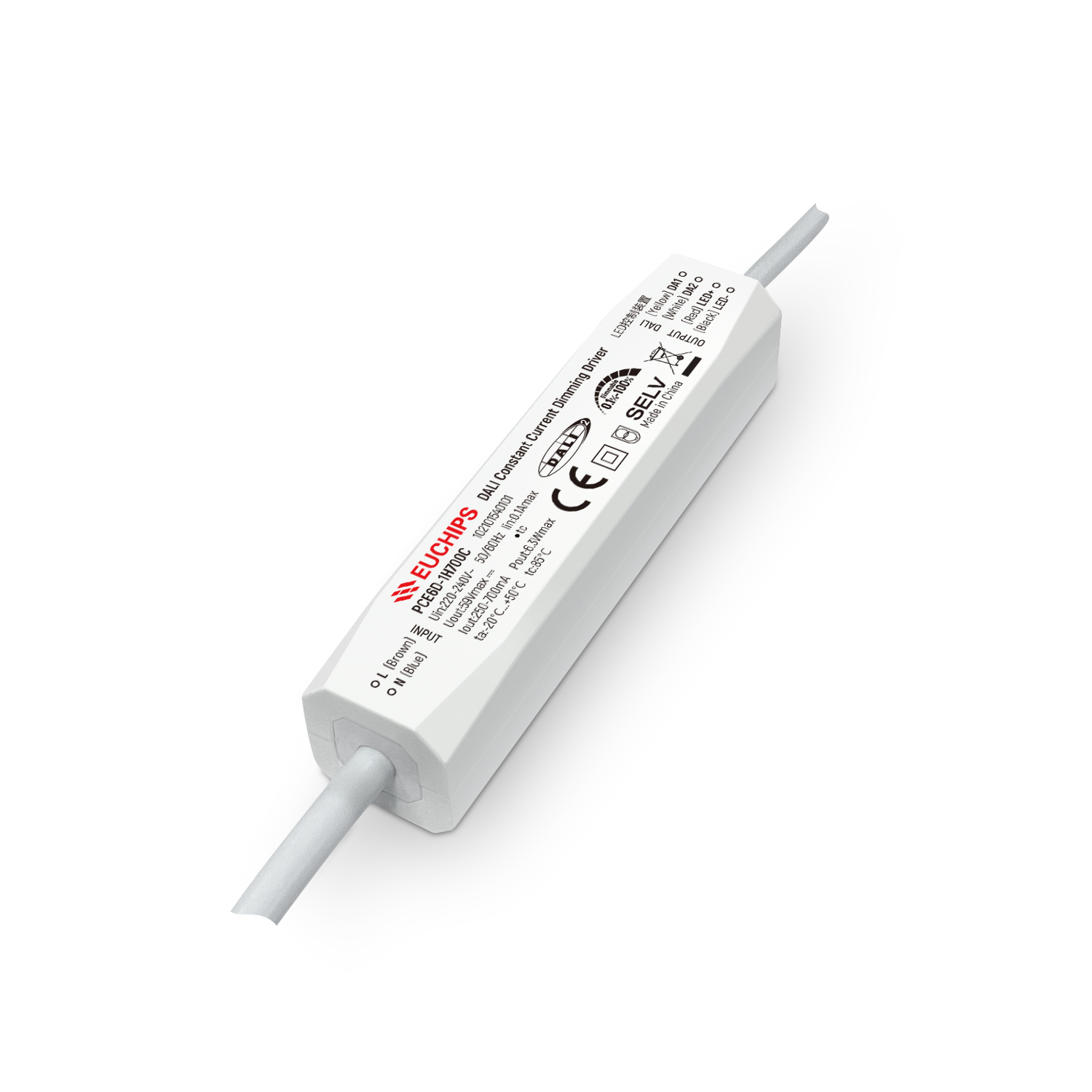

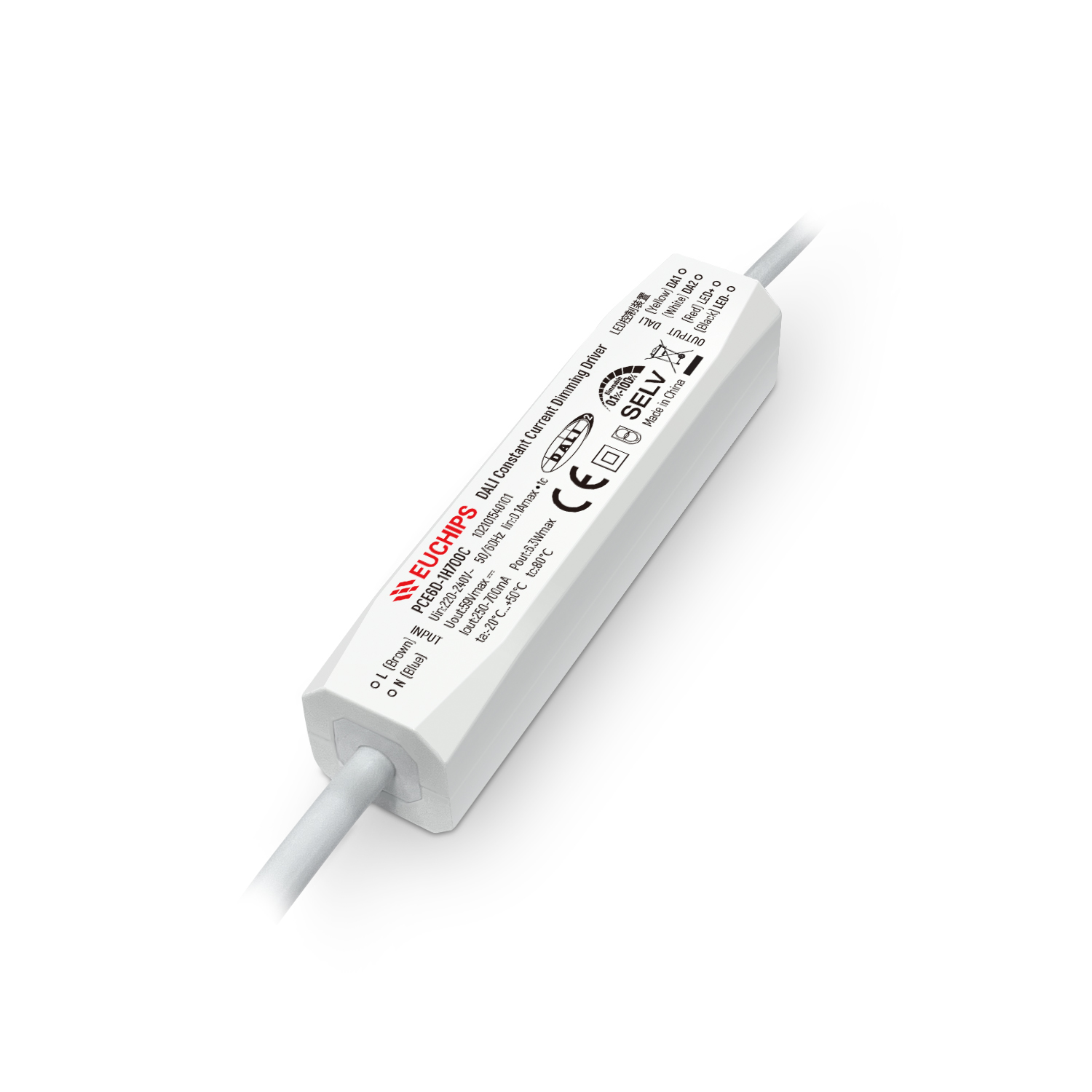

6W 700mA DALI CC Driver PCE6D-1H700C
6W 700mA DALI CC Driver PCE6D-1H700C
PCE6D-1H700C is a constant current mode output DALI dimming LED driver, complies with DALI standard protocol IEC62386. current selections are available range: 250mA-700mA.Current can be adjusted via DALI software. Dimming effect smooth, no flicker.
Features
· Meet DALI Protocol IEC 62386-207 Ed2.0
· High efficiency up to 72 %
· Built-in active PFC function
· Dimming effect smooth, no flicker
· Protections: Short circuit, over load
· Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
|
Model |
PCE6D-1H700C | |
|
Input |
Efficiency | ≥72%@230VAC, full load |
| Voltage range | 220VAC-240VAC | |
| Frequency (Hz) | 50/60Hz | |
| Current | 0.1Amax@230VAC | |
| PF | ≥0.5@230VAC, full load | |
| THD(full load) | – | |
| Inrush current | Cold start,15A@230VAC 14us | |
| Standby power | ≤0.5W | |
| No load power | ≤0.5W | |
| Turn on delay Time | ≤0.75s, at230Vac (When the light begins to shine) | |
|
Output |
Current range (mA) | 250-700mA |
| Voltage range (VDC) | 2-25V | |
| Power(W) | 6.3W | |
| Channel | 1 | |
| Current Accuracy | ±5% | |
| Ripple current | <3% | |
| No load output voltage | 59VDC max | |
|
Function |
Dimming type | DALI 2.0 |
| Dimming range | 0.1%-100% | |
| Dimming curve | Logarithm | |
| Flicker | No Flicker | |
| Protection | Over load | Current down, troubleshooting output normal |
| Short circuit | Short circuit No output, troubleshooting output normal | |
|
Safety&EMC |
Surge | L-N: 1KV |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/<5mA O/P-DIM( Signal port ):1500Vac/1min/<5mA | |
| Safety standards | EN61347, GB19510 | |
| EMC Eission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
