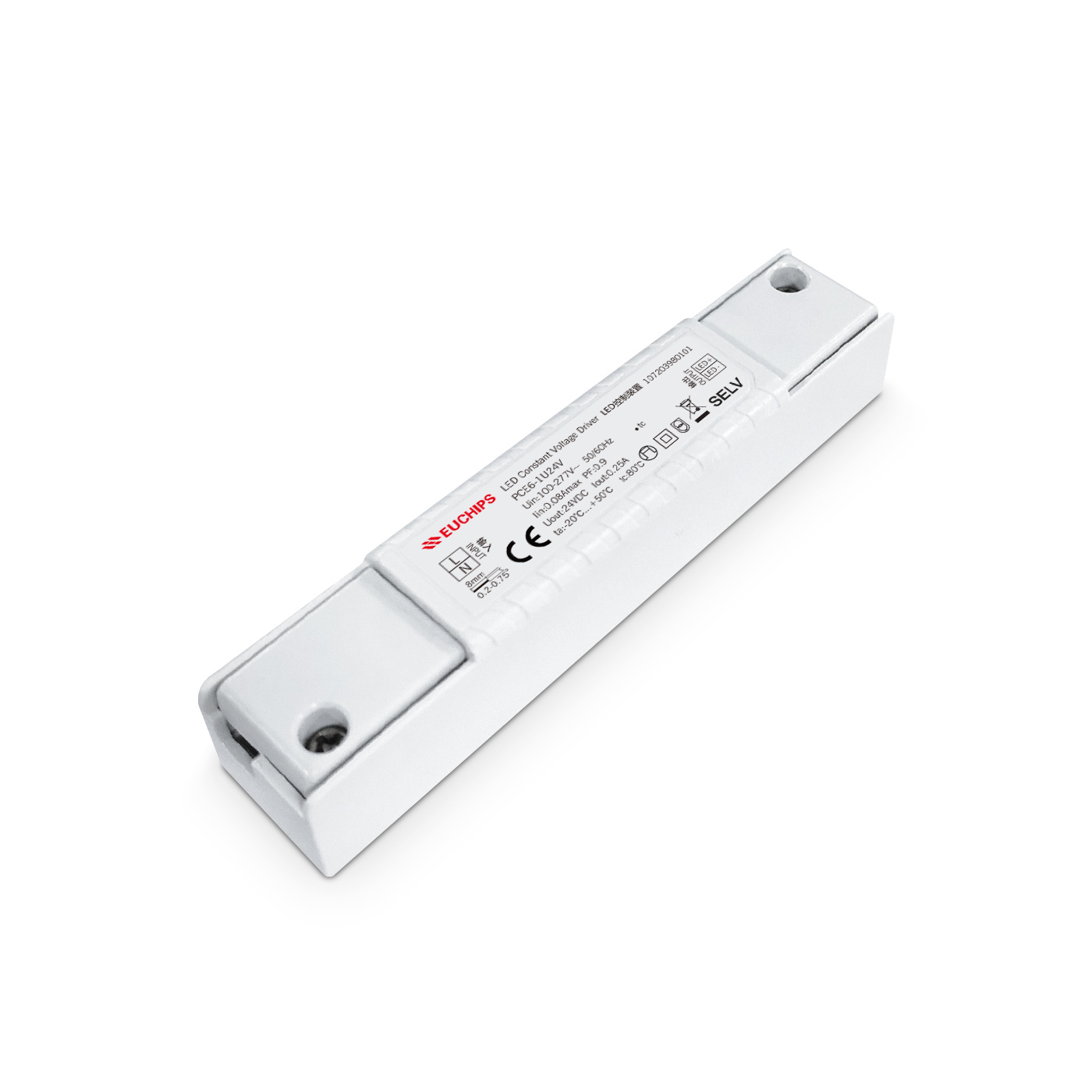

6W 24VDC Non-dimmable CV Driver PCE6-1U24V
6W 24VDC Non-dimmable CV Driver PCE6-1U24V
PCE6-1U24V is a 6W constant voltage LED driver, with Compact body design, minimum mounting aperture 28mm.
Features
· Single channel constant Voltage output
· Wide voltage input: 100-277VAC
· Compact size
· Short circuit, over load, over current, Over Temperature protections
· Suitable for constant voltage lamps
Technical Parameters
| Model | PCE6-1U24V | |
|
Input |
Efficiency | ≥83% @100/120/230/277VAC,Full load |
| Voltage | 100VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.95 @100VAC, >0.95 @120VAC, >0.9 @230VAC, >0.83 @ 277VAC, Full load | |
| THD(full load) | <15% @100VAC, <15% @120VAC, <15% @230VAC, <20% @ 277VAC, Full load | |
| AC Current(max) | 0.08 Amax@120VAC | |
| No load Power | ≤0.5W | |
| Inrush Current(max) | Cold start, 10A@120VAC 100us | |
| Turn on delay Time | ≤0.75 s, at120Vac (When the light begins to shine) | |
|
Output |
Current | 0.25A |
| Voltage | 24VDC | |
| Power | 6W | |
| Channel | 1 | |
| Output Voltage | ±5% | |
| Ripple | 20% | |
| Frequency | 65K | |
|
Protection |
Short Circuit | Short circuit without output, troubleshooting results in normal output |
| Over Load | Reduce voltage protection, troubleshoot and output normally | |
| Over Current | Reduce voltage protection, troubleshoot and output normally | |
| Over Temperature | No output, can be restored by re powering on after removing the fault | |
|
Safety& EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | |
| Safety Standards | EN61347-1 EN61347-2-13 UL8750 UL1310 | |
| EMI | EN55015 FCC Part 15 Class B | |
| Other EMC | EN61000-3-3 EN61000-3-2 EN61547 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 80℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 35g±5%/PCS; 200PCS/Carton; 7.5 kg±5%/Carton; Carton Size: 217*217*228mm(L*W*H) | |
| Dimension | 103*21*21mm（L*W*H） | |
