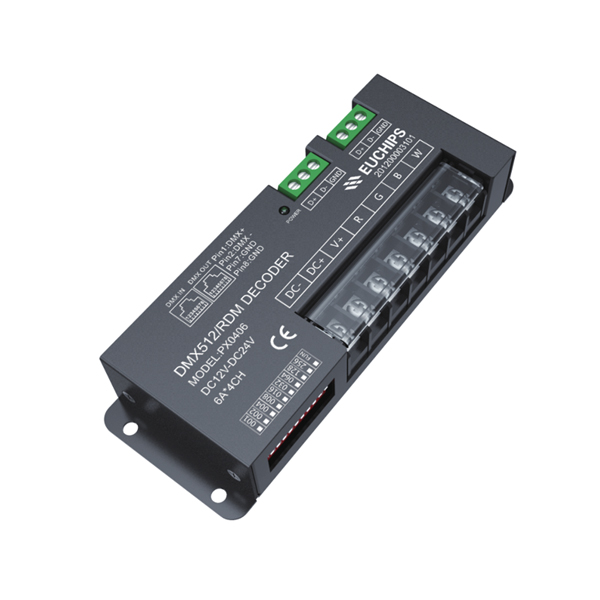

6A*4ch DMX512/RDM RGBW Decoder PX0406
6A*4ch DMX512/RDM RGBW Decoder PX0406
Welcome to use PX series DMX512/RDM decoder & driver. PX series adopt the advanced micro-computer control technology and converted the DMX512,RDM/2009 digital signal widely used in international to the PWM control signal. 1~4 channels output for option and each channel able to achieve 256 gradations of controlling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.
Features
· Meets DMX512/1990,RDM /2009 protocol
· Supported RDM parameters:
DISC_UNIQUE_BRANCH
DISC_MUTE
DISC_UN_MUTE
DEVICE_INFO
SOFTWARE_VERSION_LABEL
DMX512/RDM_START_ADDRESS
IDENTIFY_DEVICE
MANUFACTURER_LABEL
SUPPORTED_PARAMETERS
· In DMX mode set the DMX address manually by switch; in RDM mode, the host computer address allocation
· Constant voltage output, the maximum current of 6A /ch for RGBW decoder
· 256 grade brightness adjustment
· Short-circuit protection,overload protection,over-temperature protection
·Flicker-free
Technical Parameters
| Model | PX 0406 | |
|
Outpu t |
Channels | 1-4 |
| Voltage | 12-24VDC | |
| Current | 6A*4CH | |
| Power | 288W(12V)/576W(24 V) | |
| Input | Voltage | 12-24VD C |
| Standby loss | ＜1W | |
| Control signal | DMX512 1990/RDM 2009 | |
|
Othe rs |
Dimension | 140*50*26mm（ L * W* H） |
| Packing siz e | 145*56*32 mm（ L * W* H） | |
| G.W. | 240g | |
| Operation temperature | -20- 50℃ | |
| Relative humidity | 20% - 90%RH | |
