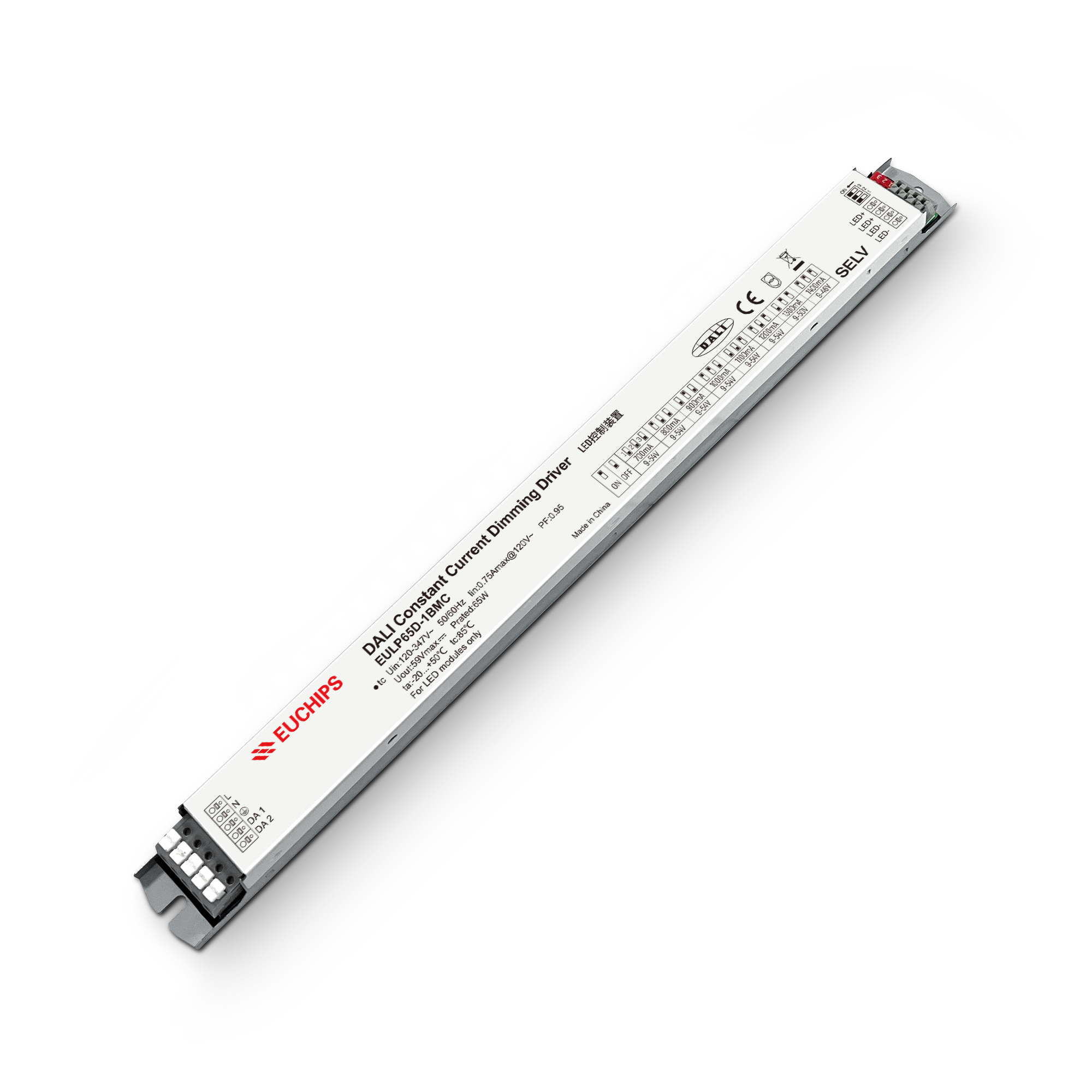

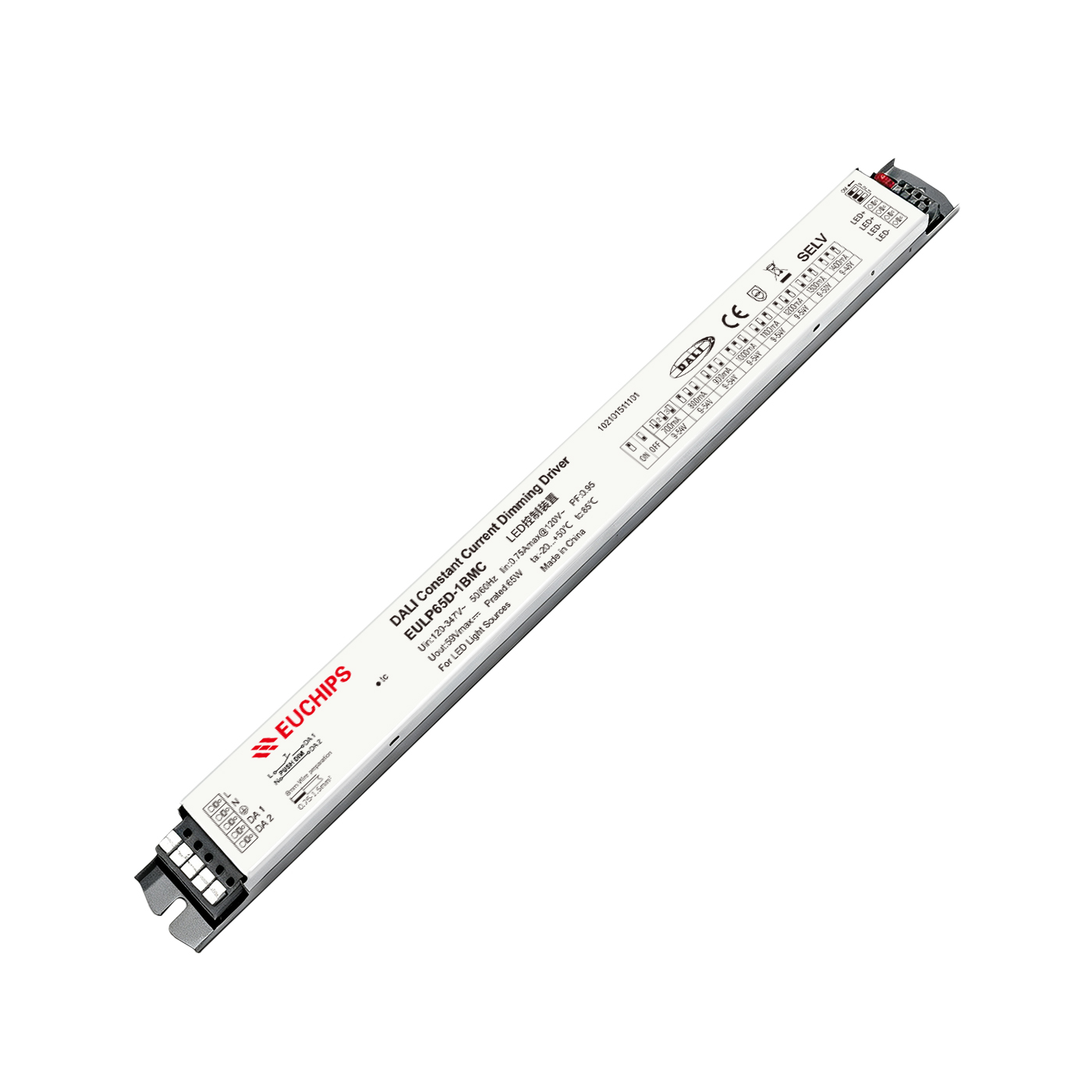

65W 700~1400mA*1ch DALI CC Driver EULP65D-1BMC
65W 700~1400mA*1ch DALI CC Driver EULP65D-1BMC
EULP65D-1BMC is an AC to DC LED Driver with adjustable output current. It can be selected by dip switch, which conforms to Dali standard protocol iec62386. Connect Dali master Control or touch dim can achieve smooth dimming effect.
Features
· Single channel constant current output, multistage current optional
· Support DALI software to adjust output current
· Comply with Dali protocol standard iec62386
· Support touch dim function
· Built in active PFC function
· Short circuit , Over load, Over Voltage protection
· It is suitable for LED indoor lamps, Linear Strip light, panel lamp, three prevention lamp, etc
Technical Parameters
| Model | EULP65D-1BMC | |
|
Input |
Voltage | 120-347VAC |
| Range of Input Voltage | 108-382VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Efficiency | ≥87%@120VAC, full load ≥89%@230VAC, full load ≥89%@347VAC, full load | |
| PF | ≥0.95@120VAC, full load ≥0.95@230VAC, full load | |
| Current | 0.75A max@120VAC | |
| THD | < 20% at rated input voltage range @ full load | |
| Inrush current | Cold start,25A@230VAC 100us | |
| Standby power consumption | ≤0.5W | |
| Turn on delay Time | ≤0.75 s, at120Vac (When the light begins to shine) | |
|
Output |
Current/Voitage/Power | 700mA/9-54V/37.8W 800mA/9-54V/43.2W
900mA/9-54V/48.6W 1000mA/9-54V/54W 1100mA/9-54V/59.4W 1200mA/9-54V/64.8W 1300mA/9-50V/65W 1400mA/9-46V/64.4W |
| Channel | 1 | |
| Current Accuracy | ±5% | |
| Ripple current | ＜3% | |
| No load output voltage | 59VDC max | |
| Function | Dimming type | DALI |
| Dimming range | 0%-100% | |
| Dimming curve | Logarithm | |
| Flicker | No stroboscopic | |
| Protection | Over Voltage | The current drops and the output is normal after troubleshooting |
| Over load | Reduce the current burping protection, eliminate the fault, and the output is normal | |
| Short circuit | There is no output in case of short circuit, and the output is normal after troubleshooting | |
| Safety&EMC | Surge | L-N 1000VAC L,N-PE 2000VAC |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/<5mA, O/P-DIM( Signal port ):1500Vac/1min/<5mA, I/P-GND:1500Vac, O/P-GND:500Vac | |
| Safety standards | EN61347-1 EN61347-2-13 UL8750 | |
| EMC Immunity | EN55015 FCC | |
| Insulation Resisance | 5Mfi | |
|
Others |
Dimension | 360*30*21mm（L*W*H） |
| Packing size | Net weight: 350g ± 5% / PCS; 50PCS/Carton; 17.9kg ± 5% / box; Outer box size: 334*377*141mm(L*W*H) | |
| Working temp. | ta:-20℃~50℃ | |
| tc | 85℃ | |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| Lifetime | 50000 hours @tc: 80℃ | |
| Warranty | 5 years | |
| IP rating | IP20 | |
| Material | Metal | |
| Switch cycle | > 25000 times | |
※ When the output voltage is 9V, the corresponding current accuracy is -7%.
