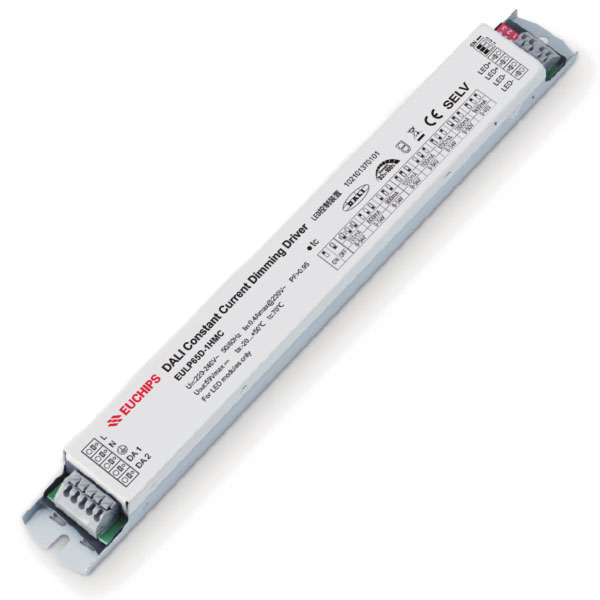

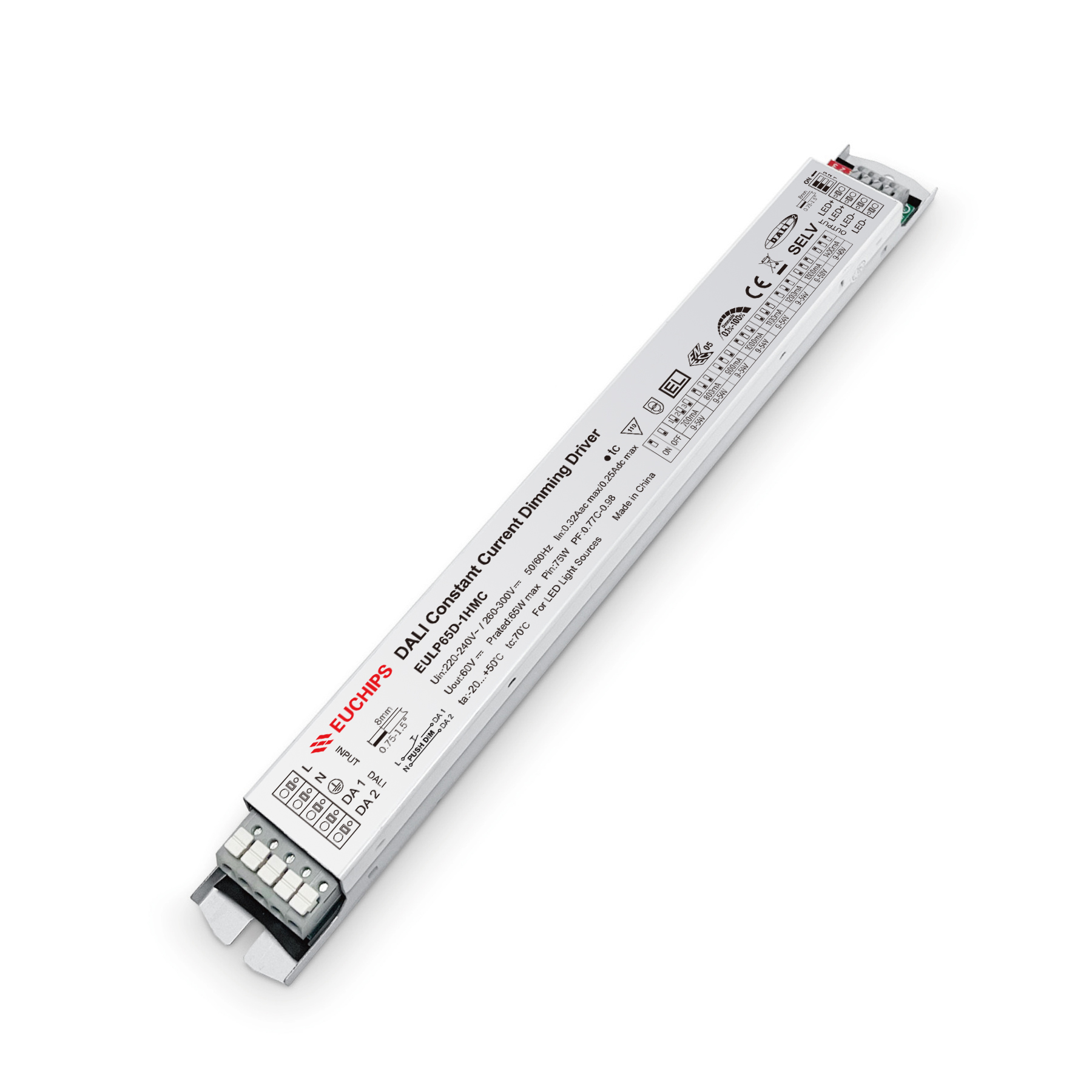

65W 700~1400mA*1ch DALI CC Driver EULP65D-1HMC
700mA/800mA/900mA/1000mA/1100mA/1200mA/1300mA/1400mA 65W DALI Constant Current Driver EULP65D-1HMC
EULP65D-1HMC-0 is a 65W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. EULP65D-1HMC-0 can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Features
1. Single channel constant current output, multistage current optional
2. Support DALI software to adjust output current
3. Comply with Dali protocol standard iec62386
4. Support touch dim function
5. Built-in active PFC function
6. Short circuit , Over load, Over Voltage protection
7. It is suitable for LED indoor lamps, such as downlight, panel lamp, three prevention lamp, etc
Technical Parameters
| Model | EULP65D-1HMC | |
| Input | Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Efficiency | ≥86%@230VAC, full load | |
| PF | ≥0.95@230VAC, full load | |
| Current | 0.4Amax@230VAC | |
| THD | < 10% @ 230VAC, full load | |
| Inrush current | Cold start , 13.2A@230VACC 14.2us | |
| Standby power | ≤0.5W | |
| No load power | ≤0.5W | |
| Turn on delay Time | ≤ 0.75 s, at230Vac (When the light begins to shine) | |
| Output | Current(mA)/Voltage (VDC)Power(W) | 700mA/9-54V/37.8W 800mA/9-54V/43.2W 900mA/9-54V/48.6W 1000mA/9-54V/54W1100mA/9-54V/59.4W 1200mA/9-54V/64.8W 1300mA/9-50V/65W 1400mA/9-46V/64.4W |
| Channel | 1 | |
| Ripple Current | <3% | |
| Current Accuracy | ±5% | |
| No load output voltage | 59Vdc max | |
| Function | Dimming Mode | DALI/Touch DIM |
| Dimming Range | 0.1-100% | |
| Dimming curve | Logarithm / linearity | |
| Flicker | No stroboscopic | |
| Protection | Over Voltage | The current drops and the output is normal after troubleshooting |
| Over Load | Reduce the current burping protection, eliminate the fault, and the output is normal | |
| Short circuit | There is no output in case of short circuit, and the output is normal after troubleshooting. | |
| Safety&EMC | Surge | L-N 1000VAC L,N-PE 2000VAC |
| Withstand Voltage | Input to output 3750VAC / 1min / < 5mA output to signal 1500vac / 1min / < 5mA | |
| Safety Standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation Resisance | 5MΩ | |
| Others | Dimension | 280*30*21mm（L*W*H） |
| Packing size | Net weight: 258g ± 5% / PCS; 50PCS/Carton; 13.4kg ± 5% / box; Outer box size: 498 * 334 * 130mm | |
| Working temp. | ta:-20℃~50℃ | |
| tc | 70℃ | |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| Lifetime | 50000 hours @tc: 70℃ | |
| Warranty | 5 years | |
| IP rating | IP20 | |
| Material | Metal | |
| Switch cycle | > 25000 times | |
