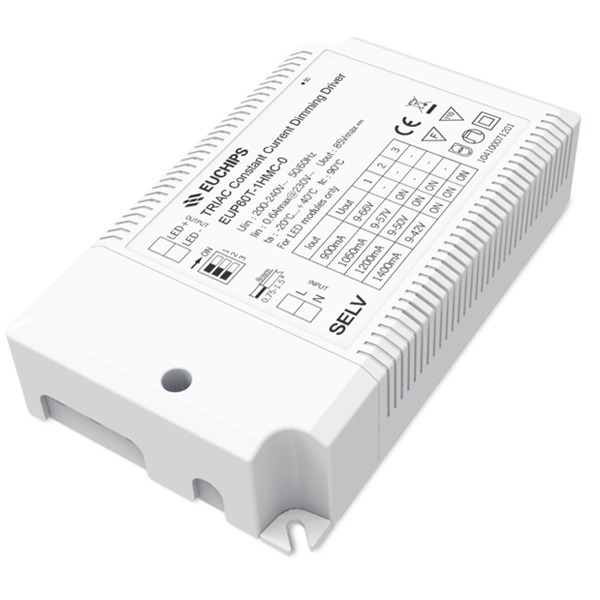

60W 900/1050/1200/1400mA*1ch Phase-cut CC Driver EUP60T-1HMC-0
60W 900/1050/1200/1400mA Constant Current LED Dimmable Driver EUP60T-1HMC-0
Features
1. Single-channel constant current output, selected by Dip-switch
2. Support Leading edge (Triac) and Trailing edge (ELV) Dimmer.
3. Dimming range from 40VAC to 240C.
4. Dimming effect smooth, no flicker
5. High efficiency up to 89%
6. Short circuit protection
7. Suitable for indoor LED lighting application, down light, panel light, and so on
Technical Parameter
| Model | EUP60T-1HMC-0 | ||
| Input | Efficiency | 89%@230VAC, Full load | |
| Voltage | 200VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | >0.5@230VAC, Full load | ||
| Current | 0.6Amax@230VAC, Full load | ||
| Dimming voltage range | 40-240VAC | ||
| Inrush Current | 35A@230VAC | ||
| Output | Current/Voltage/Power | 900mA/9-66VDC/59.4W 1050mA/9-57VDC/59.85W 1200mA/9-50VDC/60W 1400mA/9-42VDC/58.8W |
|
| Ripple Current | 300mVp-p | ||
| Channel | 1 | ||
| Current Tolerance | ±5%(900mA Current Tolerance: ±7% ) | ||
| No Load Output Voltage | 85V Max | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Function | Dimming Mode | Triac | ELV |
| Protection | Short Circuit | Close output, recovers automatically after fault removed | |
| Others | Working Temp. | -20℃~40℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 90℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 210g±5%/PCS; 50PCS/Carton; 11kg±5%/Carton; Carton Size: 516*337*179mm(L*W*H) | ||
| Dimension | 137*82*31mm(L*W*H) | ||
