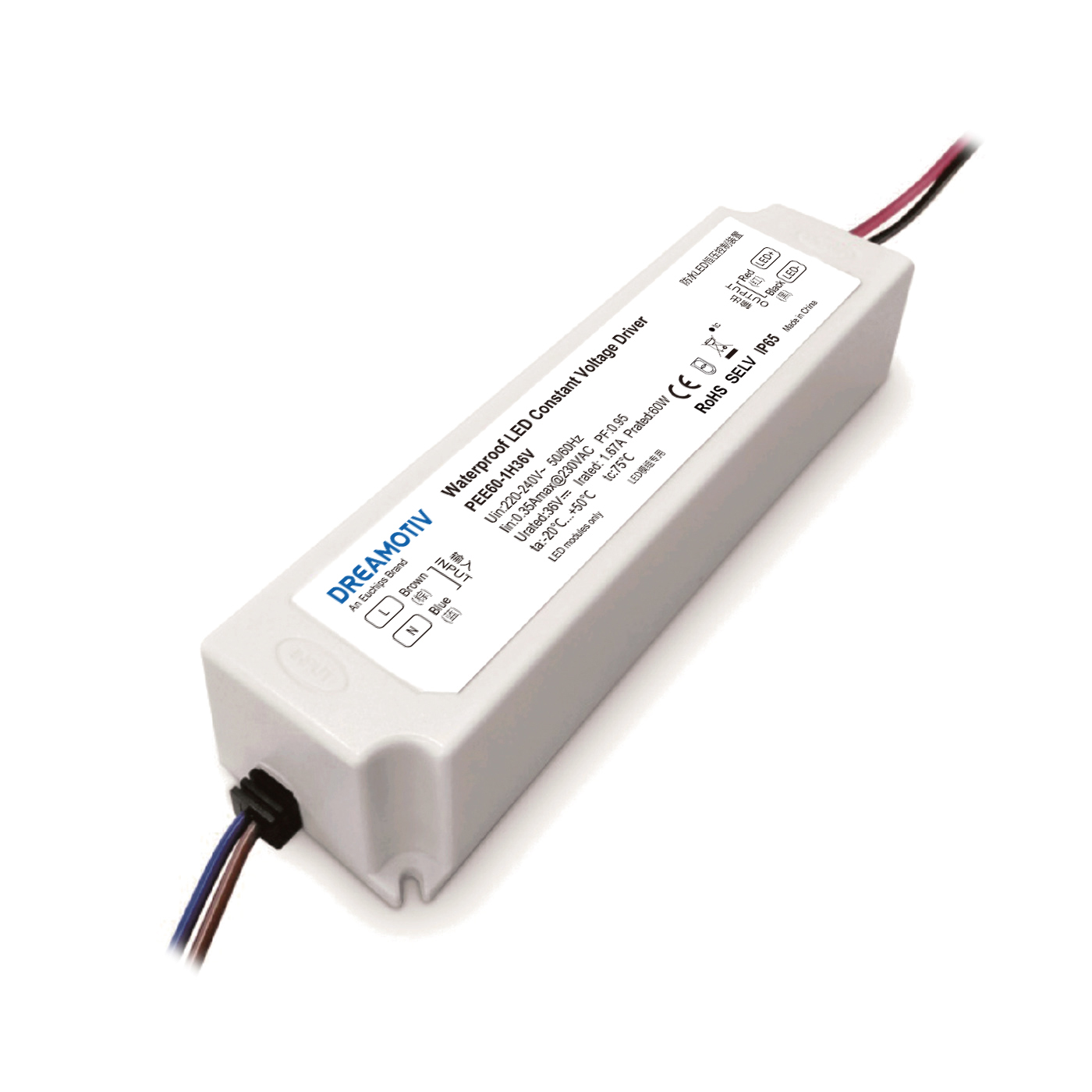

60W 36VDC Non-dimmable Waterproof CV Driver PEE60-1H36V
60W 36VDC Non-dimmable Waterproof CV Driver PEE60-1H36V
Features
·Insolated PC design
·Isolated design,safe and reliable
·Protections: Short circuit, Over load, over current
·Protection grades is as high as IP65
·5 years warranty
Technical Parameters
| Model | PEE60-1H36V | |
| Input | Efficiency | ≥86%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50/60Hz | |
| Power Factor | ≥0.95@230VAC, full load | |
| Current | 0.35Amax@230VAC | |
| THD | <10%@230VAC, full load | |
| No load power | <0.5W | |
| Inrush Current | Cold start,29A@230VAC 290us | |
| Output | Current/Voltage/Power | 1.67A/36VDC/60W |
| Channel | 1 | |
| Voltage Accuracy | ±5% | |
| No load output voltage | 43VDC max | |
| Turn On Delay Time | ≤0.5s, at230Vac | |
| Protection | Short Circuit | Auto recovery when failure is removed |
| Over Load | Drop voltage no output, troubleshooting self recovery | |
| Over Current | Drop voltage no output, troubleshooting self recovery | |
| Safety & EMC | Lightning Surge | L-N:2.2kV |
| Withstand Voltage | I/P-O/P:3000VAC/1min/5mA | |
| Safety Standards | EN61347-1,EN61347-2-13 | |
| EMC | EN55015, EN61547 | |
| EMC Immunity | EN61000-3-2, 3; EN61547 | |
|
Others |
Working Temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃ 20-90%RH | |
| Tc | 75℃@230VAC | |
| Material | PC | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 420g±5%/PCS; 30PCS/Carton; 13kg±5%/Carton; Carton Size: 333*218*205mm(L*W*H) | |
| Dimension | 165.5*42*34mm(L*W*H) | |
