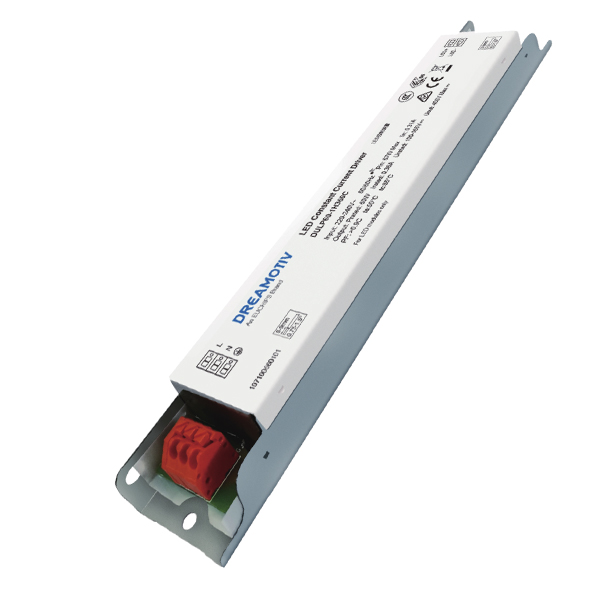

60W 360mA Non-dimmable CC Driver DULP60-1H360C
60W 360mA Non-dimmable CC Driver DULP60-1H360C
DULP60-1H360C is a newly developed semi voltage range input, non isolated flyback type constant current drive power supply. The power supply adopts a new circuit design, which makes the product have the characteristics of high reliability, wide range voltage output, low noise, energy conservation and environmental protection, economic type, etc.
Features
·High efficiency up to 91%
·High reliability
·wide range voltage output
·low noise and long life
·energy conservation and environmental protection
·Support Protection: Over Voltage, Over Load, Over temperature, Short circuit
·Suitable for indoor lamps
Technical Parameters
Model | DULP60-1H360C | |
Input |
Efficiency(Full load) | >91%@230VAC |
Voltage | 220VAC-240VAC | |
Frequency Range(Hz) | 50/60Hz | |
Power Factor(Full load) | >0.9@230VAC | |
THD(full load) | 20%@230VAC, Full load | |
AC Current(max) | 0.31Amax@230VAC | |
Standby power | <0.5W | |
Inrush Current(max) | Cold start, 23.8A@230VAC | |
Output |
Current/Voltage/Power | 360mA/100-165VDC/60W |
Ripple Current | <30% | |
Channel | 1 | |
Current Tolerance | ±8% | |
No load output voltage | 300VDC | |
Protection | Short circuit | If the output appears unusual, this product will start short circuit protection function,
and not because this abnormality in product permanent damage. |
Over Load | The output shall hiccup when the Power over the rated power, and shall be self-recovery when the fault condition is removed. | |
Over Voltage | The output shall hiccup when the over voltages applied to the output rail, and shall be self-recovery when the fault condition is removed. | |
Safety & EMC |
Surge | L/N: 1KV; L/N-G: 2KV |
Withstand Voltage | Primary/Secondary to Shell: 1500Vac 10mAMax/60second(1second for production) | |
Safety Standards | GB 19510.1-2009, GB 19510.14-2009; EN61347-1:2015, EN61347-2-13:2014/A1:2017, EN62384:2006/A1:2019;IEC 61347-1:2015/A1:2017, IEC 61347-2-13:2014/A1:2016; AS/NZS 61347.1:2016/A1:2018; AS/NZS 61347.2.13:2018; | |
EMC Eission | EN55015:2006+A1 2007; EN61000-3-2:2000,CLASS A; EN61000-3-3:1995+A1:2001; | |
EMC Immunity | EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-5; EN 61000-4-8; EN 61000-4-11; EN 61000-6-1; EN 61000-6-3; | |
Others |
Working Temp. | -20°C~50°C |
Storage Temp., Humidity | -40°C~85°C, 20-90%RH | |
tc | 85°C | |
Material | Metal | |
IP Rating | IP20 | |
Lifetime | 40,000h@tc:65°C; 20,000h@tc:85°C | |
Warranty Condition | 3 years | |
Switch Cycle | >20,000 times | |
Packing(mm L*W*H) | N.W: 145g±5%/PCS; 50PCS/Carton; 7.75kg±5%/Carton;Carton Size: L330*W188*H140mm | |
Dimension | 210*30.2*21mm(L*W*H) |
