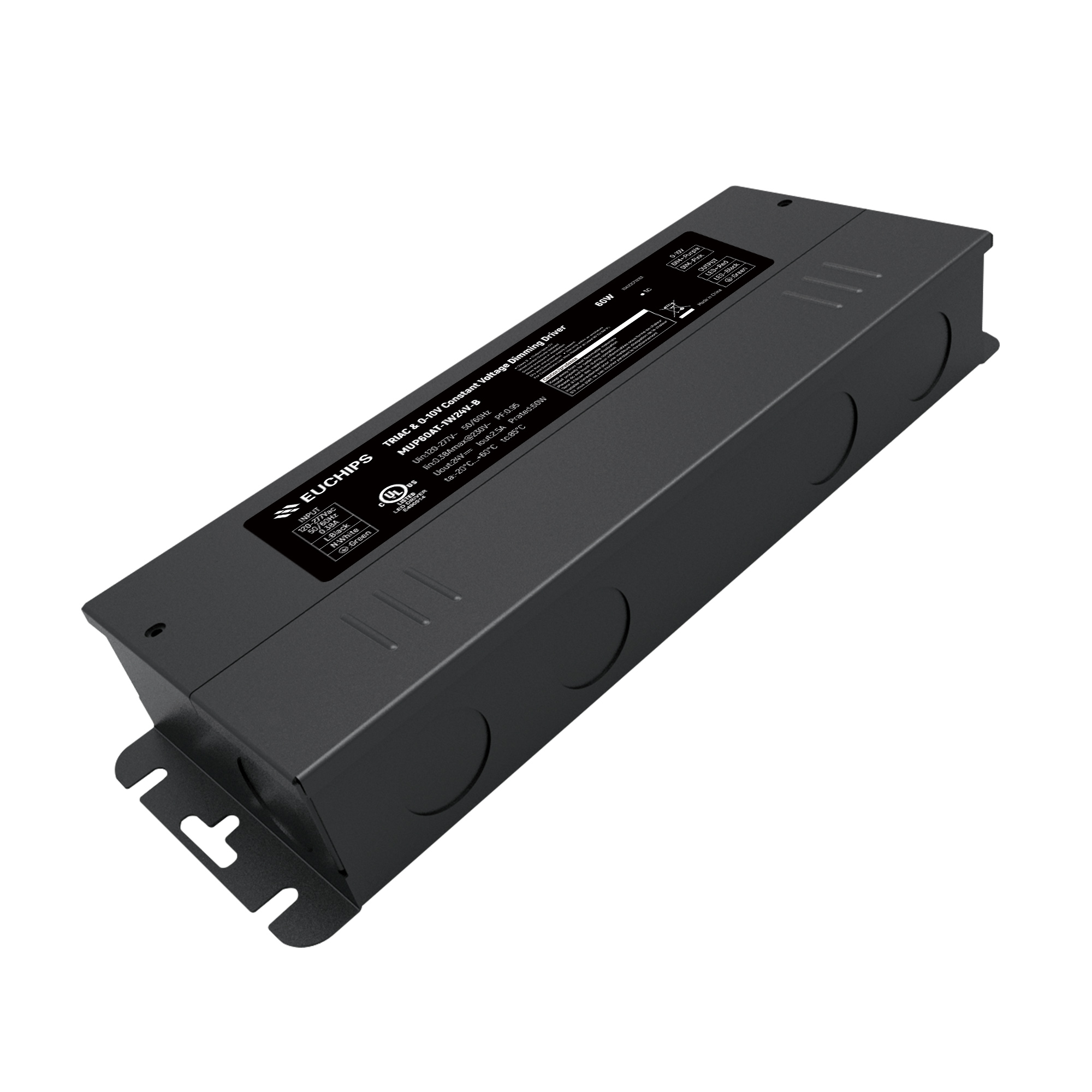

60W 24VDC Triac & 0-10V CV Driver MUP60AT-1W24V-B
60W 24VDC Triac & 0-10V CV Driver MUP60AT-1W24V-B
MUP60AT-1W24V-B is a constant voltage mode output LED driver. This driver can be controlled by external signal Phase-Cut, 0-10V to achieve a smooth dimming effect.
Features
·Single channel constant voltage output,2.5A Max
·Wide input voltage of 120VAC ~ 277VAC input voltage of 120VAC ~ 277VAC
·Dimming range of 0.5-100%, and dimming effect smooth, no flicker
·100% output when no dimming signal input, can be used as normal power supply
·Protection: Over load; short circuit; Over Current
·IP20, suitable for indoor LED lighting application
Technical Parameters
| Model | MUP60AT-1W24V-B | |
| Input | Efficiency | ≥86%@230VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 0.38Amax@230VAC | |
| PF | ≥0.95@230VAC, full load | |
| THD | <10%@230VAC, full load | |
| Inrush Current(max) | Cold start,13.9A@230VAC 100us | |
| Standby power | <2.5W | |
| No load power | <2.5W | |
| Turn on delay Time | <0.75s, at230Vac (When the light begins to shine) | |
| Output | Current | 2.5A |
| Voltage | 24VDC | |
| Voltage Range | 24VDC ±5% | |
| Power | 60W | |
| Channel | 1 | |
| Function | Dimming Type | 0-10V & TRIAC(120VAC 60Hz) |
| Dimming Range | 0.5%-100%(0-10V), 1%-100%(Triac) | |
| Dimming curve | Logarithm (0-10V) | |
| Flicker | No Flicker | |
| Protection | Short Circuit | Switch off the output power, working automaically after troubleshooting. |
| Over Load | Hiccup, recovers after fault condition is removed | |
| Over Current | Voltage and current drop, self-recovery after troubleshooting | |
| Safety&EMC | Surge | L-N 2500VAC L-N-PG 2500VAC |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA Signal-O/P: 1500VAC/1min/5mA | |
| Safety standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Eission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | -20℃~+50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 85℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:50℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 937g±5%/PCS; 10PCS/Carton;9.6kg±5%/Carton; Carton Size: –*–*–mm(L*W*H) | |
| Dimension | 241*81*38mm（L*W*H） | |
