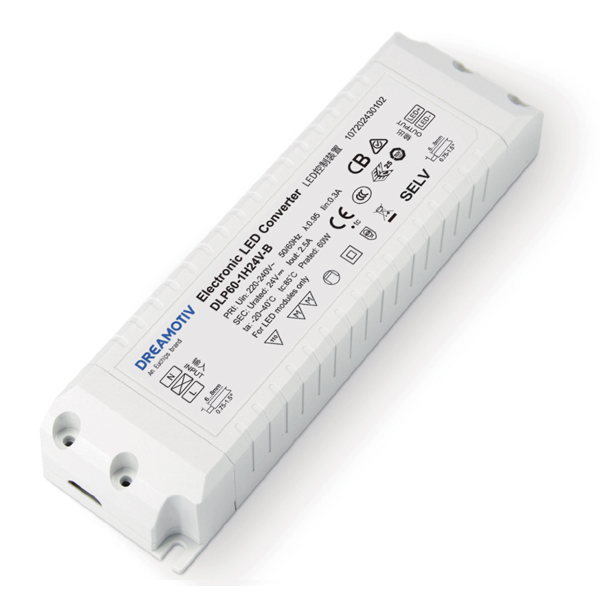

60W 24VDC Non-Dimmable CV Driver DLP60-1H24V-B
60W 24VDC Non-Dimmable CV Driver DLP60-1H24V-B
Features
· A channel constant voltage output
· Applicable to indoor LED lights
· Small size, high efficiency, high reliability and long life time
· -20℃~+50℃, working temp
· Protections: Over Current, Over voltage, Thermal protection, Short circuit self-recovery protection
· The typical efficiency of the machine is up to 88%
· Compliance with CE and ROHS
· 100% Full load aging test
Technical Paramaters
| Model | DLP60-1H24V-B | |
|
Input |
Efficiency | 88% Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.95 Full load | |
| THD(full load) | 10% | |
| Current | 0.3Amax | |
| Input Power@ None Load | 0.5W | |
|
Output |
Current(mA) | 2.5A |
| Voltage (VDC) | 24VDC | |
| Power(W) | 60W | |
| Channel | 1 | |
| Voltage ripple | 200 mV | |
| Voltage Tolerance | ±5% | |
| Turn on delay Time | 0.8s | |
|
Protection |
Short Circuit | Yes |
| Over Current | Yes | |
| Over voltage | Yes | |
| Thermal protection | 110 degree | |
| Safety& EMC | Surge | L-N:1.2KV |
| Withstand Voltage | Input-output: >3.75kV | |
| Safety Standards | IEC 62384:2006, GB24825-2009 | |
| EMC Eission | EN55015、EN61547 | |
|
Others |
Working Temp. | -20℃~40℃ |
| Storage Temp., Humidity | -20℃~80℃ 5-95%RH | |
| tc | 85℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: –g±5%/PCS; 50PCS/Carton; –kg±5%/Carton; Carton Size:370*280*169mm(L*W*H) | |
| Dimension | 180*52*30mm（L*W*H） | |
