60W 24VDC Triac & 0-10V CV Driver MUP60AT-1W24-BW
60W 24VDC Triac & 0-10V CV Driver MUP60AT-1W24-BW

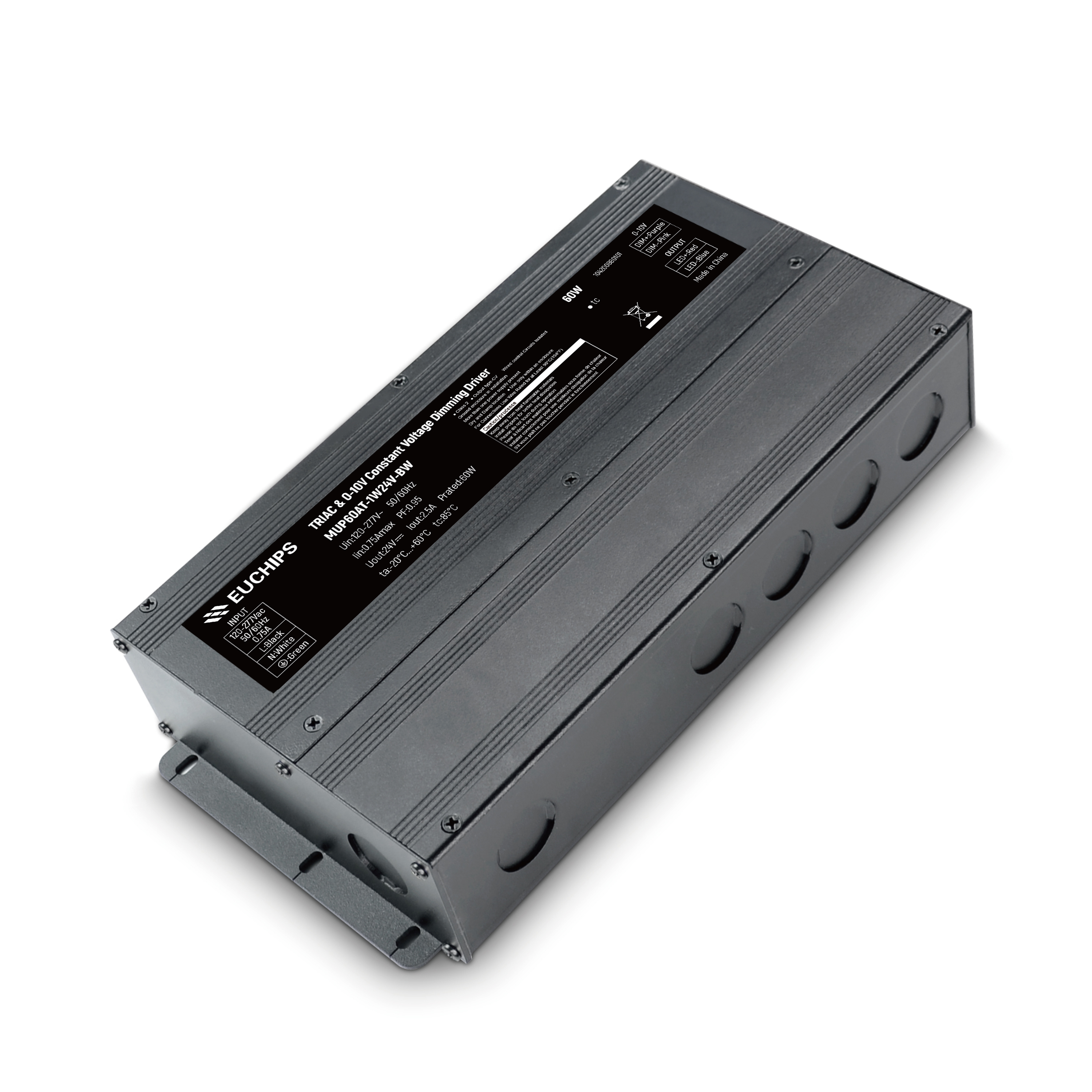

MUP60AT-1W24V-BW is a constant voltage mode output LED driver. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, 0-10V to achieve a smooth dimming effect.
Features
·Single channel constant voltage output,2.5A Max
·Wide input voltage of 120VAC ~ 277VAC
·Dimming range of 0.5-100%, and dimming effect smooth, flicker free
·100% output when no dimming signal input, can be used as normal power supply
·Protection: Over load; short circuit; Over Current
·IP20, suitable for indoor LED lighting application
Technical Parameters
| Model | MUP60AT-1W24V-BW | |
| Input | Efficiency | ≥85%@120VAC, ≥86%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 0.75Amax@120VAC 0.38Amax@230VAC 0.34Amax@277VAC | |
| PF | ≥0.98@120VAC, ≥0.95@277VAC，full load | |
| THD | <10%@120VAC, <25%@277VAC, full load | |
| Inrush Current(max) | Cold start,20A@120VAC 360us | |
| Standby power | <2.5W@230VAC | |
| No load power | <2.5W@230VAC | |
| Turn on delay Time | <0.75s, @120Vac (When the light begins to shine) | |
| Output | Current | 2.5A |
| Voltage | 24VDC | |
| Voltage Range | 24VDC ±5% | |
| Power | 60W | |
| Channel | 1 | |
| PWM Frequency | 20K Hz | |
| Function | Dimming Type | 0-10V, TRIAC/ELV(@120VAC 60Hz) |
| Dimming Range | 0.5%-100%(0-10V), 1%-100%(TRIAC/ELV) | |
| Dimming curve | Logarithm (0-10V) | |
| Flicker | Flicker free | |
| Protection | Short Circuit | Switch off the output power, working automaically after troubleshooting. |
| Over Load | Hiccup, recovers after fault condition is removed | |
| Over Current | Voltage and current drop, self-recovery after troubleshooting | |
| Safety&EMC | Surge | L-N 2500VAC L-N-PG 2500VAC |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA Signal-O/P: 1500VAC/1min/5mA | |
| Safety standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Eission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | (-20~+60) ℃ [-4°F~140°F] |
| Storage Temp., Humidity | (-40~+90)℃ [-40°F~194°F] 20-90%RH | |
| tc | 85℃ [ 185°F ] | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ [ 185°F ] | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: —g (— lb)±5%/PCS; 10PCS/Carton;–kg(– lb)±5%/Carton; Carton Size: —*–*—mm(–*–*— Inch)(L*W*H) | |
| Dimension | 243.6*106*41.4mm (9.6*4.17*1.62 Inch)(L*W*H) | |
