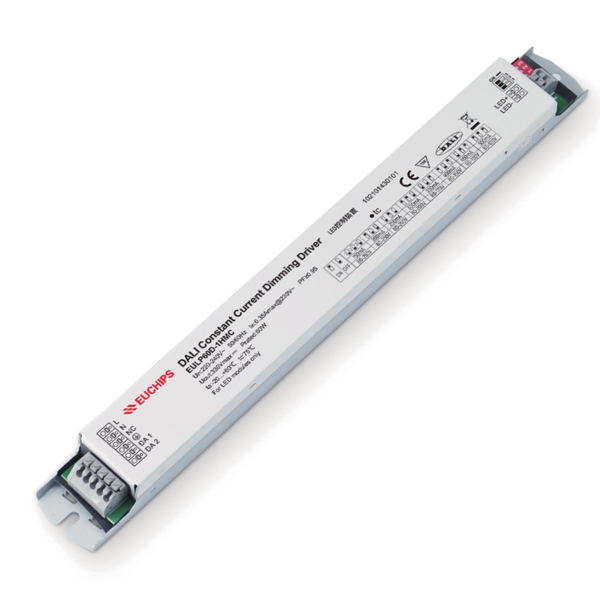

60W 150~500mA*1ch DALI CC Driver EULP60D-1HMC
60W 150~500mA*1ch DALI CC Driver EULP60D-1HMC
EULP60D-1HMC is a 60W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386 EULP60D-1HMC can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Features
· Single channel output, output current level selectable by DIP S.W.
· Support DALI software to adjust output current
· Meet DALI protocol IEC 62386
· Support Touch DIM function
· High efficiency up to ≥93%
· Built-in active PFC function
· Logarithmic dimming，dimming effect smooth, no flicker
· Protections: Short circuit, Over load, Over voltage
· Suitable for indoor LED lighting application, vapor light, and so on
Technical parameters
| Model | EULP60D-1HMC | ||
| Input | Efficiency | ≥93%@230VAC,Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency Range(Hz) | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC,Full load | ||
| THD(full load) | ≤10%@230VAC, Full load | ||
| AC Current(max) | 0.35Amax@230VAC | ||
| No load power | ≤0.5W | ||
| Standby power | ≤0.5W | ||
| Inrush Current(max) | Cold start,40A(twidth=200us measured at 50% Ipeak)@230VAC | ||
| Turn on delay Time | ≤0.5 s, at230Vac (When the light begins to shine) | ||
| Output | Current(mA)/Voltage (VDC) Power(W) | 150mA/80-250V/37.5W 200mA/80-250V/50W 250mA/80-240V/60W 300mA/80-200V/60W350mA/80-170V/59.5W 400mA/80-150V/60W 450mA/80-130V/58.5W 500mA/80-120V/60W | |
| Channel | 1 | ||
| Current Tolerance | ±5% (150mA ±7%, 200mA ±7%) | ||
| No load output voltage | 330VMax | ||
| Function | Dimming Type | DALI, Touch DIM | |
| Dimming Range | 0.5%-100% | ||
| Dimming curve | Logarithm | ||
| Flicker | No Flicker | ||
| Protection | Short circuit | Close output, recovers automatically after fault removed | |
| Voltage Load | No output, power off and restart | ||
| Safety& EMC | Surge | L-N:1kV L/N-PE:2kV | |
| Withstand Voltage | I-PE: 1500VAC/1min/5mA O-PE: 1500VAC/1min/5mA | ||
| Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | ||
| EMC Eission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | ||
| Insulation Resisance | 5MΩ | ||
| Others | Working Temp. | -20℃~60℃, | |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | ||
| tc | 75℃ | ||
| Material | Metal | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:75℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >25,000 times | ||
| Packing(weight) | Net weight: 200g±5%/PCS; 50PCS/Carton; 10.5kg±5%/Carton; Carton Size:498*334*130mm(L*W*H) | ||
| Dimension | 280*30*21mm（L*W*H） | ||
