60W 12VDC Triac CV Driver MUP60T-1W12V

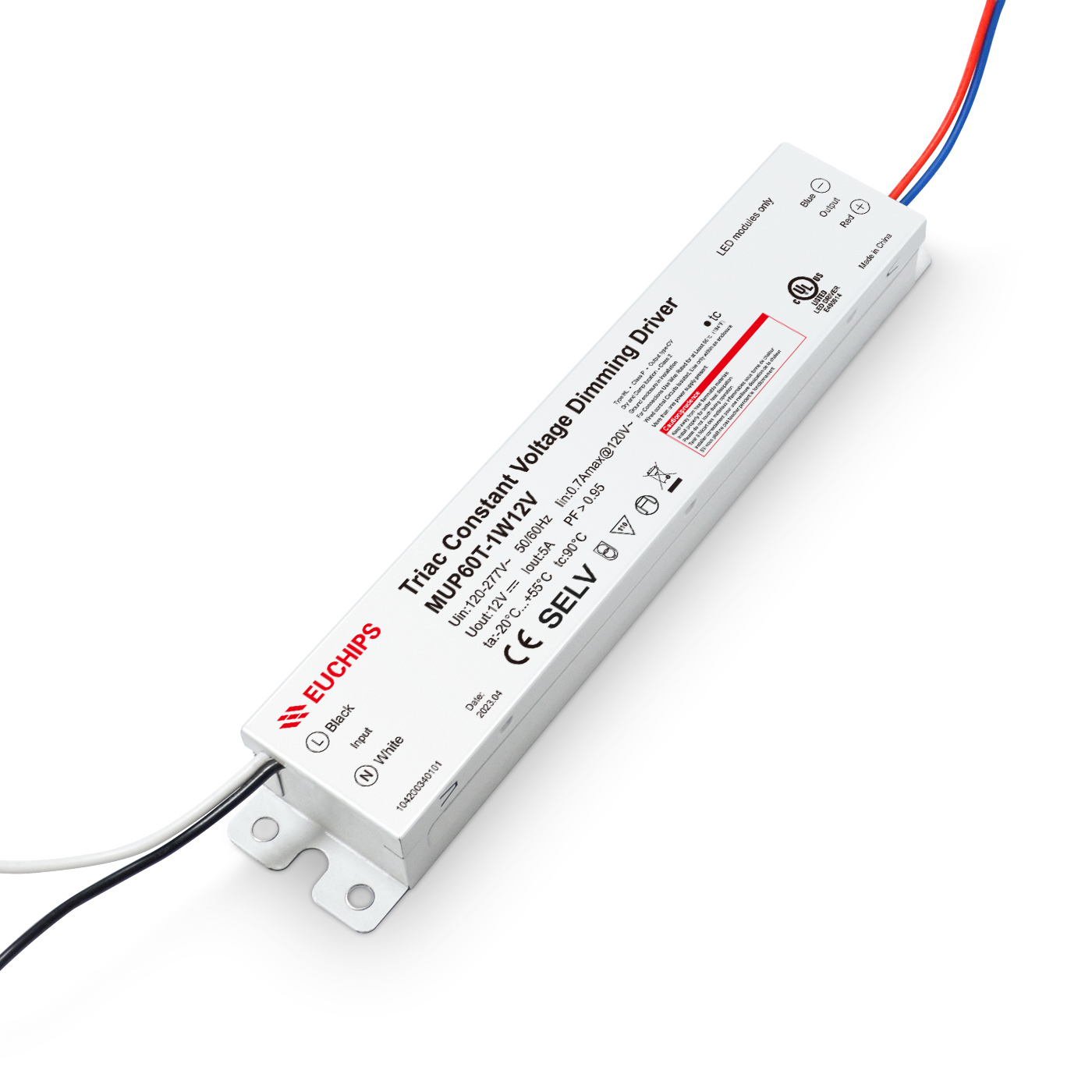

60W 12VDC Triac Constant Voltage Driver MUP60T-1W12V
MUP60T-1W12V is a constant voltage mode output LED driver. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Bunge，Siemens etc.) to achieve a smooth dimming effect.
Features
1. Single-channel constant voltage output, 5.0A Max.
2. Support Leading edge (Triac) and Trailing edge (ELV)Dimmer
3. Dimming range from 40VAC to 120V AC
4. Dimming effect smooth, no flicker
5. High efficiency: up to 86%
6. PF: up to 0.99
7. Over current protection; Short circuit protection；Over voltage
8. Suitable for indoor LED lighting application
Technical Parameters
|
Model |
MUP60T-1W12V | |
|
Input |
Efficiency | 86%@120VAC, Full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Power Factor | ≥0.99@120VAC, Full load | |
| Current | 0.7Amax@120VAC, Full load | |
| THD | <10%@120VAC,Full Load | |
| Dimming voltage range | 40-120VAC | |
| Inrush Current | Cold start, 50A@120VAC | |
| Standby Power | 4W | |
|
Output |
Current/Voltage/Power | 5A/12VDC/60W |
| Frequency | 1000Hz PWM | |
| Ripple Voltage | <300mV Vp-p | |
| Channel | 1 | |
| Turn On Delay Time | <0.5s from power on to Iout>0 @120Vac | |
| Function | Dimming Mode | Triac/ELV (120VAC phase-cut,277VAC Non-Dimming) |
| Dimming Range | 1-100% Dimming to Off | |
|
Protection |
Short Circuit | Hiccup，recovers after fault condition is removed |
| Over Load | Hiccup，recovers after fault condition is removed | |
| Over Voltage | Hiccup，recovers after fault condition is removed | |
| Over temperature | Shut down and auto-restart after normal temperature | |
|
Safety & EMC |
Surge | L-N:2.5kV; |
| Withstand Voltage | I/P-O/ P: 3000VAC/1min/5mA | |
| Safety Standards | UL8750/UL1310/CSA25013.CSA Class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC ClassB(120V)/Class A(277) | |
|
Others |
Working Temp. | -20℃~55℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 700g±5%/PCS; 20PCS/Carton; 14.5kg±5%/Carton; Carton Size: 300*268*168mm(L*W*H) | |
| Dimension | 243*45*30mm(L*W*H) | |
