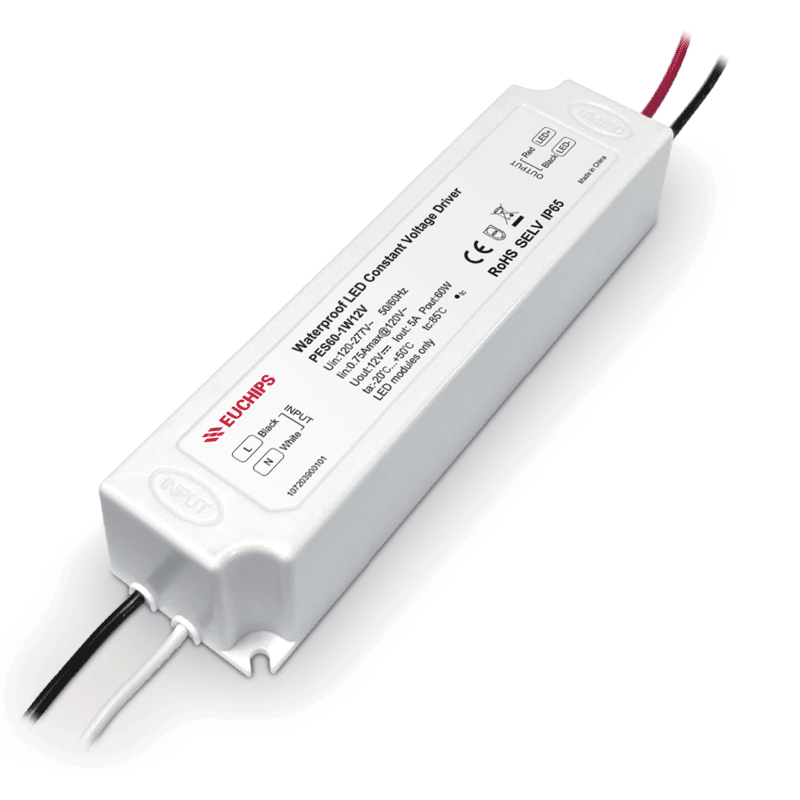

60W 12VDC Non-dimmable Waterproof CV Driver PES60-1W12V
60W 12VDC Non-dimmable Waterproof CV Driver PES60-1W12V
Features
· Insolated PC design
· Isolated design,safe and reliable
· Protections: Short circuit, Over load, over current
· Protection grades is as high as IP65
· 5 years warranty
Technical Parameters
Model |
PES60-1W12V | |
Input |
Efficiency | ≥84%@120VAC, full load ≥84%@277VAC, full load |
Voltage | 120VAC-277VAC | |
Frequency | 50/60Hz | |
Current | 0.75Amax@120VAC 0.33Amax@277VAC | |
PF | ≥0.95@120VAC, full load ≥0.95@277VAC, full load | |
THD | <10%@120VAC, full load <20%@277VAC, full load | |
Inrush Current | Cold start,30A@120VAC 305us Cold start,42A@277VAC 312us | |
No load power | <0.5W | |
Turn On Delay Time | ≤0.5s, at230Vac (When the light begins to shine) | |
Output |
Current | 5A |
Voltage | 12VDC | |
Power | 60W | |
Channel | 1 | |
Voltage Accuracy | ±5% | |
Ripple | ≤216mV | |
Over power limit | ≥126% | |
Protection | Short Circuit | Short circuit without output, troubleshooting results in normal output |
Over Load | Reduce current hiccup protection, troubleshooting output normal | |
Over Current | Reduce current hiccup protection, troubleshooting output normal | |
Safety & EMC |
Lightning Surge | L-N:2kV |
Withstand Voltage | I/P-O/P:3750VAC/1min/5mA | |
Safety Standards | EN61347, GB19510, UL8750 | |
EMC Eission | EN55015,FCC Part 15 Class B | |
EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
Insulation Resisance | 5MΩ | |
Others |
Working Temp. | (-20~+50)℃ (-4°F~122°F) |
Storage Temp.; Humidity | (-40~+85)℃ (-40°F~185°F) | |
Tc | 85℃ | |
Material | PC | |
IP Rating | IP65 | |
Lifetime | 50,000h@tc:85℃(185°F) | |
Warranty Condition | 5 years | |
Switch Cycle | >25,000 times | |
Packing Size | Net weight: 405g(0.893 lb)±5%/PCS; 30PCS/Carton; 12.5kg(2.76 lb)±5%/Carton; Carton Size: 333*218*205mm(13.11*8.56*8.7 inch)(L*W*H) | |
Dimension | 165.5*42*34mm(6.52*1.65*1.34 inch)(L*W*H) |
