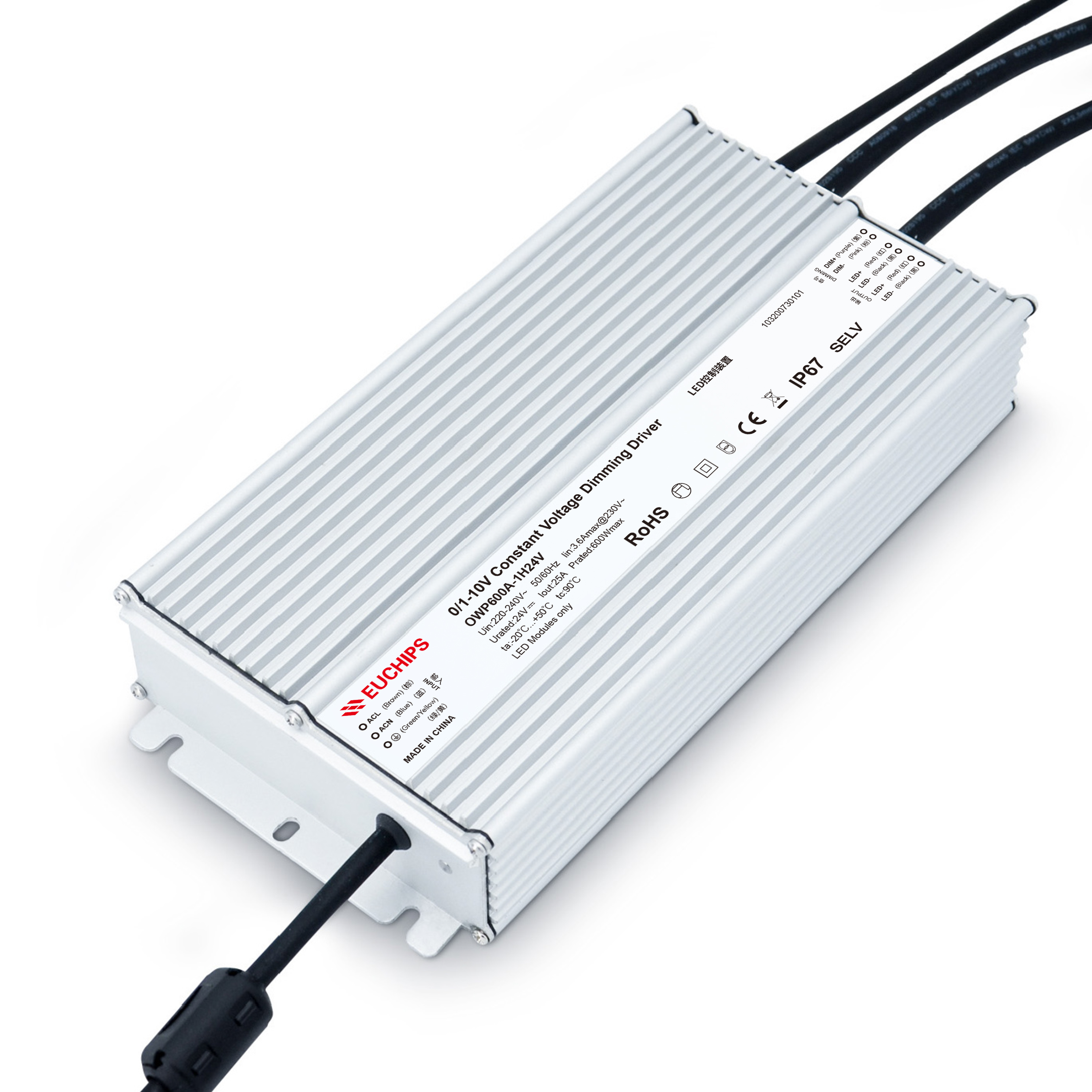

600W 24VDC 0/1-10V Waterproof CV Driver OWP600A-1H24V

Short Description:

Item No.: OWP600A-1H24V
Output Power: 600W

Product Detail

Product Tags

600W 24VDC 0/1-10V Waterproof CV Driver OWP600A-1H24V

Features

· Single channel constant voltage output, maximum output current 25A
· Lightning protection, short circuit, over voltage, over current protection, metal housing
· Protection class IP67, suitable for outdoor lighting
· Dimming range 0.1%-100% dimming, smooth dimming without step sense and stroboscopic
· Life of 50,000 hours, 5 years warranty
· Customizable dimming curve
· Wide voltage input with active PFC, full power output
· Suitable for LED constant voltage lamps, lamp strips, lamp strips, etc

Technical Parameters

Model	OWP600A-1H24V
Input	Input Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	Input Current	3.6Amax@230VAC
	Power Factor	≥0.96@230VAC, Full load
	Efficiency	≥92%@230VAC, Full load
	THD	≤10%@230VAC, Full load
	Standby power	<3W
	No-load power	/
	Inrush Current	Cold start,69.7A@230V 128us
Output	Output Voltage	24VDC
	Voltage Accuracy	±5%
	Output Current	25A Max.
	Current Accuracy	±5%
	Output Power	600W Max.
	Output Power Range	0W~600W
	PstLM	≤1
	SVM	≤0.4
	Dimming frequency	20KHz
	Line Regulation	±5% @Full load
	Load Regulation	±5% @Full load
	Turn on delay Time	<1s, at230Vac (When the light begins to shine)
Function	Dimming Type	0/1-10V
	Dimming Range	0.1%-100% Dimming to OFF
	Dimming Curve	Logarithm
	Flicker free	Flicker free
Protection	Short circuit	Short circuit No output, troubleshooting output normal
	Over Current	No output is generated during overcurrent, the output is normal
	Over load	No output. The system recovers after the fault is rectified
	Over Voltage	Current down, troubleshooting output normal
	Over temperature	/
Safety& EMC	Surge	L-N 6KV L-PE 10KV N-PE 10KV
	Withstand Voltage	I/P-O/P: 3750Vac/1min/<5mA I/P-GND:1500Vac/1min/<5mA O/P-GND:500Vac/1min/5mA O/P-0-10V( Signal port ):1500Vac/1min/<5mA
	Safety Standards	CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493
		CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384
		RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384
	EMC Emission	CCC (China) GB/T17743，GB17625.1
		CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547
		RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Environment	Working Temp.	-20℃~50℃
	Storage Temp.	-40℃~85℃
	Storage Humidity	20-90%RH (No condensation)
Others	RoHS	Comply with 2011/65/EU
	tc	90℃
	material	PC
	IP Rating	IP67
	Lifetime	50,000h@tc:90℃
	Warranty Condition	5years
	Switch Cycle	25,000times
	Body size	27113150mm (LWH)
	Packing(weight)	Net weight: 2850g±5%/PCS; 10PCS/Carton; 29kg±5%/Carton; Carton Size: 595320168mm(LWH)
	Noise	In a quiet environment, no noise beyond 30-50cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.
