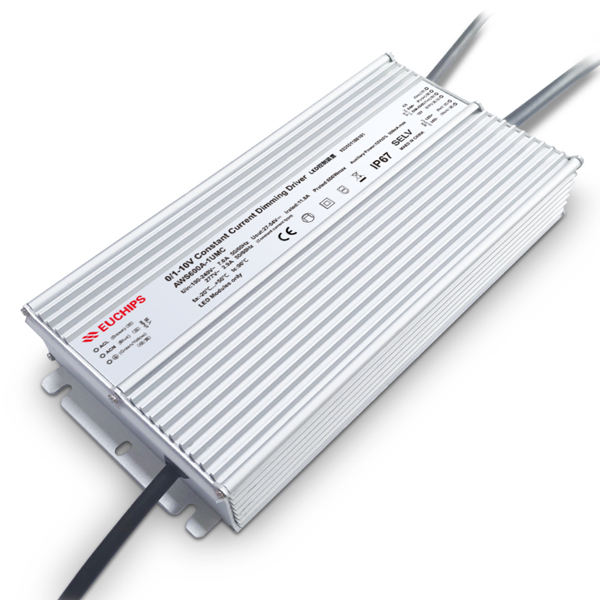

600W 11.8A 0/1-10V Waterproof CC Driver AWS600A-1UMC

Short Description:

Item No.: AWS600A-1UMC
Input Voltage: 100VAC-277VAC
Output Power: 600W

Product Detail

Product Tags

600W 11.8A*1ch CC 0/1-10V Driver AWS600A-1UMC

AWS600A-1UMC is a LED driver with adjustable output current , can adjust the current through Potentiometer ,support 0-10V active signal /adjust resistance/ PWM signal , can be used as normal driver when signal suspending.

Feature

1. Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM).

2. Wide input voltage of 100VAC ~ 277VAC.

3. High efficiency up to 94%

4. IP Rating: IP 67.

5. Built-in active PFC function.

6. 100% output when no dimming signal input, can be used as normal power supply.

7. Protections: Short circuit, Over load, Over Voltage.

8. Suitable LED lighting application, such as down light, panel light, and so on.

Technical Parameters

Model	AWS600A-1UMC
Input	Efficiency	94%@230VAC,Full load
	Voltage	100VAC-277VAC
	Frequency Range(Hz)	50/60Hz
	Power Factor	≥0.95@230VAC,Full load
	THD(full load)	<15%@230VAC, Full load
	Standby Power	≤2W
	AC Current(max)	7Amax@100VAC
	Inrush Current(max)	Cold start,100A@230VAC 100us
Output	Current(A)	11.8A(Optional current: 5A/6A/7A/8A/9A/10A/11A/11.8A)
	Voltage (VDC)	27-54VDC
	Power(W)	600W
	Channel	1
	Current Tolerance	±5%
	No load output voltage	60V Max
	Turn on delay Time	<0.75s, at230Vac (When the light begins to shine)
	Auxiliary Power	12V±5% 300mA max 3.6W
Functions	Dimming Type	0/1-10V
Functions	Dimming Range	5%-100%
Protections	Short Circuit	after fault removed Close output ,the output current recovers automatically
	Over Voltage	Reduced current hiccup protection
	Over Load	Reduced current hiccup protection
Safety &EMC	Surgy	L-N 6KV L-PE 10KV N-PE 10KV
	Withstand Voltage	I/P-O/P: 3000Vac/1min/<10mA I/P-GND:1500Vac/1min/<10mA O/P-GND:500Vac/1min/5mA O/P-DIM( Signal port ):1500Vac/1min/<5mA
	Safety Standards	EN61347, GB19510
	EMC Eission	EN50515, EN61000-3-2
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Others	Working Temp.	-20℃~50℃
	Storage Temp., Humidity	-40℃~85℃, 20-90%RH
	tc	90℃
	Material	Metal
	IP Rating	IP67
	Lifetime	50,000h@tc:70℃
	Warranty Condition	5 years
	Switch Cycle	>25,000 times
	Packing(weight)	Net weight: 2850g±5%/PCS; 5PCS/Carton; 14.7kg±5%/Carton; Carton Size:300320168mm(LWH)
	Dimension	27113150mm(LWH)
