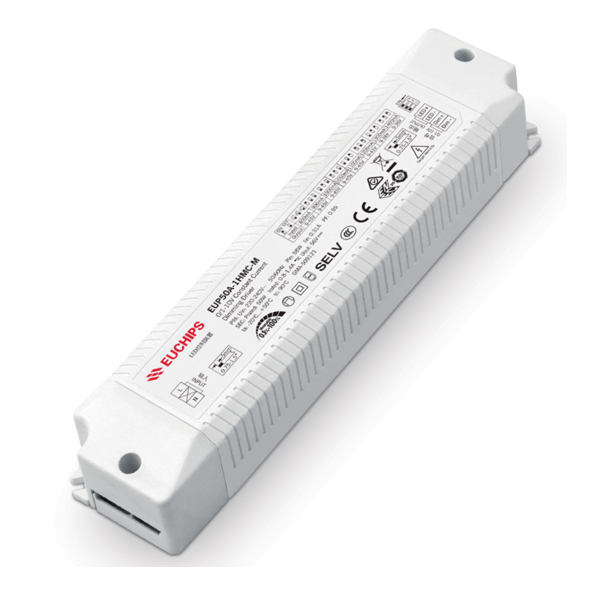

50W 800~1400mA*1ch 0/1-10V CC Driver EUP50A-1HMC-M
50W 800~1400mA*1ch 0/1-10V CC Driver EUP50A-1HMC-M
EUP50A-1HMC-M is a constant current output mode LED driver. Support 0/1-10V Dimming function. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.
Features
·Single channel constant current output
·Support 0/1-10V Dimming function
·Dimming range: 0.1-100%，Dimming effect smooth, no flicker
·Protections: Short circuit, Over load
·Suitable for indoor LED lighting application
Technical Parameters
| Model | EUP50A-1HMC-M | |
| Input | Efficiency | ≥88%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.95@230VAC, Full load | |
| THD(full load) | <10%@230VAC | |
| AC Current(max) | 0.31Amax@230VAC | |
| Standby power | <0.5W | |
| Inrush Current(max) | Cold start, <30A@230VAC | |
| Output | Current/Voltage/Power | 800mA/9-45V/36W 1000mA/9-45V/45W 1100mA/9-45V/49.5W 1300mA/9-38V/49.4W900mA/9-45V/40.5W 1050mA/9-45V/47.25W 1200mA/9-41V/49.2W 1400mA/9-36V/50.4W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Turn on delay Time | <1s, at 230Vac | |
| Function | Dimming Type | 0/1-10V DIM/RX/PWM |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Short Circuit | Connect the LED power positive output and LED negative output terminal, together |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Safety & EMC | Surge | L-N>1KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/10mA; | |
| Safety Standards | EN61347-1, EN61347-2-13 | |
| EMC Eission | EN55015, EN61000-3-2, EN61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 | |
| Others | Working Temp., Humidity | -20°C~50°C, 20-50%RH |
| Storage Temp., Humidity | -40°C~85°C, 5-70%RH | |
| Tc | 90°C | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80°C | |
| Warranty Condition | 5 Years | |
| Switch Cycle | >25,000 tims | |
| Pack Information | Net weight: –g±5%/PCS; 50PCS/Carton; –kg±5%/Carton; Carton Size: 430*306*168mm(L*W*H) | |
| Dimension | 185*42.5*28.5mm(L*W*H) | |
