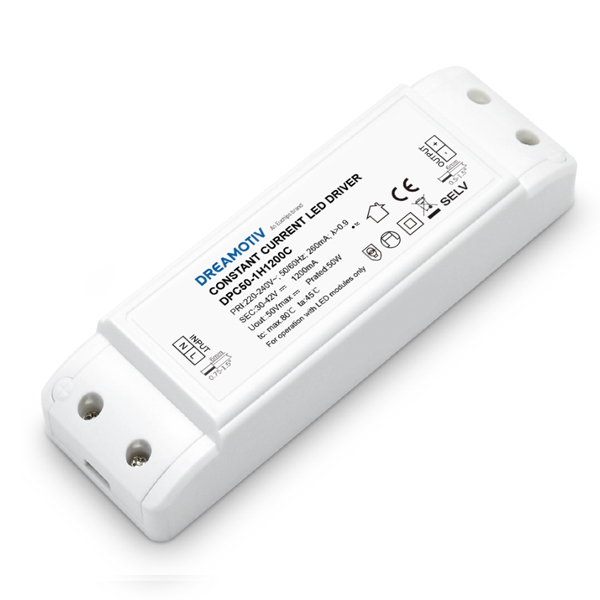

50W 1200mA Non-dimmable CC Driver DPC50-1H1200C
50W 1200mA Non-dimmable CC Driver DPC50-1H1200C
Features
· Constant current driver No-Flicker
· Active power factor correction (PF>0.99)
· High efficiency, long life and high reliabilit
· Protection : short circuit /OLP/OVP
· Suitable for LED lighting
Technical Parameters
| Model | DPC50-1H1200C | |
|
Input |
Efficiency | >85%@220VAC,Full load |
| Voltage | 220VAC-240VAC (Allowable Voltage: 180VAC-254VAC) | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.99@220VAC,Full load | |
| THD(full load) | <15%@220VAC, Full load | |
| AC Current(max) | 0.66Amax@220VAC | |
| Standby power | <0.5W | |
| Inrush Current(max) | 25A@220VAC | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 1200mA/25-42VDC/50.4W |
| Ripple Current | <5% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No load output voltage | 50V Max | |
| Turn on delay Time | <1s, at 220Vac | |
|
Protection |
Short Circuit | Close output, recovers automatically after fault removed |
| Over Voltage | Close output, recovers automatically after fault removed | |
| Output Open Circuit | Output Voltage<50Vdc | |
| Over Temperature | Shut down the output, recovers automatically when temp. back to normal. | |
|
Safety& EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN55015/EN61000-3-3 part15 standards | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 | |
|
Others |
Working Temp. | -20℃~45℃ |
| Storage Temp., Humidity | -30℃~65℃, 20-90%RH | |
| tc | 80℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:70℃ | |
| Warranty Condition | 3 Years | |
| Weight | Net weight: 92g±5% | |
| Dimension | 159*50*35mm（L*W*H） | |
