50W 1050~1400mA*1ch DALI CC Driver EUP50D-1HMC-0
50W 1050/1100/1150/1200/1250/1300/1350/1400mA Constant Current DALI Driver EUP50D-1HMC-0(DALI-2)

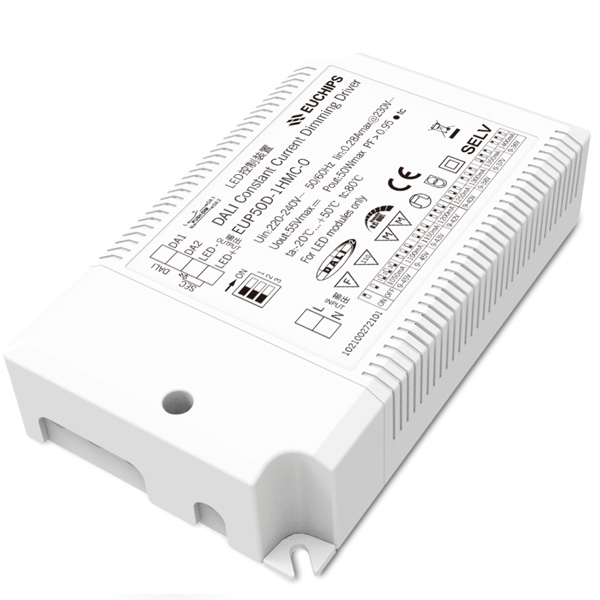

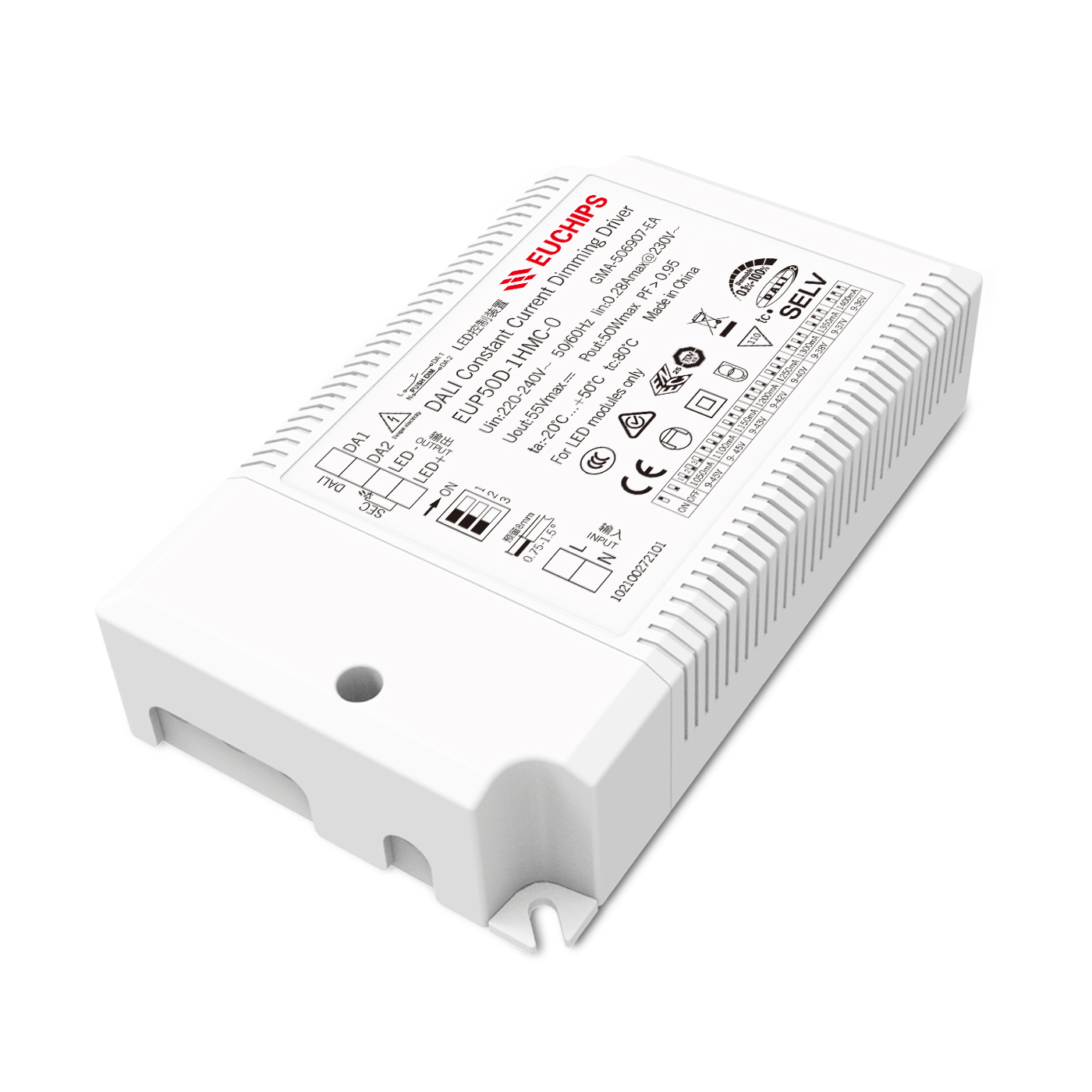

EUP50D-1HMC-0 is a 50W AC/DC constant current mode output LED driver featuring the
multiple levels selectable by DIP switch and complies with DALI standard protocol IEC
62386. EUP50D-1HMC-0 can be connected to DALI main controller or Touch DIM(Push DIM)
to achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-207 Ed 2.0
3. Support Touch DIM (Push DIM)function
4. High efficiency up to 88%
5. Built-in active PFC function
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over voltage
8. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameter
| Model | EUP50D-1HMC-0 | ||
| Input | Efficiency | 88%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC,Full load | ||
| THD(full load | <10%@230VAC, Full load | ||
| AC Current(max) | 0.28Amax@230VAC | ||
| Standby power | <0.5W | ||
| Inrush Current(max) | Cold start,40A(twidth=12.8us measured at 50% Ipeak)@230VAC | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) |
1050mA/9-45VDC/47.25W1100mA/9-45VDC/49.5W1150mA/9-43VDC/49.45W1200mA/9-42VDC/50.4W1250mA/9-40VDC/50W1300mA/9-38VDC/49.4W
1350mA/9-37VDC/49.95W 1400mA/9-36VDC/50.4W |
|
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No load output voltage | 55V Max | ||
| Turn on delay Time | <1.5s, at230Vac | ||
| Function | Dimming Mode | DALI /Touch DIM(Push DIM) | |
| Protection | Short circuit | Close output，recovers automatically after fault removed | |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | ||
| Over Voltage | The output current decreases and, recovers automatically when the load is reduced. | ||
| Safety&EMC | Surge | L-N:1kv | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| Safety standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14, | ||
| EMC Emission | EN50515,EN61000-3-2 Class C,IEC61000-3-3,GB/T17743 | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 80℃ | ||
| Material | ABS | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:80℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >100,000 times | ||
| Packing Size | Net weight: 225g±5%/PCS; 50PCS/Carton; 11.75kg±5%/Carton; Carton Size: 517*337*179mm(L*W*H) | ||
| Dimension | 137*82*31mm(L*W*H) | ||
