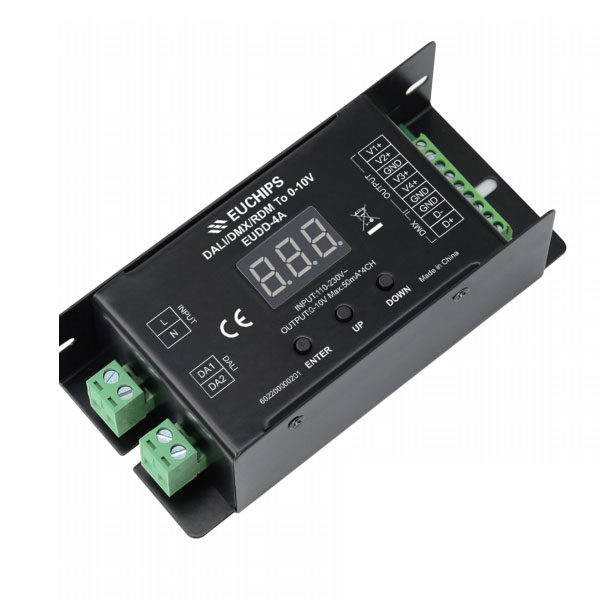

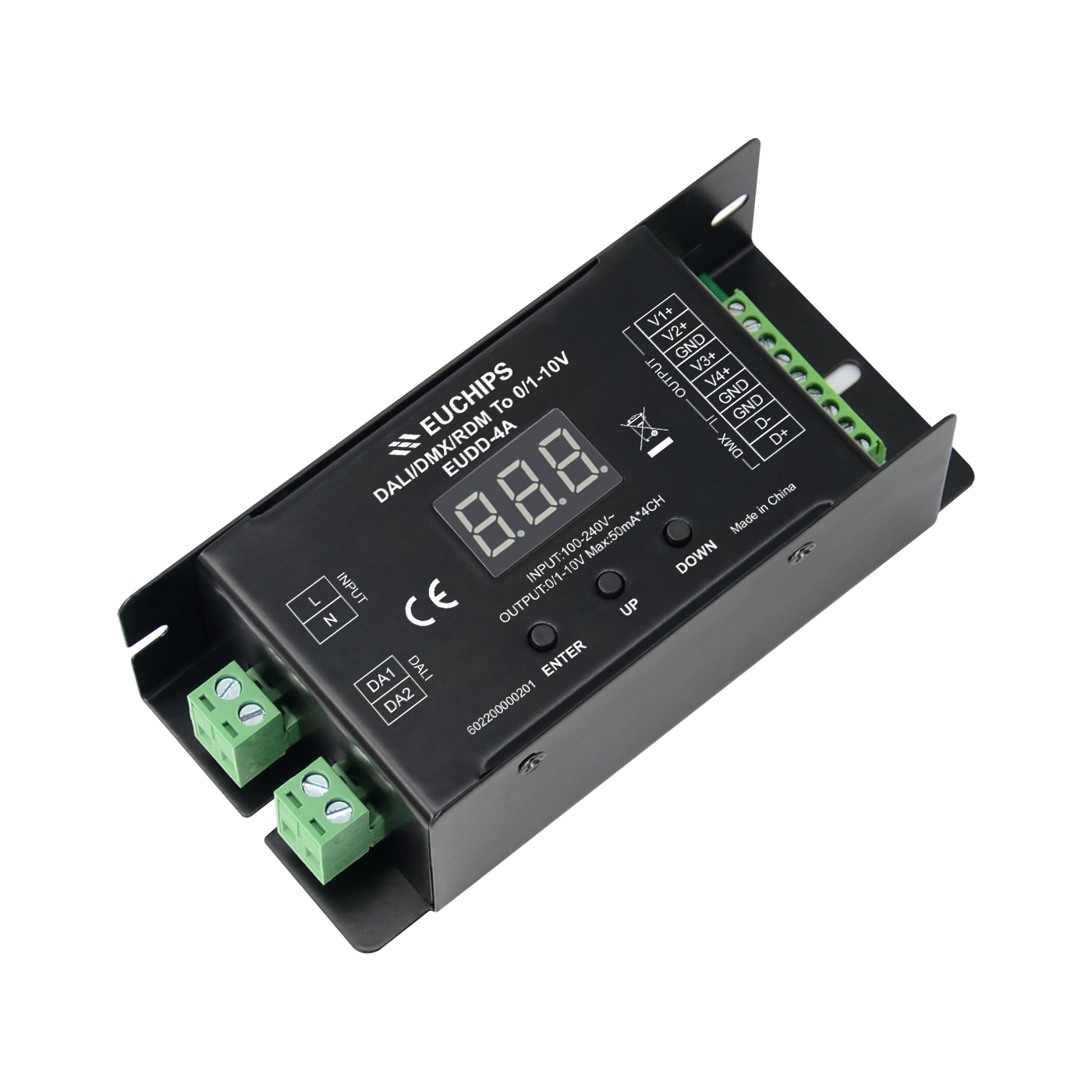

50mA*4ch DALI/DMX Low Voltage Driver EUDD-4A
50mA*4ch DALI/DMX Low Voltage Driver EUDD-4A
Features
1. DALI/DMX digital control input, dimming control 0-10V driver
2. DALI/DMX address manual setting and free addressing
3. DALI/DMX two modes freely switch.
4. Short circuit protection, Over load protection
5. For different tuning drive, the minimum value can be set freely 6. 4 channel maximum 200mA output
Technical Parameters
| Model | EUDD-4A | |
| Input | Voltage | 110-230V AC |
| Standby power | <1W | |
| Power | 6W max | |
| Signal | DALI/DMX | |
| Output | Current | 50mA*4 |
| Voltage | 10VDC | |
| Power | 2W | |
| Channel | 4 | |
| Voltage Tolerance | <1% | |
| Function | Dimming Type | DALI/DMX to 0/1-10V Constant Current Decoder |
| Protection | Short Circuit | recovers automatically after fault removed |
| Over Load | When the load exceeds 50mA, the output voltage drops, the load is reduced, and the automatic recovery | |
| Others | Working Temp. | -20℃~50℃ |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000times | |
| Packing(weight) | Net weight: 230g±5%/PCS; 50PCS/Carton; 11.5kg±5%/Carton; Carton Size: 301*257*215.5mm(L*W*H) | |
| Dimension | 116*54*35mm(L*W*H) | |
