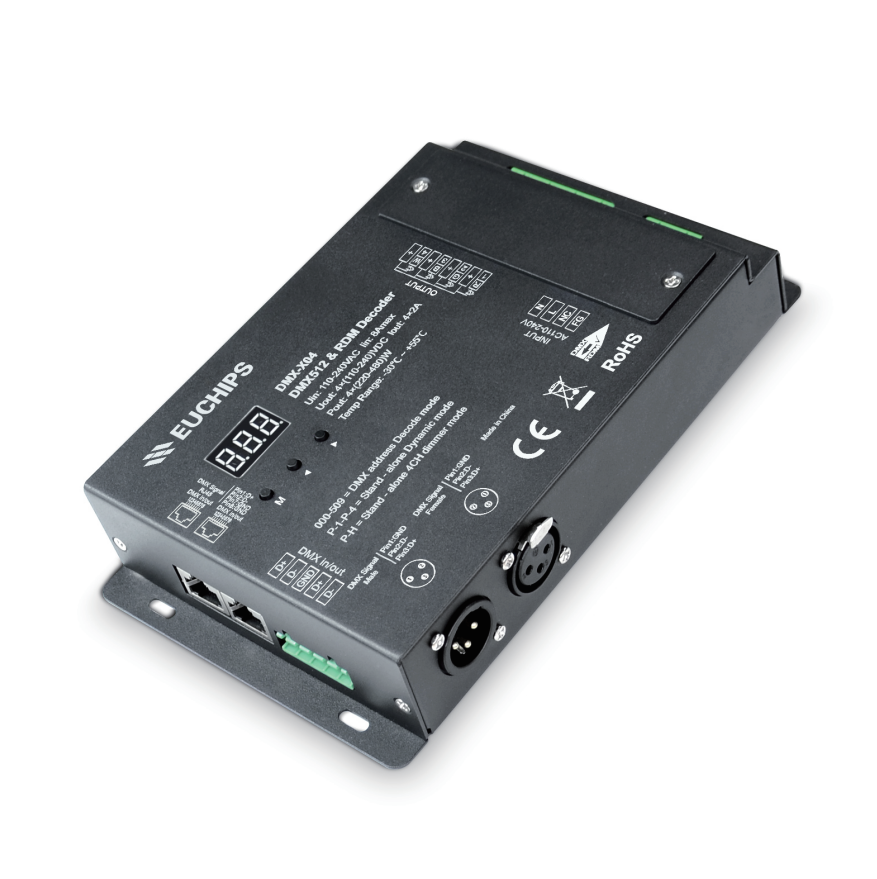

4ch DMX512 & RDM Decoder DMX-X04
4ch DMX512 & RDM Decoder DMX-X04
Features
· Comply with the DMX512 standard protocols.
· Digital numeric display, set DMX decode start address by buttons.
· RDM function can realize intercommunication between DMX master and decoder. For example, DMX decoder address can be set by DMX master console.
· 1/2/4 DMX channel output selectable.
· PWM frequency: 1000Hz / 2000Hz / 4000Hz / 8000Hz selectable.
· Logarithmic or linear dimming curve selectable.
· Standalone dynamic mode and 4-channel dimmer mode selectable, which can be controlled by buttons with built-in programs, instead of DMX signals.
· Green terminal, XLR3 and RJ45 port DMX signal input.
Technical Parameters
| Model No. | DMX-X04 | |
| Input | Voltage | 110-240VAC |
| Current | 8A | |
| Output | Voltage | 4 x 110/240VDC |
| Current | 4CH, 2A/CH | |
| Power | 4 x 220-480W | |
| Safety and EMC | EMC standard | ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4 |
| Safety standard (LVD) | EN 62368-1:2020+A11:2020 | |
| Certification | CE, EMC, LVD | |
| Environment | Operation temperature | -30°C ~ +55°C |
| Case temperature (Max) | Tc:+85°C | |
| IP rating: IP20 | IP20 | |
| Warranty and Protection | Warranty | 5 years |
| Protection | Overload | |
