45W 500~1400mA*1ch DALI&0/1-10V CC Driver PSP45AD-1HMC
45W 500~1400mA DALI&0/1-10V CC Driver PSP45AD-1HMC

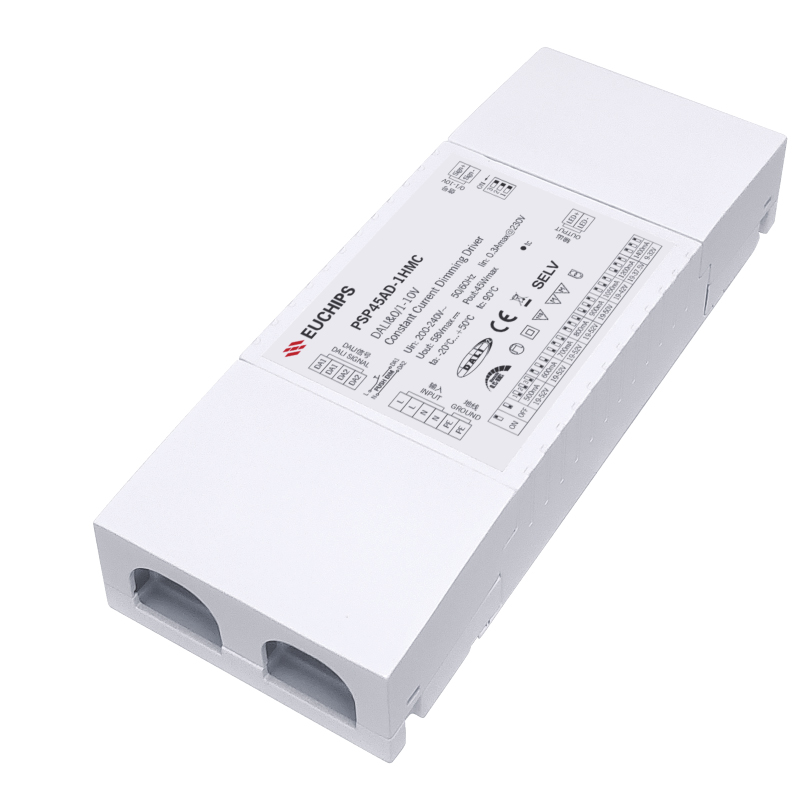

PSP45AD-1HMC is a constant current output mode LED driver. Support DALI dimming
function, Touch DIM (Push DIM) function, 0/1-10V Dimming function. The output and dimming
circuit are also completely in accordance with the new regulations with isolation to
ensure the users and luminaire system during installation.
Features
1. Single channel output, output current level selectable via DIP S.W.
2. Support DALI dimming function, Touch DIM (Push DIM) function, 0/1-10V Dimming function
3. Dimming range: 0.1-100%，Dimming effect smooth, no flicker
4. Protections: Short circuit, Over load, Over voltage, No Load
5. Suitable for indoor LED lighting application
Technical Parameters
| Model | PSP45AD-1HMC | |
| Input | Efficiency | ≥88%@230VAC, Full load |
| Voltage | 200VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Facto | ＞0.96@230VAC, Full load | |
| THD(full load) | <10%@230VAC | |
| AC Current(max) | 0.25Amax@230VAC | |
| Standby power | <1W | |
| Inrush Current(max) | Cold start, 15A@230VAC | |
| Output | Current/Voltage/Power | 500mA/19-52V/26W 600mA/19-52V/31.2W 700mA/19-52V/36.4W 800mA/19-52V/41.6W 900mA/19-50V/45W 1050mA/19-42V/44.1W 1050mA/19-42V/44.1W 1400mA/19-32V/44.8W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| Voltage Range | 19-52V | |
| Turn on delay Time | <0.5s, at 230Vac | |
| Function | Dimming Type | 0/1-10V DIM/PWM/Rx/DALI/Touch DIM (Push DIM) |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Short Circuit | Close output, recovers automatically after fault removed |
| No Load | Stand by | |
| Over Load | hiccup, recovers automatically after fault removed | |
| Over Voltage | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Safety & EMC |
Surge | L-N:1KV L&N-G: 2KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/10mA; I/P-E: 1875VAC/1min/10mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 2.0 | |
| Safety Standards | EN61347-1, EN61347-2-13 | |
| EMC Eission | EN55015, EN61000-3-2, EN61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 | |
| Others | Working Temp., Humidity | -20℃~50℃, 20-50%RH |
| Storage Temp., Humidity | -40℃~85℃, 5-70%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 Years | |
| Switch Cycle | >25,000 tims | |
| Packing(weight) | Net weight: 288g±5%/PCS; 40PCS/Carton; 12.02kg±5%/Carton; Carton Size: 422x296x183mm(L*W*H) | |
| Dimension | 180*70*32mm(L*W*H)/Independent, 120*70*32mm(L*W*H)/Build-in | |
