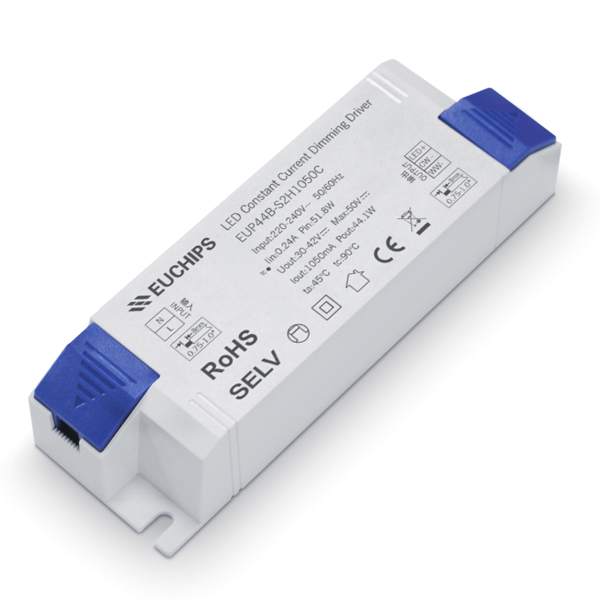

44W 1050mA 2.4G CC Driver EUP44B-S2H1050C
44W 1050mA 2.4G CC Driver EUP44B-S2H1050C
Features
· 2.4G wireless dimming and dimming temperature.
· Wireless control, no wiring and installation of other controllers, low cost.
· Two output, common anode (positive).
· Constant current output.
· Three year warranty.
· Compatible with remote control, panel, mobile phone and other control methods.
· This product can be divided into two schemes: CE certification and ordinary.
Applications
Residential lighting, office lighting, commercial lighting, light band
Function
Use remote control or panel control to adjust the color temperature and brightness of the light, and realize diversified lighting intelligent scene.
· It can adjust the light color temperature and brightness through mobile app Internet platform to realize diversified intelligent scenes.
· The scene mode can be controlled by intelligent audio and other artificial intelligence devices.
· It can be controlled by the central system through the network.
· The output current of the power supply can be set through the remote control, in the range of 50% – 100%.
· You can set the power supply monotonous light (1 output) or dimming temperature (2 output) through the remote control.
· Short circuit protection
· No load protection
· Surge protection voltage 2KV
Technical Parameters
| Model | EUP44B-S2H1050C |
| Rated Input Voltage | 220-240VAC |
| Maximum Input Current | 250mA |
| Power Frequency | 50-60HZ |
| Output Voltage | 30-42V |
| Output Current Range | 1050mA |
| Dimming Range | 15%-100% |
| Efficiency | ≥85% |
| Power Factor Full Load | ≤0.6 |
| Life | 20000 times |
| Ambient Temperature Ta | -10°C…+55°C |
| Storage Temperature Ts | -20°C…+80°C |
| Size | 140*45*30mm |
| Storage Temperature | -20°C…+85°C |
RF-2.4G Parameters
| Control Distance | 30 m barrier free |
| Agreement | RF-2.4G |
| Frequency Range | 2402Mhz… .2482Mhz |
| Modulation Mode | GFSK |
| Antenna Model | Integrated antenna |
| Number Of Antennas | one |
| Antenna Gain | 0dBi |
The following are the general product details of EUP44B-S2H1050C:
| Input
Voltage |
Max Input
Current |
Input
Power |
Output
Voltage |
Max Output
Current |
Output
Power |
Max Output
Voltage |
| 220-240V~ | 222mA | 49W | 30-42VDC | 1000mA | 42W | 50VDC |
| 220-240V~ | 235mA | 51.8W | 30-42VDC | 1050mA | 44W | 50VDC |
| 220-240V~ | 247mA | 54.4W | 30-42VDC | 1100mA | 46.2W | 50VDC |
Packaging parameters
| Net weight | 90g/PCS |
| Packing quantity | 100pcs/carton |
| Container capacity | 9.1kg/carton |
| Outer box size | 35×30 ×22cm |
The data is for reference only, and the specific data is subject to the customer’s packaging requirements.
