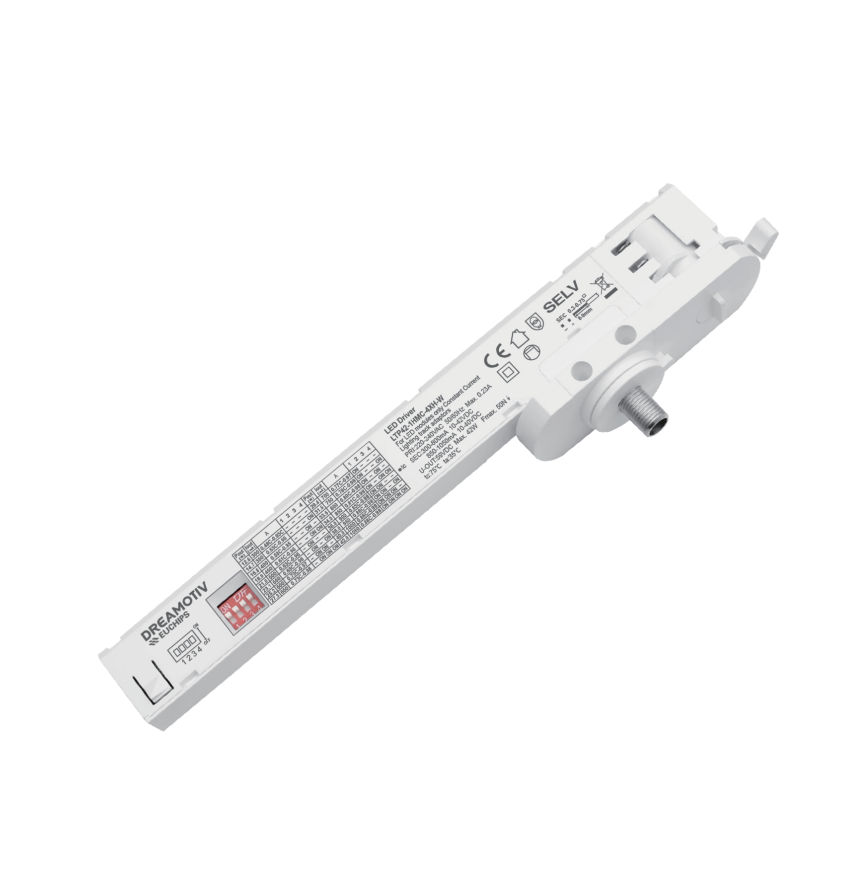

42W 300~1050mA Non-dimmable CC Driver LTP42-1WMC-4X-W B G
42W 300~1050mA Non-dimmable CC Driver LTP42-1WMC-4X-W B G
Features
· The housing is made from V0 flame retardant PC materials from COVESTRO.
· Small size and light weight. Wide range of applicable lamps.
· Class 2 LED driver, Safety Extra Low Voltage (LVLE).
· Innovative thermal management technology intelligently protects the life of the LED driver.
· Overheat, overload, short circuit protection and automatic recovery.
· Up to 50,000-hour life time.
· 5-year warranty (AiSHi capacitor).
Technical Parameters
Model | LTP42-1HMC-4XH-W LTP42-1HMC-4XH-B LTP42-1HMC-4XH-G | ||||
Input |
Efficiency | ≥88%@120VAC, ≥89%@230VAC, ≥89%@277VAC, full load) | |||
Rated Input Voltage | 120VAC-277VAC | ||||
Range of Input Voltage | 100-305VAC | ||||
Range of D C Input Voltage | 180 -280VDC | ||||
Frequency Range(Hz) | 50/60Hz | ||||
Power | ≤48.27W (120VAC, full load) | ||||
Power Factor | ≥0.99 (120VAC, full l oad) | ||||
THD | ≤10% (120VAC, full load) | ||||
Overvoltage protection | 2h@380VAC, 48h@320VAC | ||||
Input Current | ≤0.41A (120VAC, full load) | ||||
No-load Power Consumption | ≤0.5W @230VAC | ||||
Inrush Current | ≤9.5A/16us (120VAC,full load) | ||||
Connected quantity of 10A Breaker
Connected quantity of 16A Breaker
Connected quantity of 20A Breaker
|
21pcs/type A ;33pcs/type B ;53pcs/type C@230Vac
33pcs/type A ;53pcs/type B ;84pcs/type C@230Vac
41pcs/type A ;66pcs/type B ;105pcs/type C@230Vac
|
||||
Output | Current(mA)/Voltage (VDC)Power(W) |
300mA/10-42V/3.00-12.60W 350mA/10-42V/3.50-14.70W
400mA/10-42V/4.00-16.80W 450mA/10-42V/4.50-18.90W
500mA/10-42VV/5.00-21.00W 550mA/10-42V/5.50-23.10W
600mA/10-42V/6.00-25.20W 650mA/10-42V/6.50-27.30W
700mA/10-42V/7.00-29.40W 750mA/10-42V/7.50-31.50W
800mA/10-42V/8.00-33.60W 850mA/10-40V/8.50-34.00W
900mA/10-40V/9.00-36.00W 950mA/10-40V/9.50-38.00W
1000mA/10-40V/10.00-40.00W 1050mA/10-40V/10.50-42.00W
|
|||
No Load Voltage | 59VDC Max. | ||||
Current Ripple(< 120 Hz) | ±5% (Imax-Imin)/(Imax+Imin) | ||||
PstLM | ≤1 | ||||
SVM | ≤0.4 | ||||
Current Accuracy | ±5% | ||||
Started Delay Time | ≤0.5S@277VAC, ≤1S@120VAC | ||||
Protection |
Short Circuit Protection | Auto Recovery | |||
Overload Protection | Auto Recovery (not be hot swap) | ||||
No-load Protection | Auto Recovery | ||||
Insulation voltage | 3000V 5mA 60S between P-S | ||||
Insulation resistance | >100M ohm @ 500VDC | ||||
Leakage current | < 250µA, I/P to O/P or I/P to PE @120V input | ||||
Standards | Safety Standards | UL8750 | |||
EMC Standards | FCC PART 15B | ||||
Performance | EN62384 | ||||
Surge | L-N/2KV | ||||
Environment |
Ta/Operation Temperature | -25….+35℃ | |||
Ts/Storage Temperature | -25….+70℃ | ||||
Tc/Enclosure Temperature | 70℃ | ||||
Humidity | 10%. 90%RH | ||||
Atmosphere | 86-108KPa | ||||
Construction |
Connection Method | Push-in Terminal | |||
Installation | Independent | ||||
SEC Wire preparation | 0.5-1.5² | ||||
Dimension | 217.7*31.1*42.2mm (L*W* H) | ||||
Others | RoHS | Complied to 2011/65/EU | |||
Life Time | 50000h Tc=75℃ 75000h Tc=70℃ 100000h Tc=65℃ | ||||
Warranty | 5years, F.R. <10000ppm | ||||
Remark | 1. All Parameters, if not specified, are measured at 230VAC/50Hz and 25℃ ambient temperature. 2. LED Driver is a component of the luminaires, Luminaires and wire layout will affect the EMC, please check the EMC with end products again. |
