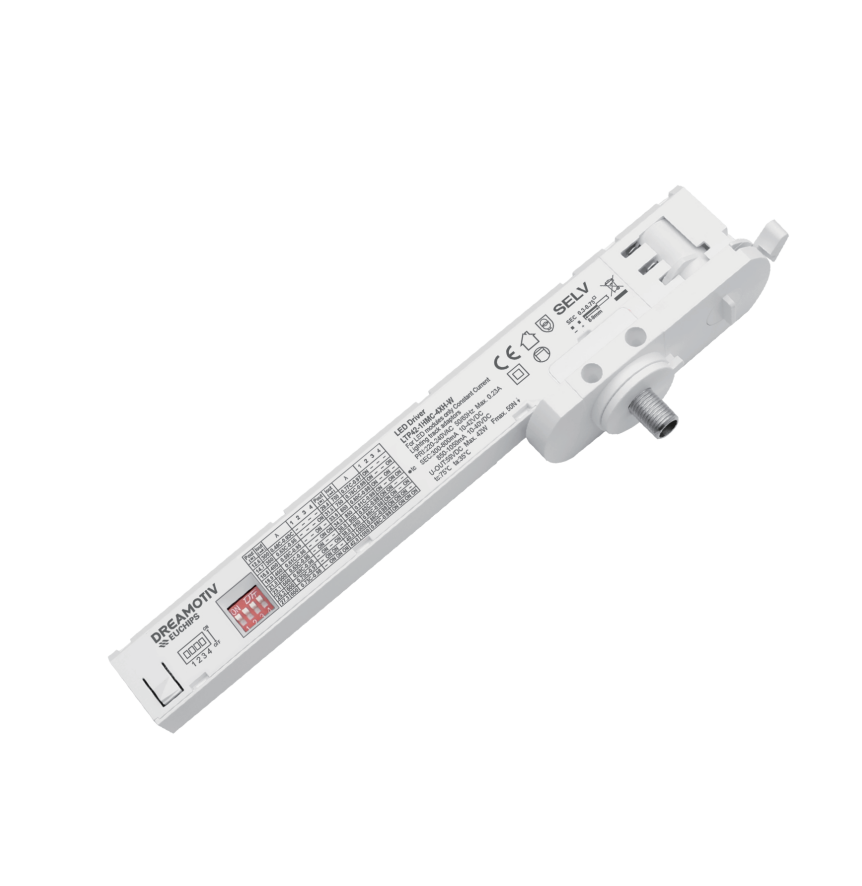

42W 300~1000mA Non-dimmable CC Driver LTP42-1HMC-4XH-W B G

Short Description:

Item No.: LTP42-1HMC-4XH-W B G
Output Power: 42W

Product Detail

Product Tags

42W 300~1000mA Non-dimmable CC Driver LTP42-1HMC-4XH-W B G

Features

· The housing is made from V0 flame retardant PC materials from COVESTRO.
· Small size and light weight. Wide range of applicable lamps.
· Class 2 LED driver, Safety Extra Low Voltage (LVLE).
· Innovative thermal management technology intelligently protects the life of the LED driver.
· Overheat, overload, short circuit protection and automatic recovery.
· Up to 50,000-hour life time.
· 5-year warranty (AiSHi capacitor).

Technical Parameters

Model	LTP42-1HMC-4XH-W LTP42-1HMC-4XH-B LTP42-1HMC-4XH-G
Input	Efficiency	≥89%, (230VAC，full load)
	Rated Input Voltage	220VAC-240VAC
	Range of Input Voltage	198-264 VAC
	Range of D C Input Voltage	180 -280VDC
	Frequency Range(Hz)	50/60Hz
	Power	≤47.2W (230VAC, full load)
	Power Factor	≥0.95 (230VAC, full l oad)
	THD	≤10% (230VAC, full load)
	Overvoltage protection	2h@380VAC, 48h@320VAC
	Input Current	≤0.23A (230VAC, full load)
	No-load Power Consumption	≤0.5W @230VAC
	Inrush Current	≤9.5A/16us (230VAC，full load)
	Connected quantity of 10A Breaker Connected quantity of 16A Breaker Connected quantity of 20A Breaker	21pcs/type A ;33pcs/type B ;53pcs/type C@230Vac 33pcs/type A ;53pcs/type B ;84pcs/type C@230Vac 41pcs/type A ;66pcs/type B ;105pcs/type C@230Vac
	Current(mA)/Voltage (VDC)Power(W)	300mA/10-42V/3.00-12.60W 350mA/10-42V/3.50-14.70W 400mA/10-42V/4.00-16.80W 450mA/10-42V/4.50-18.90W 500mA/10-42VV/5.00-21.00W 550mA/10-42V/5.50-23.10W 600mA/10-42V/6.00-25.20W 650mA/10-42V/6.50-27.30W 700mA/10-42V/7.00-29.40W 750mA/10-42V/7.50-31.50W 800mA/10-42V/8.00-33.60W 850mA/10-40V/8.50-34.00W 900mA/10-40V/9.00-36.00W 950mA/10-40V/9.50-38.00W 1000mA/10-40V/10.00-40.00W 1050mA/10-40V/10.50-42.00W
	No Load Voltage	59VDC Max.
Output	Current Ripple(< 120 Hz)	±3% (Imax-Imin)/(Imax+Imin)
	PstLM	≤1
	SVM	≤0.4
	Current Accuracy	±5%
	Started Delay Time	≤0.5S (230VAC，full load)
Protection	Short Circuit Protection	Auto Recovery
	Overload Protection	Auto Recovery (not be hot swap)
	No-load Protection	Auto Recovery
	Insulation voltage	3000V 5mA 60S between P-S
	Insulation resistance	>100M ohm @ 500VDC
	Leakage current	< 700µA, I/P to O/P @230V input
Standards	Safety Standards	EN61347-1:2015/A1:2021; EN61347-2-13:2014/A1:2017; EN62384:2006/A1:2009; AS 61347.2.13:2018; AS/NZS61347.1:2016; BS EN61347-1:2015/A1:2021; BS EN61347-2-13:2014/A1:2017; IEC 61347-1-1:2015+A1:2017; IEC 61347-13:2014+A1:2016;
	EMC Standards	AS/NZS CISPR 15:2011；AS CISPR 15:2017 ;BS EN IEC 55015:2019+A11:2020;EN 61547:2009； BS EN IEC 61000-3-2:2019; BS EN IEC 61000-3-3:2013+A1:2019;
	Performance	EN62384
	Surge	L-N/2KV
Environment	Ta/Operation Temperature	-25….+35℃
	Ts/Storage Temperature	-25….+75℃
	Tc/Enclosure Temperature	75℃
	Humidity	10%. 90%RH
	Atmosphere	86-108KPa
Construction	Connection Method	Push-in Terminal
	Installation	Independent
	SEC Wire preparation	0.3-0.75²
	Dimension	212.731.936.4mm (LW H)
Others	RoHS	Complied to 2011/65/EU
	Life Time	50000h Tc=75℃ 75000h Tc=70℃ 100000h Tc=65℃
	Warranty	5years, F.R. <10000ppm
Remark	All Parameters, if not specified, are measured at 230VAC/50Hz and 25℃ ambient temperature. LED Driver is a component of the luminaires, Luminaires and wire layout will affect the EMC, please check the EMC with end products again.
