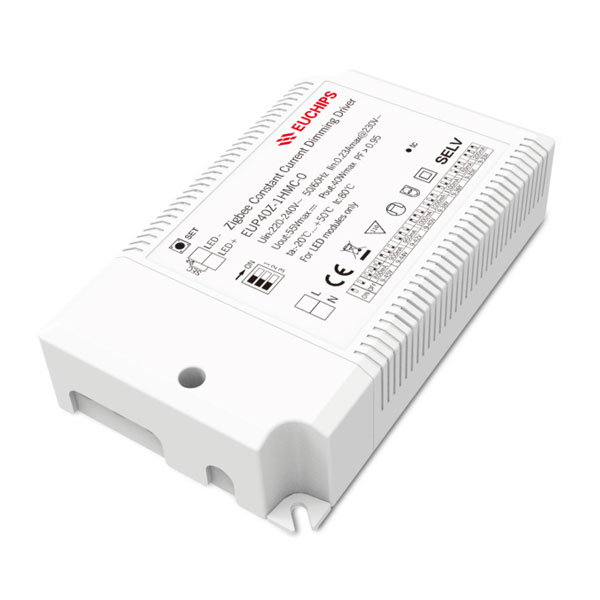

40W 850~1200mA*1ch Zigbee CC Driver EUP40Z-1HMC
40W 850~1200mA*1ch Zigbee CC Driver EUP40Z-1HMC
EUP40Z-1HMC is a product that can provide 850 / 900 / 950 / 1000 / 1050 / 1100 / 1150 / 1200Ma The output current of LED Driver with 8-level current can be easily set through dip dial switch Wireless dimming through ZigBee
Features
1. output current level selectable by DIP S.W.
2. Wide input voltage of 220VAC ~ 240VAC
3. High efficiency up to 88%
4. Built-in active PFC function
5. Protections: Over Voltage, Over Load, Short circuit
6. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP40Z-1HMC | |
| Input | Voltage | 220VAC-240VAC |
| Frequency Range | 50/60Hz | |
| Efficiency | ≥88%@230VAC, full load | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.23Amax@230VAC | |
| Inrush Current(max) | Cold start, 40A (twidth = 100US measured at 50% ipeak) @ 230VAC | |
| standby power | ≤1W | |
| No load power | ≤1W | |
| start delay | ≤ 0.75 s, at230Vac (When the light begins to shine) | |
| Output | Current / Voltage / Power | 850mA/9-45VDC/38.25W 900mA/9-44VDC/39.6W 950mA/9-42VDC/39.9W 1000mA/9-40VDC/40W 1050mA/9-38VDC/39.9W 1100mA/9-36VDC/39.6W 1150mA/9-35VDC/40.25W 1200mA/9-33VDC/39.6W |
| Voltage | 45V | |
| electric current | MAX 1.2A | |
| Output voltage range | 9-45V | |
| Dial switch | 850-12000MA | |
| Channel | 1 | |
| Current accuracy | 5% | |
| power40 | W | |
| Ripple current | <3% | |
| No load voltage | 55V | |
| Fuction | Dimming Type | Zigbee |
| Dimming Range | 1%-100% | |
| Dimming curve | linear | |
| Protection | Overvoltage | The current drops and the output is normal after troubleshooting |
| Over Load | Reduce the current burping protection, remove the fault, and the output is normal | |
| short circuit | There is no output due to short circuit. After troubleshooting, the output is normal | |
| Safety & EMC | Surge | L-N 2000VAC |
| Withstand voltage | Input to output 3750VAC / 1min / < 5mA | |
| safety standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| electromagnetic compatibility | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation impedance | 5MΩ | |
| Others | Waterproof grade | IP20 |
| working temperature | ta:-20℃~50℃ | |
| tc | 80℃@220Vac | |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| life | 50,000h@tc:80℃ | |
| Warranty | 5 Years | |
| texture of material | Plastic shell | |
| Switch Cycle | >25,000 tims | |
| Packing(weight) | Net weight: 220g ± 5% / PCS; 50PCS/Carton; 11.75kg ± 5% / box; Outer box size: 516*337*179mm | |
| Dimension | 151*42*28mm（L*W*H） | |
