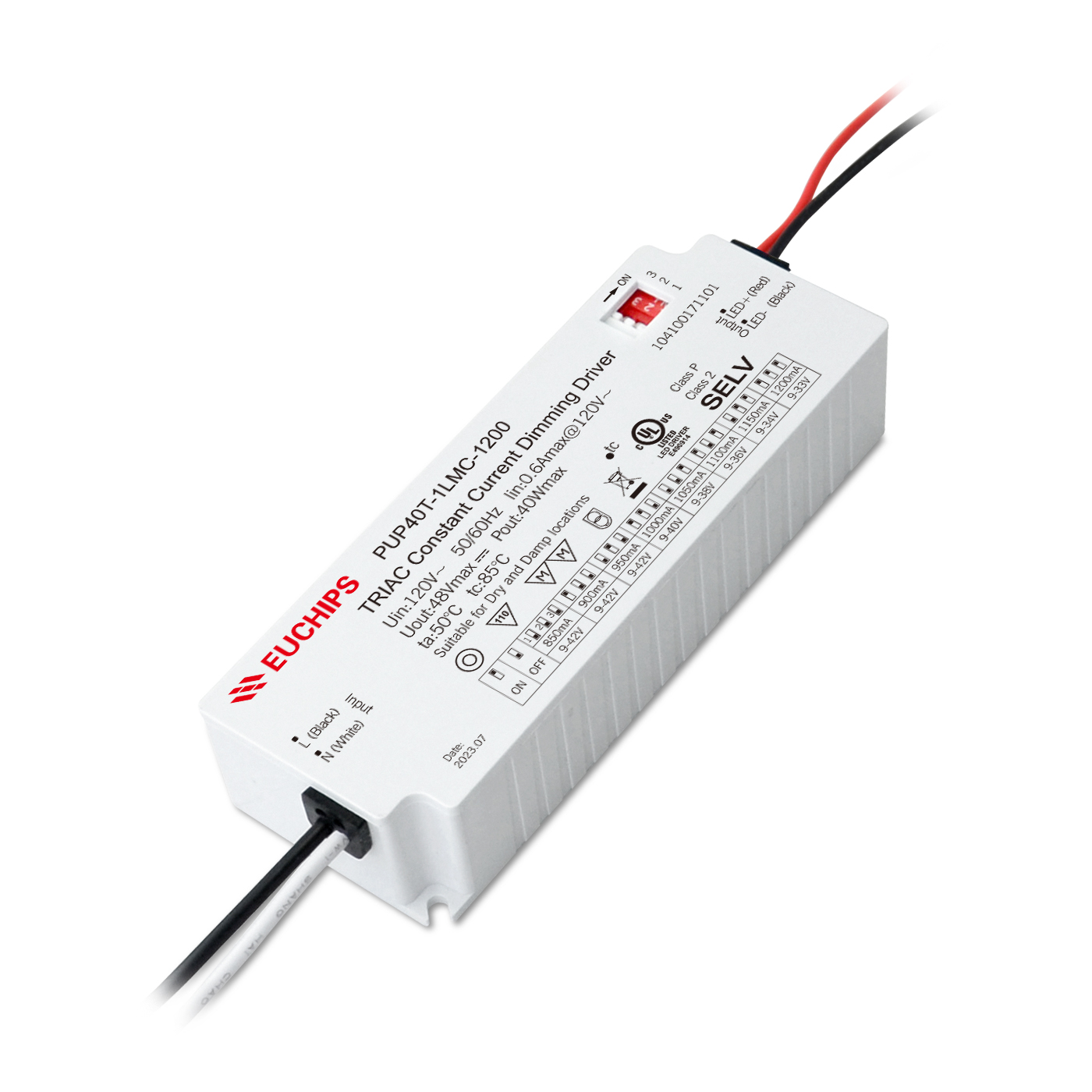

40W 850~1200mA*1ch Triac CC Driver PUP40T-1LMC-1200
40W 850~1200mA*1ch CV Driver PUP40T-1LMC-1200
PUP40T-1LMC-1200 is a constant current output mode LED driver.The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer
3. Built-in active PFC function
4. Class Ⅱ power supply. Full protective plastic housing
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, over voltage
7. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
Technical Parameters
| Model | PUP40T-1LMC-1200 | |
| Input | Efficiency | >83%@120VAC,1200mA ,Full load |
| Voltage | 120-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@120VAC,Full load | |
| THD(full load) | <10%@120VAC, Full load | |
| AC Current(max) | 0.6Amax@120VAC | |
| Inrush Current(max) | Cold start,30A@120VAC | |
| Output | Current(mA)Voltage (VDC)Power(W) 1200mA | 850mA/9-42VDC/35.7W 900mA/9-42VDC/37.8W 950mA/9-42VDC/39.99W 1000mA/9-40VDC/40W1050mA/9-38VDC/39.9W 1100mA/9-36VDC/39.6W 1150mA/9-34VDC/39.1W 1200mA/9-33VDC/39.6W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| Standby Power | <3.5W | |
| No load output voltage | 48V Max | |
| Turn on delay Time | <1.5s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | Triac |
| Dimming Range | 5%-100% Dimming to off | |
| Protection | Short Circuit | Close output，recovers automatically after fault removed. |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically. when the load is reduced. | |
| Over Voltage | Close output，recovers automatically after fault removed | |
| Safety& EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 85℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 tims | |
| Packing(weight) | Net weight: 156g±5%/PCS; 50PCS/Carton; 8.3kg±5%/Carton; Carton Size: 286x239x194mm (L*W*H) | |
| Dimension | 121*44*26.5mm（L*W*H） | |
