40W 850~1200mA*1ch 0/1-10V CC Driver PUP40A-1WMC-1200
40W 850~1200mA 0/1-10V Constant Current Driver PUP40A-1WMC-1200

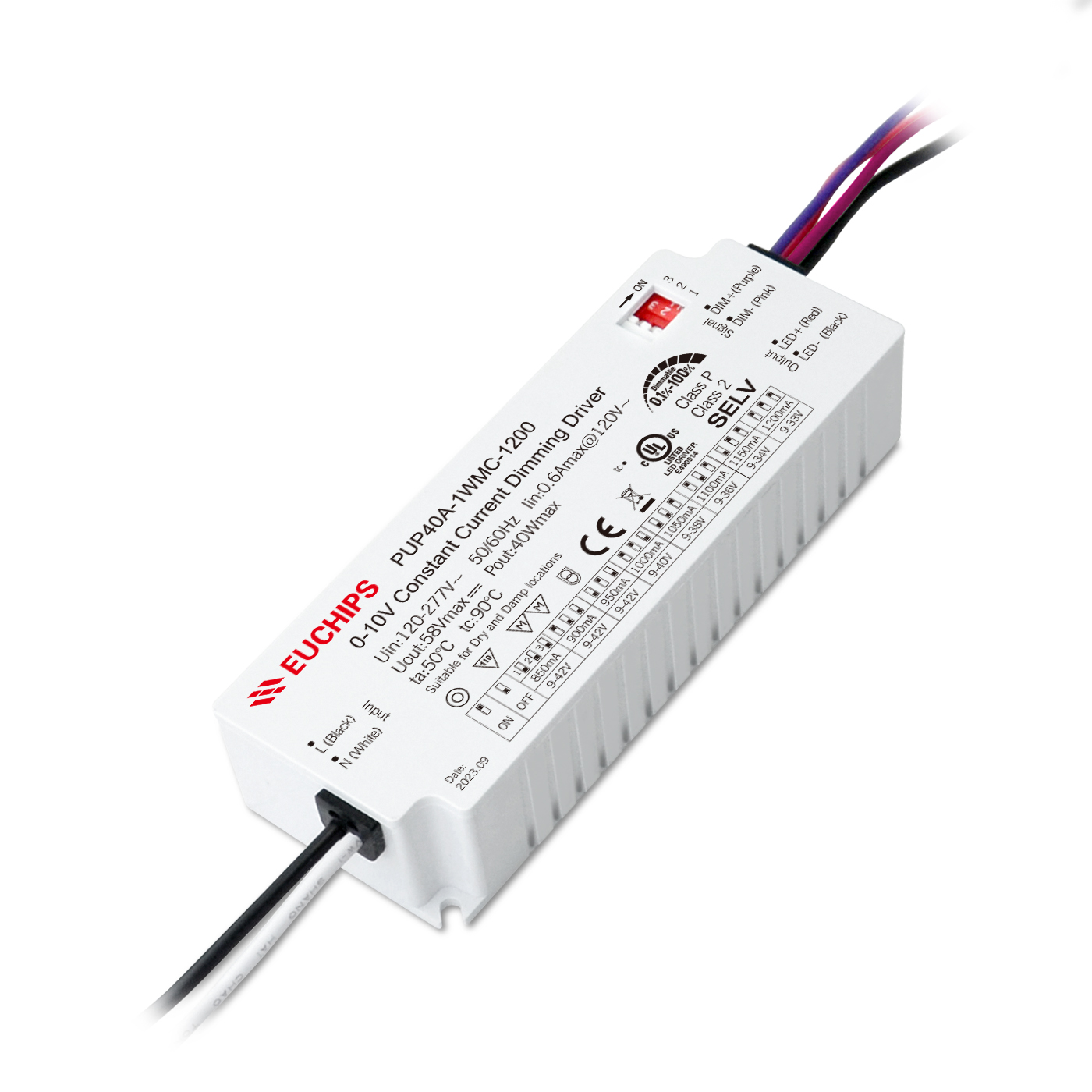

PUP40A-1WMC-1200 is a constant current output mode LED driver. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support 3-in-1 dimming mode: 0/1-10V active signal, adjustable resistance, PWM(A model)
3. Input voltage of 120VAC ~ 277VAC
4. Dimming range: 0.1-100%, Dimming effect smooth, no flicker
5. Protections: Short circuit, Over load，Over voltage
6. Suitable for indoor LED lighting application
Technical Parameters
| Model | PUP40A-1WMC-1200 | |
| Input | Voltage | 120VAC-277VAC |
| Frequency | 50/60Hz | |
| Efficiency | >87%@120VAC, Full load | |
| PF | ≥0.99@120VAC, Full load | |
| THD(full load) | <10%@120VAC, Full load | |
| Current | 0.6Amax@120VAC | |
| Inrush Current | Cold start,30A@120VAC | |
| Standby Power | <1W | |
| Output | Current/Voltage/Power | 850mA/9-42V/35.7W 900mA/9-42V/37.8W 950mA/9-42V/39.99W 1000mA/9-40V/40W 1050mA/9-38V/39.9W 1100mA/9-36V/39.6W 1150mA/9-34V/39.1W 1200mA/9-33V/39.6W |
| Channel | 1 | |
| No load output voltage | 58V Max | |
| Frequency | 1KHz Min PWM | |
| Current Accuracy | ±5% | |
| LF current ripple(<120Hz) | <3% | |
| Protection | Over Voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short circuit | Close output, recovers automatically after fault removed | |
| Safety& EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5m | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
| Others | Dimming type | 0/1-10V(Type A) |
| Dimming range | 0.1%-100% Dimming to off | |
| Dimension | 121*44*26.5mm(L*W*H) | |
| Pack Information | Net weight: 156g±5%/PCS; 50PCS/Carton; 8.3kg±5%/Carton; Carton Size: 286x239x194mm (L*W*H) | |
| IP rating | IP20 | |
| Working temp. | -20℃~50℃ | |
| tc | 90℃ | |
| Relative humidity | 20~90% RH | |
| Lifetime | 50,000h@tc:85℃ | |
| Material | PC | |
| Switch cycle | >25,000 times | |
