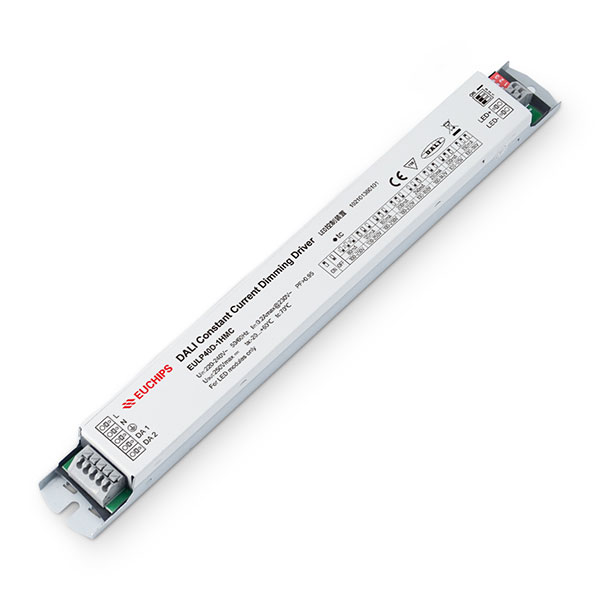

40W 80~350mA*1ch DALI CC Driver EULP40D-1HMC
40W 80/120/160/200/240/280/320/350mA DALI constant current led driver EULP40D-1HMC
EULP40D-1HMC is a 40W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386 EULP40D-1WMC can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Feature
1. Single channel output, output current level selectable by DIP S.W.
2. Support DALI software to adjust output current
3. Meet DALI protocol IEC 62386
4. Support touch dim function
5. High efficiency up to ≥93%
6. Built-in active PFC function
7. Logarithmic dimming，dimming effect smooth, no flicker
8. Protections: Short circuit, Over load, Over voltage
9. Suitable for indoor LED lighting application, vapor light, and so on
Technical Parameter
| Model | EULP40D-1HMC | ||
| Input | Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | ||
| Efficiency | ≥93%@230VAC, full load | ||
| PF | 0.95@230VAC, full load | ||
| AC Current(max) | 0.2Amax@220VAC | ||
| THD | < 10% @ 230VAC, full load | ||
| Inrush current(max) | Cold start, 28A@230VACC 240us | ||
| Standby power | <0.5W | ||
| No load power | <0.5W | ||
| Turn on delay Time | <0.5s, at230Vac (When the light begins to shine) | ||
| Output | Channel | 1 | |
| Current/Voltage/Power | 80mA/100-250V/20W 120mA/100-250V/30W 160mA/100-250V/40W 200mA/100-200V/40W 240mA/100-166V/39.84W 280mA/100-142V/39.76W 320mA/100-125V/40W 350mA/100-114V/39.9W |
||
| Current Accuracy | ±5% | ||
| No load output voltage | 250VDC max | ||
| Function | Dimming Type | DALI, Touch DIM | |
| Dimming Range | 1%-100% | ||
| Protection | Short circuit | Close output，recovers automatically after fault removed | |
| Over Load | No output, power off and restart. | ||
| Over Voltage | No output, power off and restart. | ||
| Safety& | |||
EMCSurgeL-N:1kV L/N-PE:2kVWithstand VoltageI-PE: 1500VAC/1min/5mA O-PE: 1500VAC/1min/5mASafety standardsEN61347, EN61347PerformanceEN50515, EN61000-3-2EMIEN55015, FCC Part 15 Class AOther EMCEN61000-3-3, EN61000-3-2, EN61547OthersWorking Temp.-20℃~60℃Storage Temp., Humidity-40℃~85℃, 20-90%RHtc70℃MaterialMetalIP RatingIP20Lifetime50,000h@tc: 70 ℃Warranty Condition5 yearsSwitch Cycle>25,000 timesPacking(weight)Net weight: TBDg±5%/PCS; 50PCS/Carton; TBDkg±5%/Carton; Carton Size:–*–*–mm(L*W*H) Dimension280*30*21mm（L*W*H）
